SIR Schematics

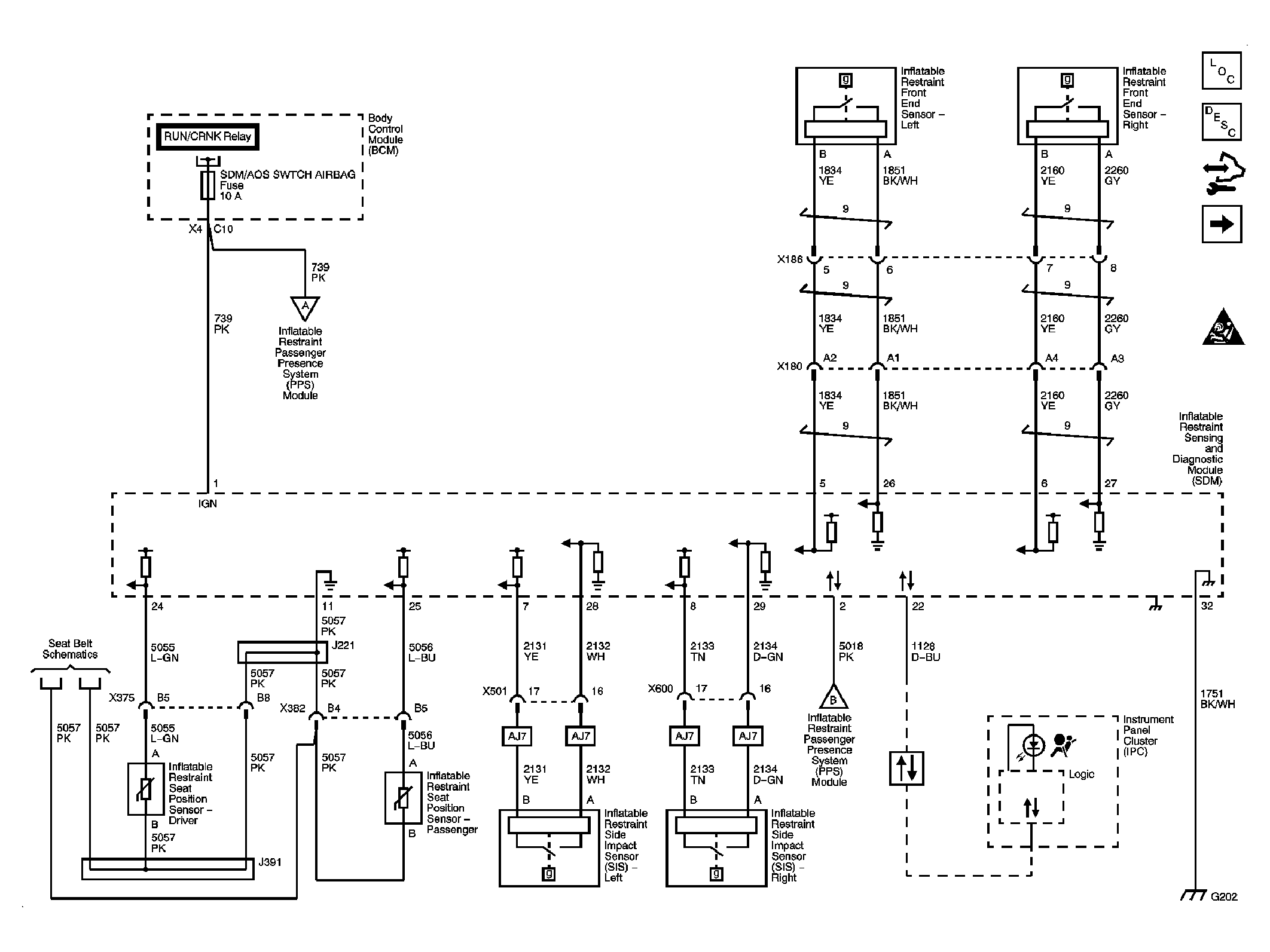

Fig 1: Power, Ground, Indicators, Sensors & Switches Circuit Schematic
GM2053771Courtesy of GENERAL MOTORS CORP.
Fig 2: Deployment Loops Circuit Schematic
GM2053775Courtesy of GENERAL MOTORS CORP.
Fig 3: Passenger Presence System (PPS) Circuit Schematic
GM2053778Courtesy of GENERAL MOTORS CORP.
