HVAC Schematics

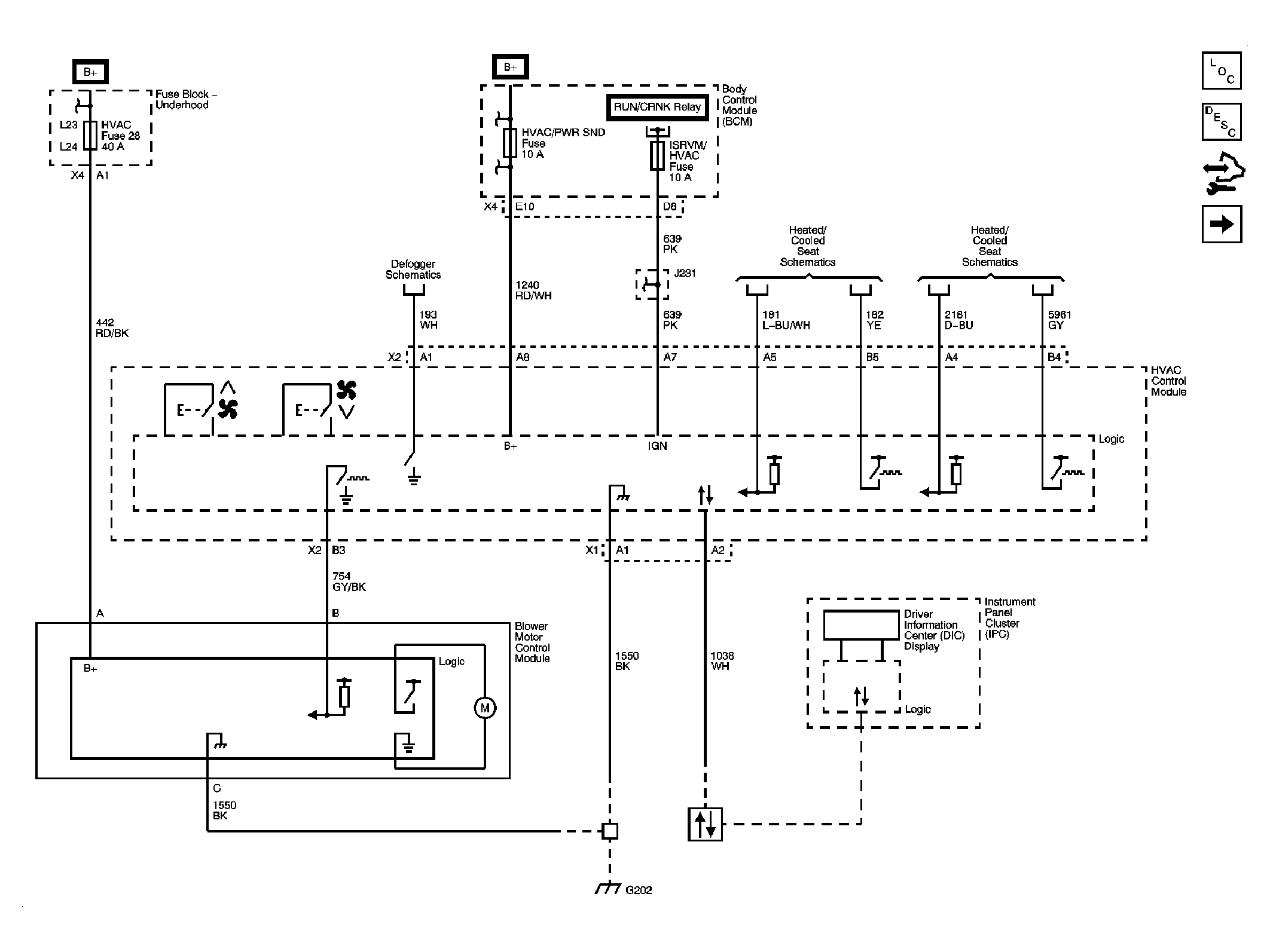

Fig 1: Power, Ground, Blower Motor Control & Subsystem References Circuit Schematic
GM2053563Courtesy of GENERAL MOTORS CORP.
Fig 2: A/C Compressor Controls Circuit Schematic
GM2053567Courtesy of GENERAL MOTORS CORP.
Fig 3: Air Temperature Sensors Circuit Schematic
GM2053570Courtesy of GENERAL MOTORS CORP.
Fig 4: Mode & Air Temperature Controls Circuit Schematic
GM2053572Courtesy of GENERAL MOTORS CORP.
