Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch assembly. Refer to Clutch Assembly Replacement (LS9)  or Clutch Assembly Replacement (LS3/LS7) .

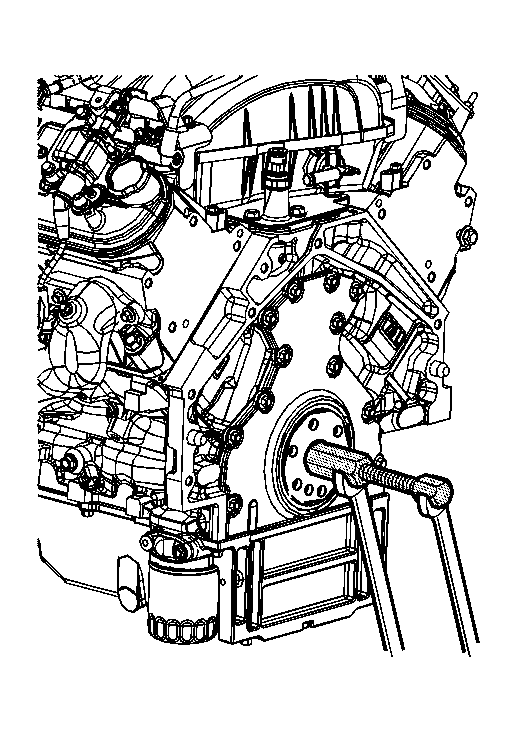

    2. Fig 1: Securing Special Tool J 43276-1 Clutch Pilot Bearing Remover Tool Body
    GM1552528Courtesy of GENERAL MOTORS CORP.
    CAUTION: When using the J 43276 Clutch Pilot Bearing Remover, always secure the J 43276-1 Clutch Pilot Bearing Remover tool body using a wrench. Do not allow the J 43276-1 tool body to rotate. Failing to do so causes damage to the J 43276-1 tool body.
  2. Remove the clutch pilot bearing using the J 43276  .
    1. Install the J 43276-1 into the clutch pilot bearing.
    2. Using a wrench, secure the J 43276-1.
    3. Insert the J 43276-2 into the J 43276-1.
    4. Rotate the J 43276-2 clockwise into the J 43276-1 until the clutch pilot bearing is completely removed from the crankshaft.
    5. Rotate the J 43276-2 counterclockwise to remove the J 43276-2 from the J 43276-1.
    6. Remove the J 43276-1 from the tool body.
    3. Fig 2: Locating Clutch Pilot Bearing
    GM63195Courtesy of GENERAL MOTORS CORP.
  3. Discard the pilot bearing.
