Disassembled Views

WARNING: This page is about a different variant/trim than selected.

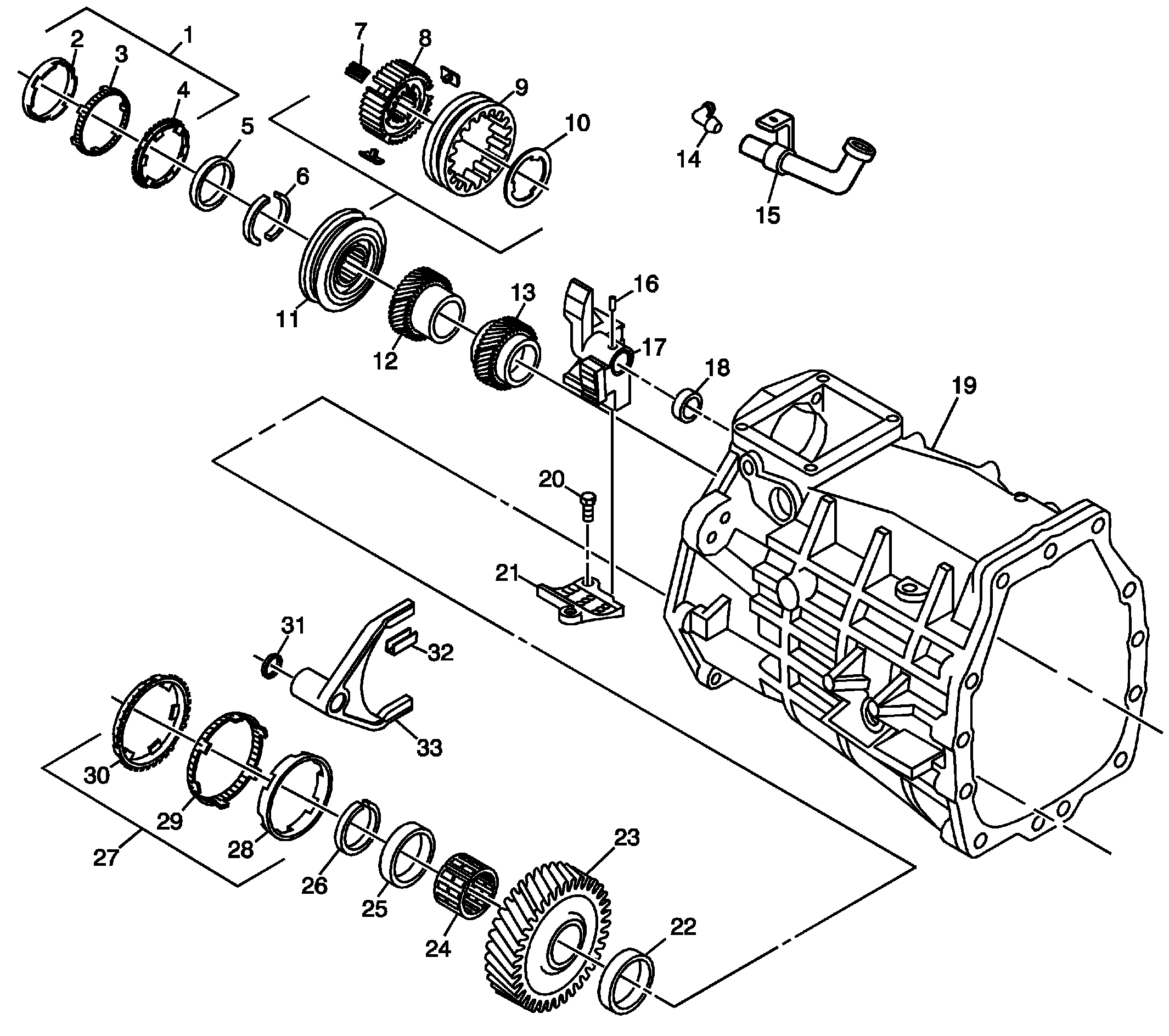

Fig 1: Disassembled View Of Transmission Case (1 Of 2)
GM1887512Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Reverse Gear Blocking Ring Assembly
2 Reverse Gear Inner Ring
3 Reverse Gear Outer Cone
4 Reverse Gear Blocker Ring
5 Reverse Gear Thrust Washer Locking Ring
6 Reverse Synchronizer Two Piece Washer
7 Reverse Synchronizer Insert
8 Reverse Synchronizer Hub
9 Reverse Synchronizer Sleeve
10 Reverse Synchronizer Key Retainer
11 Reverse Synchronizer Assembly
12 5th Speed Driven Gear
13 6th Speed Driven Gear
14 Vent
15 Vent Pipe
16 Offset Lever Roll Pin
17 Offset Shift Lever
18 Top Shift Shaft Bushing
19 Transmission Case
20 Guide Plate Bolt
21 Guide Plate
22 6th Speed Drive Gear Bearing Spacer
23 6th Speed Drive Gear
24 6th Speed Drive Gear Needle Bearing
25 6th Speed Drive Gear Bearing Spacer
26 Synchronizer Retainer Ring
27 6th Gear Blocking Ring Assembly
28 6th Speed Drive Gear Inner Cone
29 6th Speed Drive Gear Outer Cone
30 6th Speed Drive Gear Synchronizer Blocking Ring
31 Reverse Shift Fork Retainer Ring
32 Reverse Shift Fork Pad
33 Reverse Shift Fork

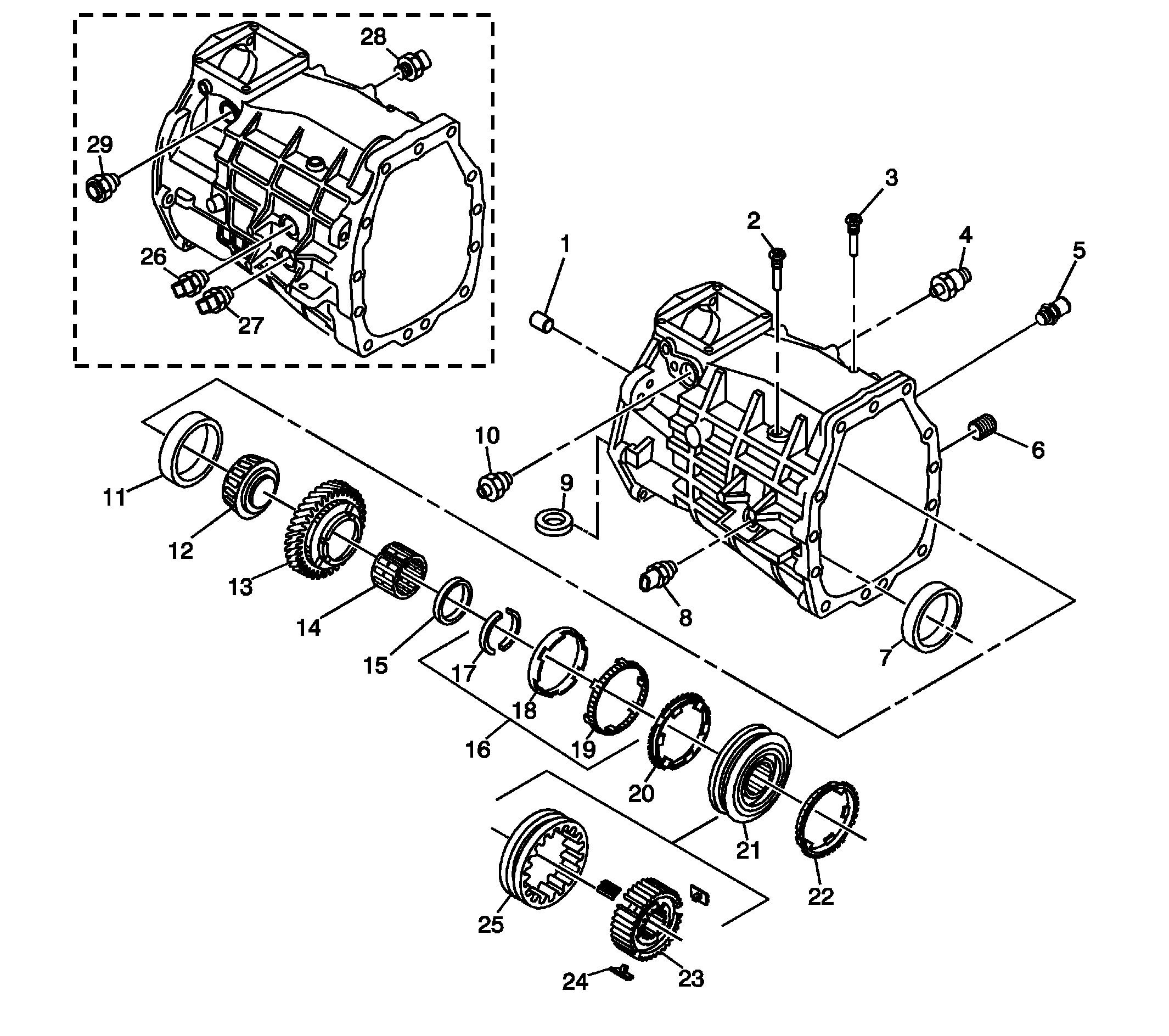

Fig 2: Disassembled View Of Transmission Case (2 Of 2)
GM1887513Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Case Rear Extension Pin
2 5th/6th Lever Guide Bolt
3 Interlock Guide Bolt
4 Computer Aided Gear Select Solenoid
5 Cooler Line Return Fitting
6 Oil Fill Plug
7 Countershaft Bearing Race
8 Backup Lamp Switch
9 Magnet
10 Shift Detent Assembly
11 Mainshaft Center Bearing Race
12 Mainshaft Center Bearing
13 1st Speed Drive Gear
14 1st Speed Drive Gear Needle Bearing
15 1st Speed Drive Gear Locking Ring
16 1st Gear Blocking Ring Assembly
17 1st Speed Gear Two Piece Washer
18 1st Speed Drive Gear Inner Cone
19 1st Speed Drive Gear Outer Cone
20 1st Gear Synchronizer Blocking Ring
21 1st/2nd Synchronizer Assembly
22 2nd Gear Synchronizer Blocking Ring
23 1st/2nd Synchronizer Hub
24 1st/2nd Synchronizer Insert
25 1st/2nd Synchronizer Sleeve
26 Reverse Backup Lamp Switch (Export Only)
27 E-Z Key Switch (Export Only)
28 Coolant Temperature Sensor (Z51, Z06, Exports)
29 Detent (Export Only)

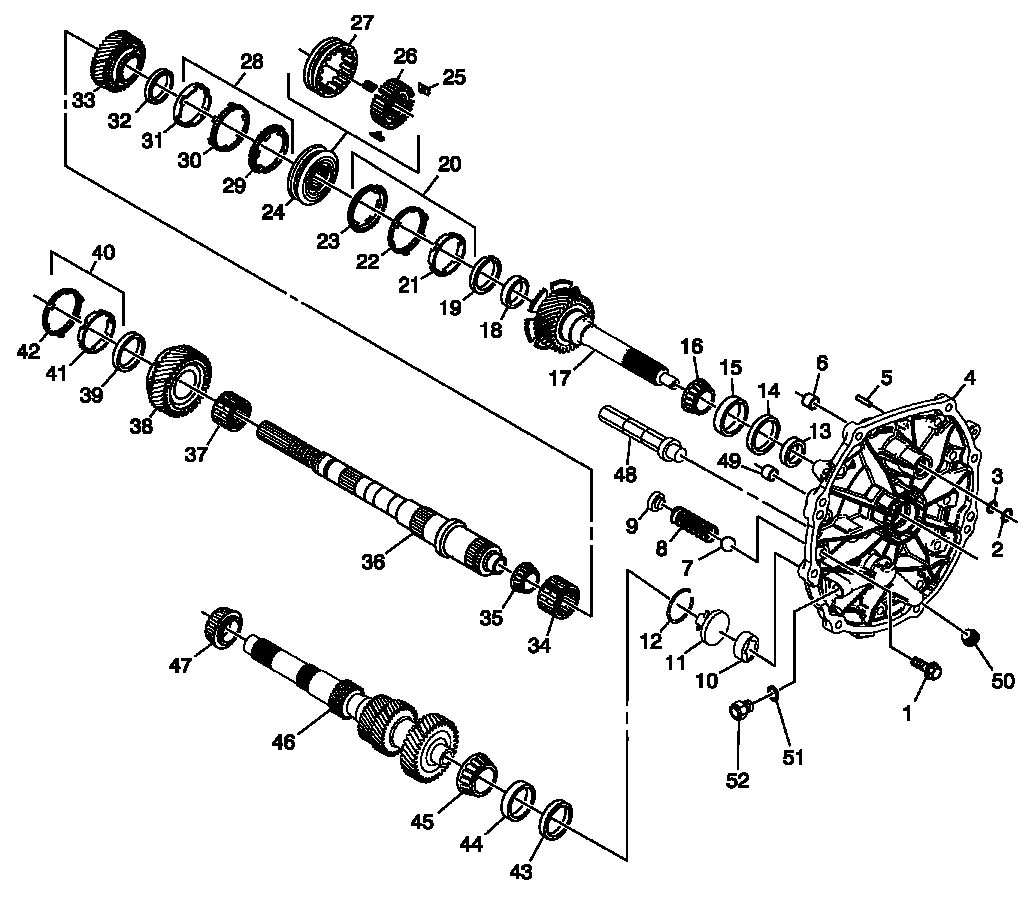

Fig 3: Disassembled View Of Adapter Plate & Gears
GM1887515Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Adapter to Transmission Case Bolt
2 Outer Shift Shaft Seal
3 Inner Shift Shaft Seal
4 Front Adapter Plate
5 Dowel Pin
6 Top Shaft Rail Bushing
7 Transmission Fluid Pump Check Ball
8 Spring
9 Plug
10 Oil Pump
11 Oil Pump Cover
12 Oil Pump Cover Retainer Ring
13 Input Shaft Seal
14 Input Shaft Bearing Shim
15 Input Shaft Bearing Race
16 Input Shaft Bearing
17 Input Shaft
18 Input Shaft Bearing Race
19 3rd/4th Synchronizer Retaining Ring
20 4th Gear Blocking Ring Assembly
21 4th Speed Drive Gear Inner Cone
22 4th Speed Drive Gear Outer Cone
23 4th Speed Drive Gear Blocking Ring
24 3rd/4th Synchronizer Assembly
25 3rd/4th Synchronizer Insert
26 3rd/4th Synchronizer Hub
27 3rd/4th Synchronizer Sleeve
28 3rd Gear Blocking Ring Assembly
29 3rd Speed Drive Gear Synchronizer Blocking Ring
30 3rd Speed Drive Gear Friction Cone
31 3rd Speed Drive Gear Inner Cone
32 3rd Speed Drive Gear Spacer
33 3rd Speed Drive Gear
34 3rd Speed Drive Gear Bearing
35 Mainshaft Small Tapered Bearing
36 Mainshaft
37 2nd Speed Drive Gear Needle Bearing
38 2nd Speed Drive Gear
39 2nd Speed Drive Gear Bearing Spacer
40 2nd Gear Blocking Ring Assembly
41 2nd Speed Drive Gear Inner Cone
42 2nd Speed Drive Gear Outer Cone
43 Countershaft Bearing Adjust Shim
44 Countershaft Bearing Race
45 Countershaft Front Bearing
46 Countershaft
47 Countershaft Rear Bearing
48 Transmission Fluid Pump Inlet Pipe
49 Shift Shaft Bushing
50 Transmission Adapter Plug
51 Transmission Fluid Pump Outlet Pipe Fitting Seal
52 Transmission Fluid Pump Outlet Pipe Fitting

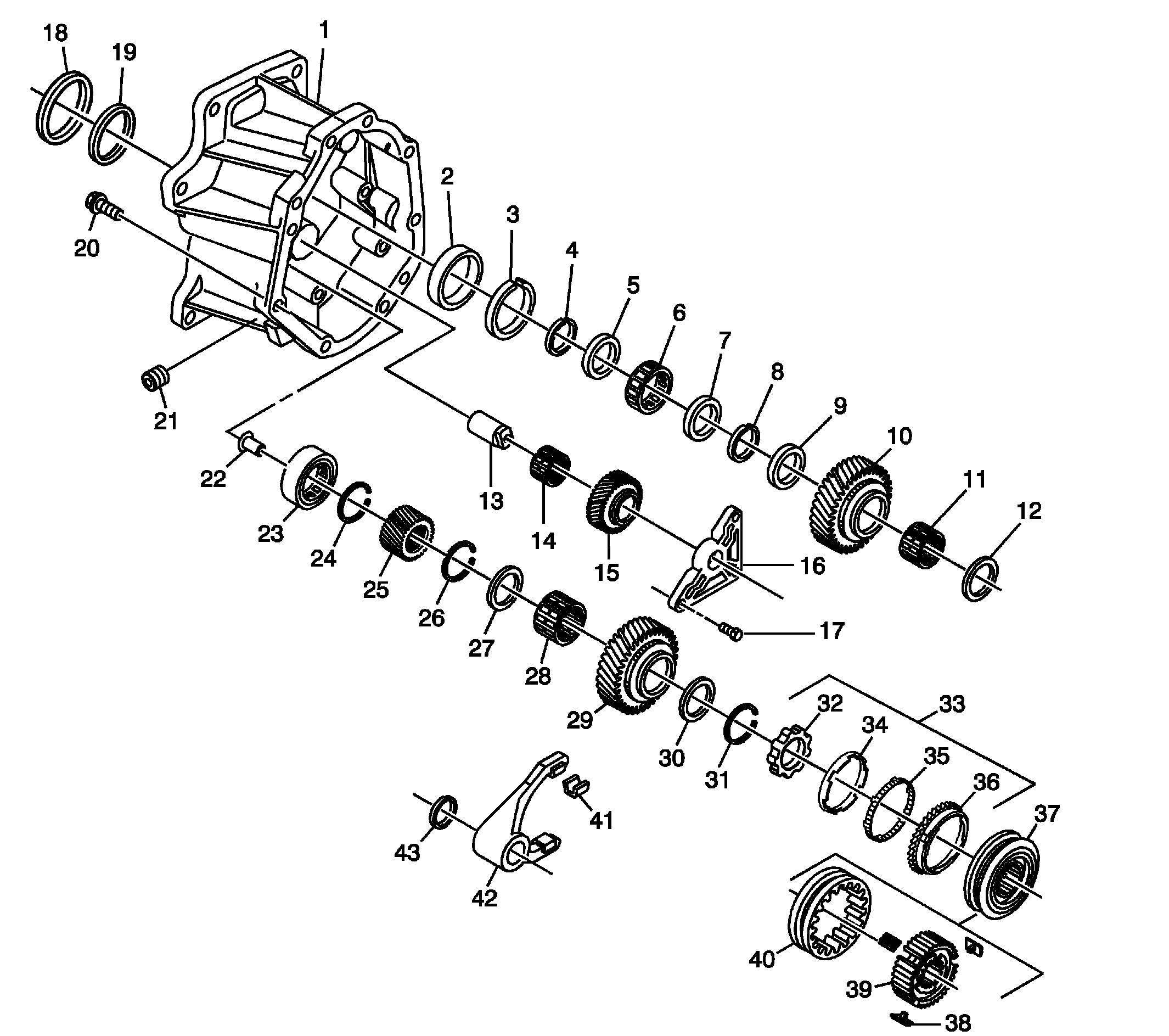

Fig 4: Disassembled View Of Extension Housing
GM1887516Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Extension Housing
2 Mainshaft Bearing Race
3 Mainshaft Rear Bearing Retainer Ring
4 Mainshaft Rear Bearing Retainer Ring
5 Mainshaft Gear Bearing Spacer
6 Mainshaft Rear Bearing
7 Mainshaft Gear Bearing Spacer
8 Synchronizer Retainer Ring
9 Reverse Gear Thrust Washer
10 Mainshaft Reverse Speed Gear
11 Reverse Gear Bearing
12 Reverse Gear Washer
13 Reverse Idler Gear Shaft
14 Reverse Idler Gear Needle Bearing
15 Reverse Idler Gear
16 Reverse Idler Bracket
17 Reverse Idler Bracket Bolt
18 Outer Output Shaft Seal
19 Inner Output Shaft Seal
20 Extension Housing to Transmission Case Bolt
21 Oil Drain Plug
22 Lubrication Funnel
23 Extension Housing Counter Shaft Bearing Assembly
24 Retainer
25 Separate Gear
26 Retainer
27 Spacer
28 5th Speed Drive Gear Needle Bearing
29 5th Speed Drive Gear
30 Spacer
31 Retainer
32 Thrust Washer
33 5th Gear Blocking Ring Assembly
34 5th Speed Gear Inner Cone
35 5th Speed Gear Friction Cone
36 5th Gear Synchronizer Blocking Ring
37 5th/6th Synchronizer Assembly
38 5th/6th and Reverse Synchronizer Insert
39 5th/6th Synchronizer Hub
40 5th/6th Synchronizer Sleeve
41 Shift Fork Pad
42 5th/6th Shift Fork
43 5th Gear Shift Fork Retainer Ring

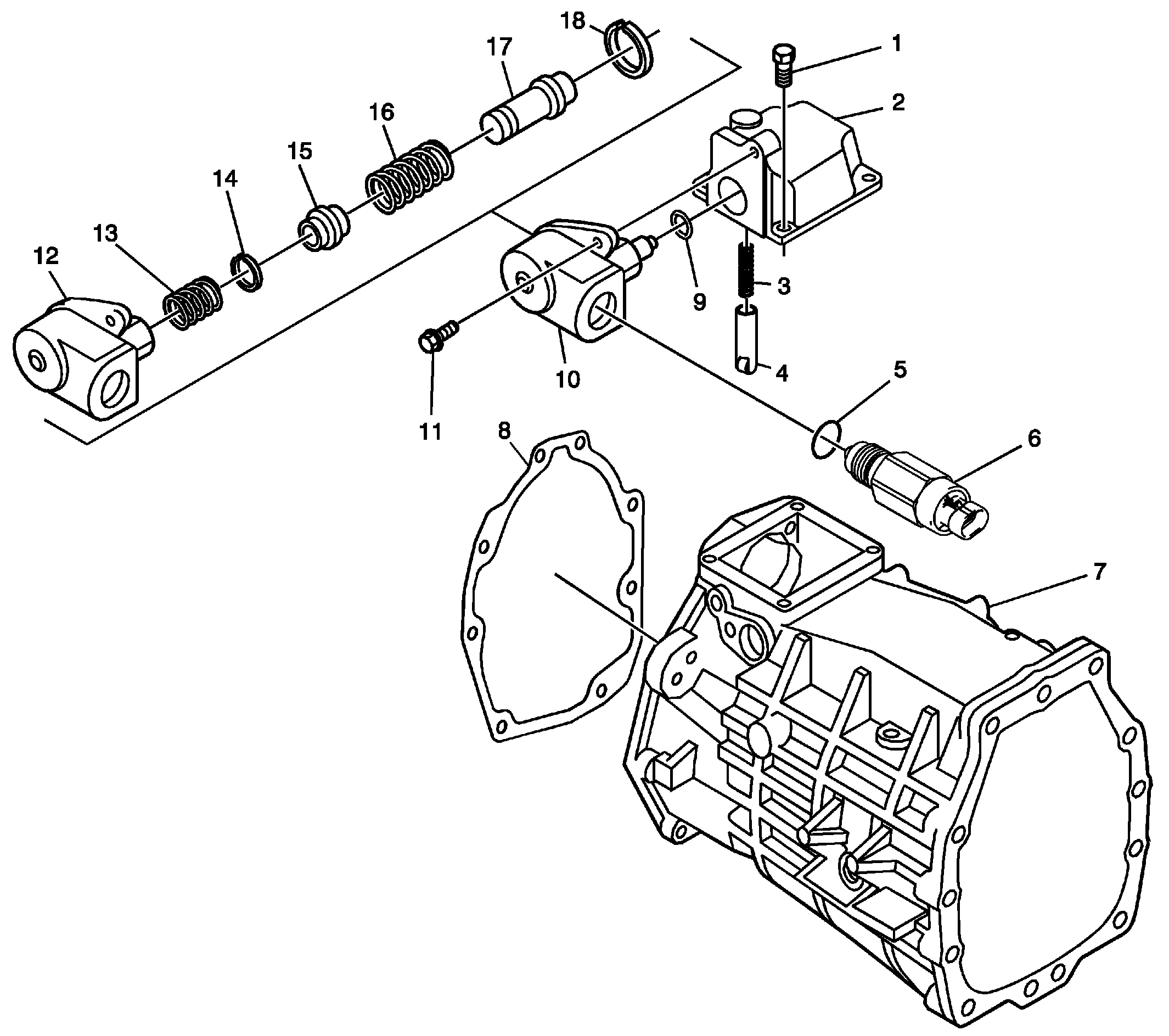

Fig 5: View Of Reverse Lockout
GM1887518Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Case Cover Bolt
2 Transmission Case Cover
3 Spring
4 Detent Roller
5 Reverse Lockout O-ring Seal
6 Reverse Lockout Solenoid
7 Transmission Case
8 Gasket
9 O-ring
10 Reverse Lockout Assembly
11 Reverse Lockout Solenoid Mounting Bolt
12 Reverse Lockout Body
13 Reverse Lockout Inner Spring
14 Snap Ring
15 Reverse Lockout Collar
16 Reverse Lockout Outer Spring
17 Reverse Lockout Plunger
18 Snap Ring

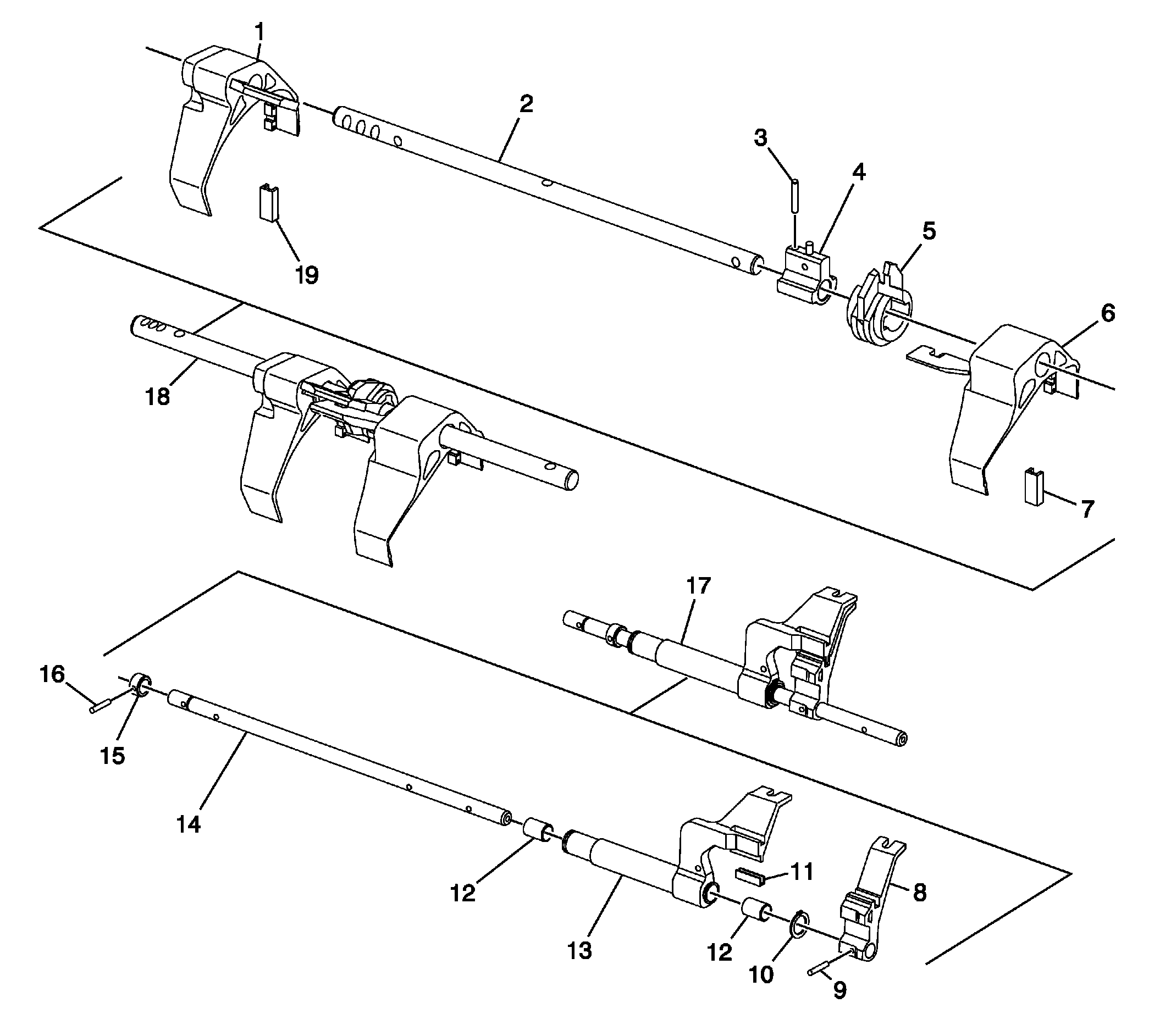

Fig 6: Disassembled View Of Shift Shafts
GM1887520Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 1st/2nd Shift Fork
2 Shift Shaft
3 1st/2nd Shift Fork Pin
4 Control Select Arm Pin
5 Gear Select Interlock Plate
6 3rd/4th Shift Fork
7 3rd/4th Shift Fork Pad
8 Reverse Shift Lever
9 Reverse Shift Lever Pin
10 Retaining Ring
11 5th/6th Shift Lever Pad
12 5th/6th Shift Shaft Lever Bushing
12 5th/6th Shift Shaft Lever Bushing
13 5th/6th Shift Lever
14 5th/6th Reverse Shift Shaft
15 Reverse Shift Collar
16 Reverse Shift Collar Pin
17 5th/6th Shift Lever Assembly
18 1st/2nd Shift Shaft Assembly
19 1st/2nd Shift Fork Pad
