Removal Procedure

WARNING: This page is about a different variant/trim than selected.

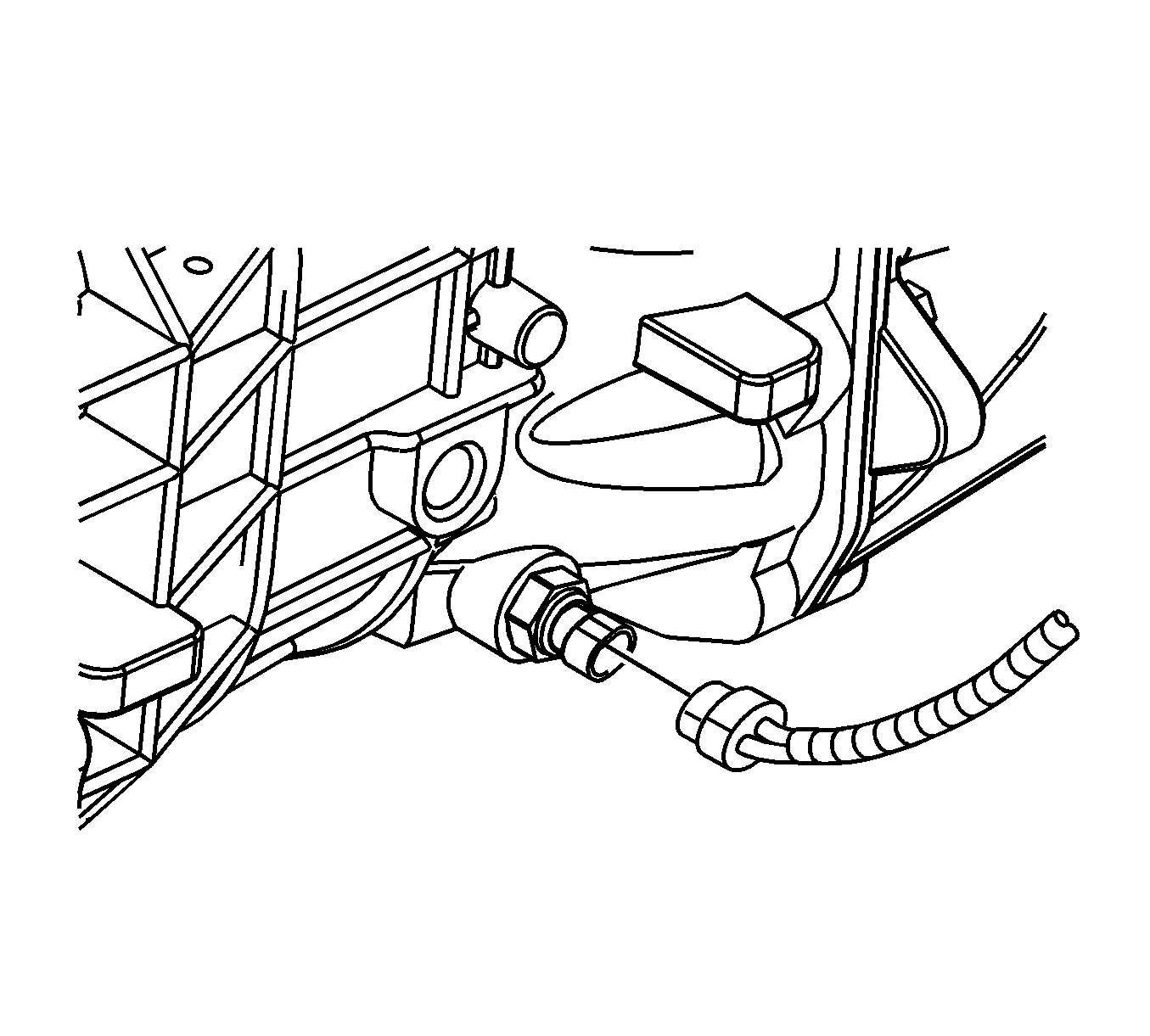

    Fig 1: View Of Temperature Sensor Electrical Connector
    GM1859358Courtesy of GENERAL MOTORS CORP.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the transmission fluid temperature sensor electrical connector.

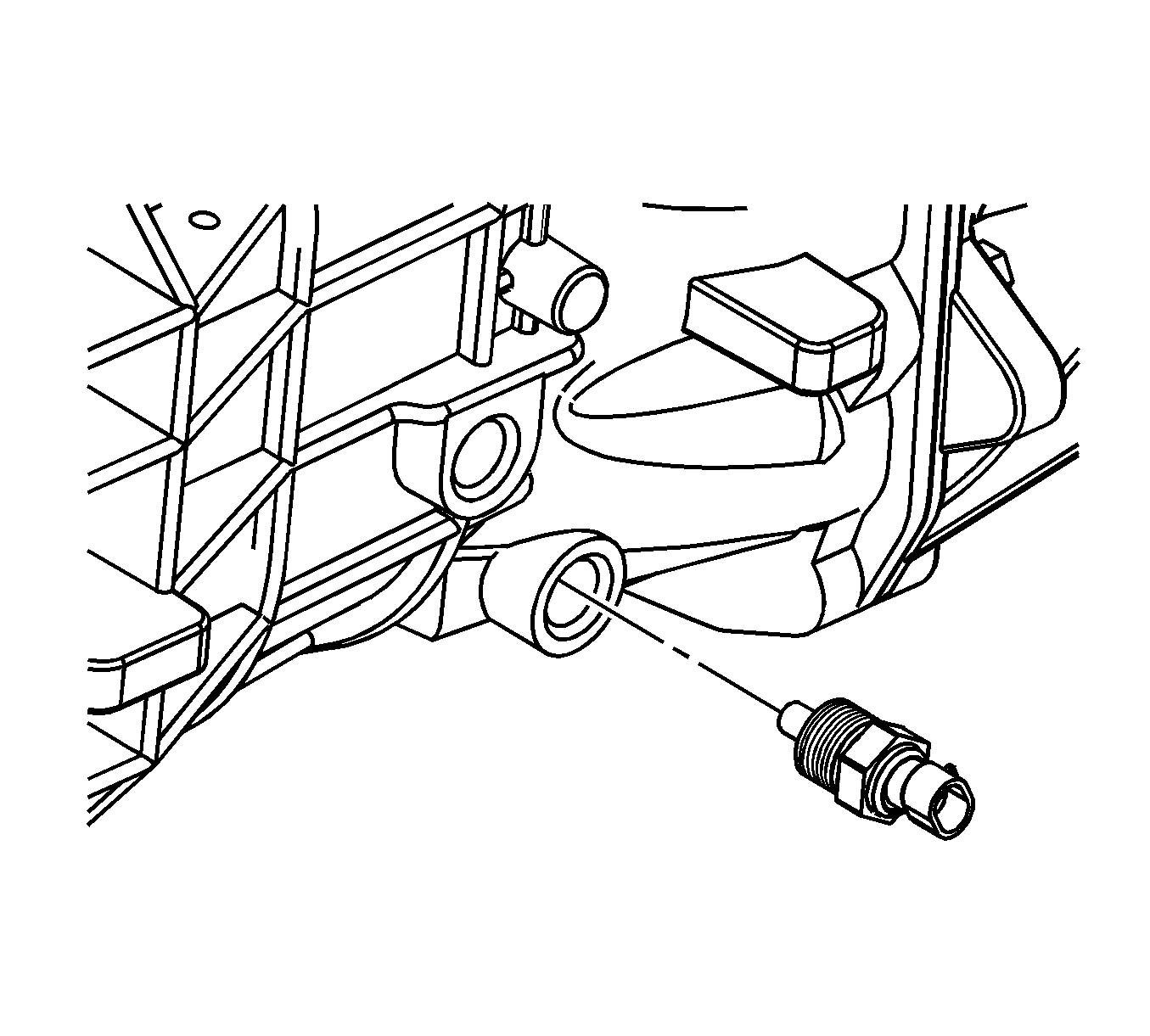

    3. Fig 2: View Of Temperature Sensor
    GM1859366Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission fluid temperature sensor.
