Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Lower and support the rear of the exhaust.
  3. Install a drain pan under the vehicle.
    4. IMPORTANT: Cap or plug the open transmission fluid cooler pipes immediately to prevent system contamination.
    Fig 1: View Of Transmission Fluid Cooler Upper Pipe At Transmission
    GM1503776Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the rear transmission fluid cooler upper pipe from the transmission. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

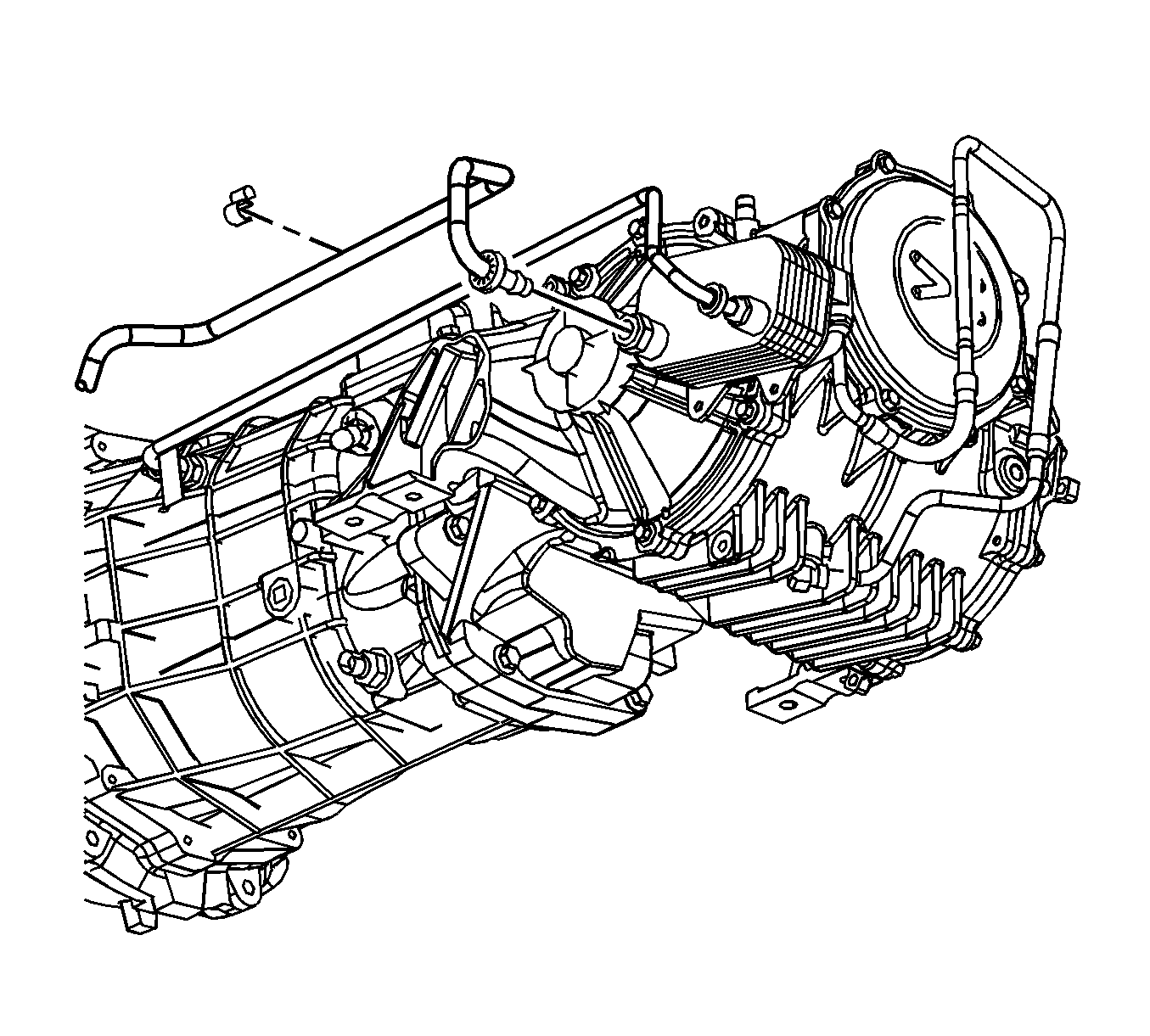

    5. Fig 2: View Of Transmission Fluid Cooler Pipes Clip
    GM1503940Courtesy of GENERAL MOTORS CORP.
  5. Remove the transmission fluid cooler pipes clip.
  6. Disconnect the rear transmission fluid cooler upper pipe from the Differential oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  7. Remove the rear to differential cooler transmission fluid cooler upper pipe from the vehicle.
