Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Gear Select (Skip Shift) Solenoid Electrical Connector
    GM180654Courtesy of GENERAL MOTORS CORP.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the gear select solenoid electrical connector.

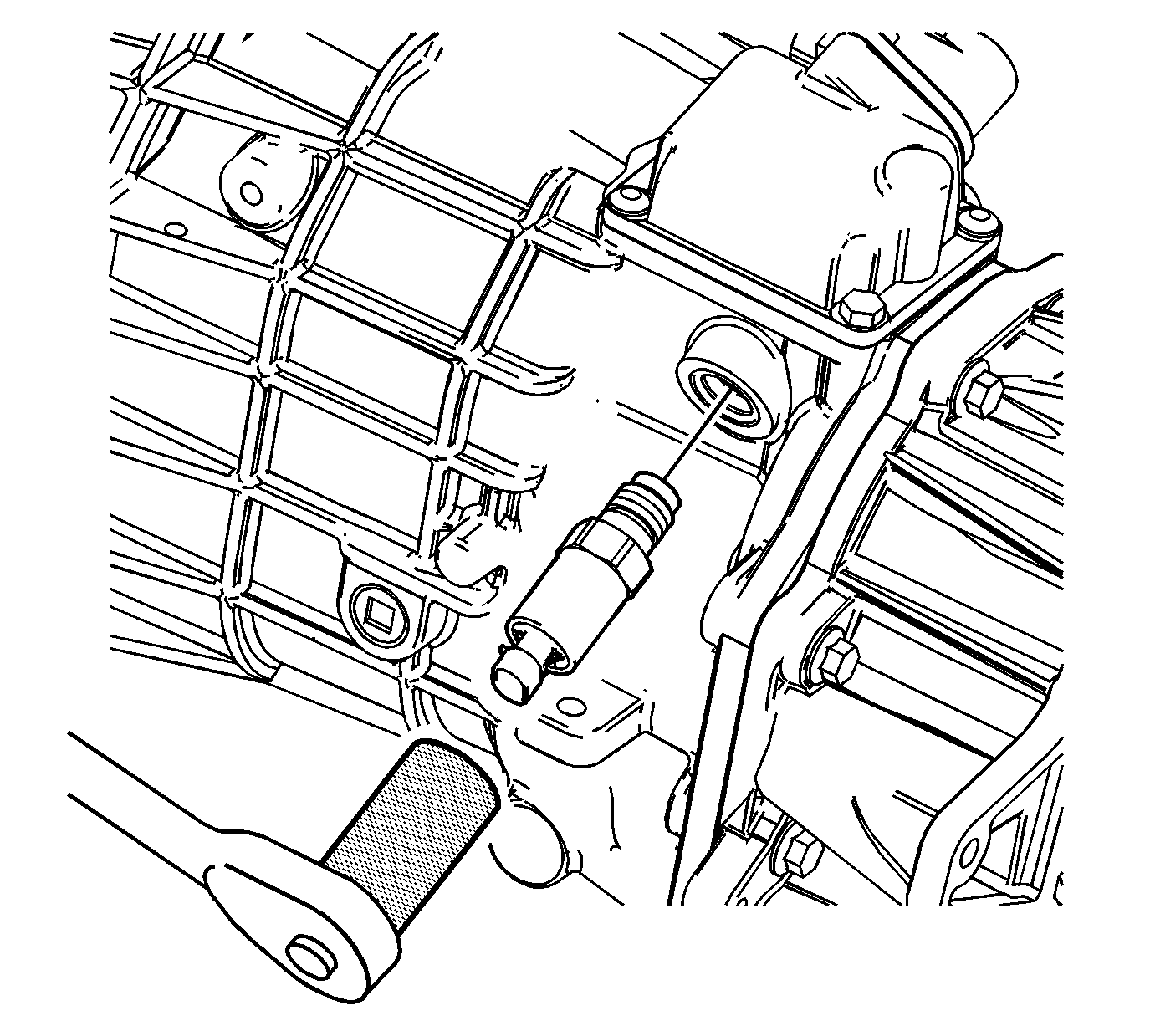

    3. Fig 2: View Of Computer Aided Gear Select Solenoid & DT-48827
    GM1887548Courtesy of GENERAL MOTORS CORP.
  3. Using the DT-48827:  socket, remove the gear select solenoid.
