Backup Lamp Switch with Transmission Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

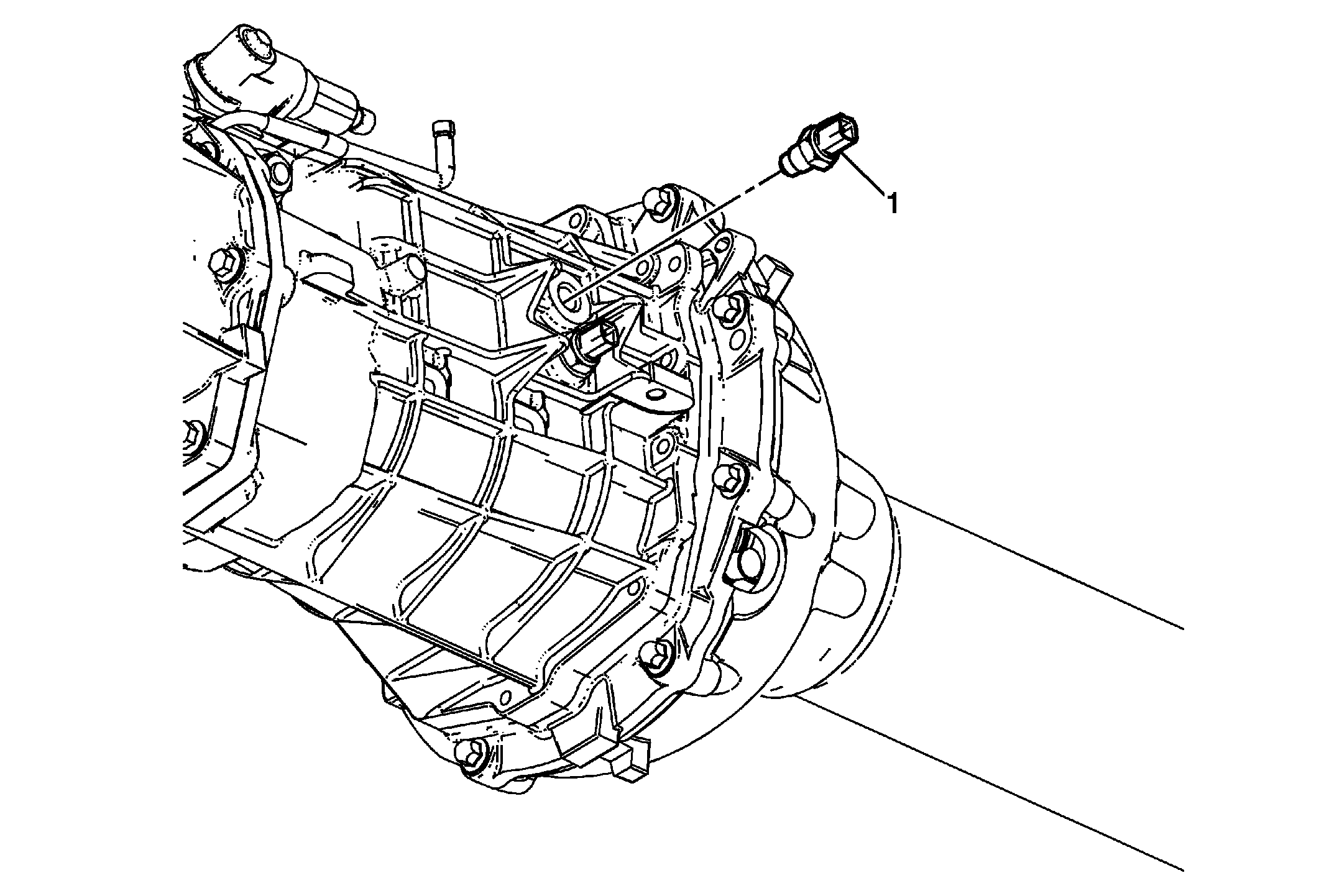

Fig 1: Identifying Backup Lamp Switch With Transmission Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the intermediate pipe. Refer to Intermediate Pipe Replacement .
1	Backup Lamp Switch and Transmission Position Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure: Disconnect the electrical connector. Tighten: 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the intermediate pipe. Refer to Intermediate Pipe Replacement .

Backup Lamp Switch and Transmission Position Sensor

CAUTION: Refer to Component Fastener Tightening Caution .

Procedure:
Disconnect the electrical connector.

Tighten: 20 N.m (15 lb ft)
