Transmission Case Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Computer Aided Gear Select Solenoid & DT-48827
    GM1887548Courtesy of GENERAL MOTORS CORP.
  1. Using DT 48827:  socket, remove the computer aided gear select solenoid.

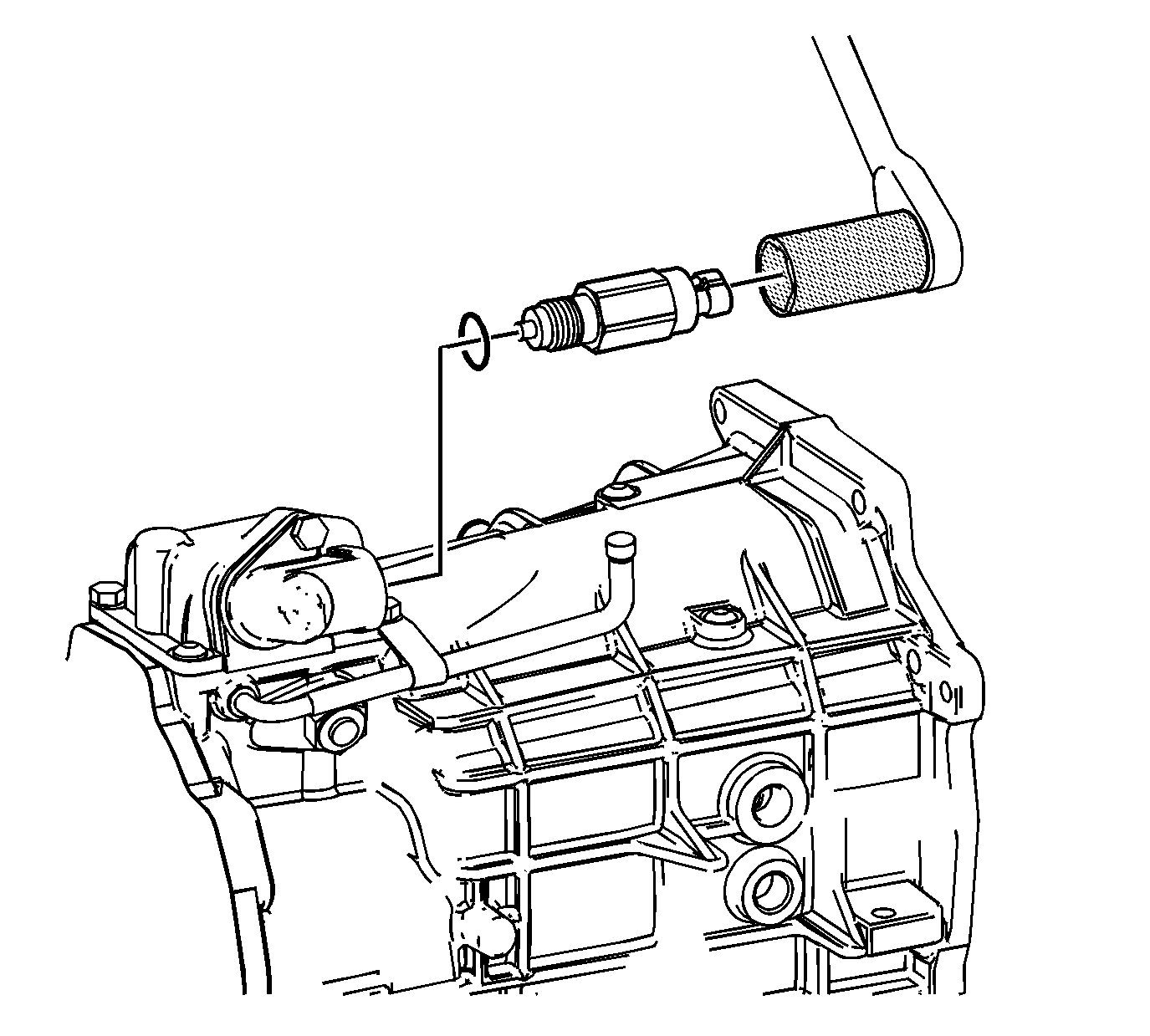

    2. Fig 2: View of O-ring Seal Reverse Lockout Solenoid
    GM1887553Courtesy of GENERAL MOTORS CORP.
  2. Using DT 48827:  socket, remove the reverse lockout solenoid from the reverse lockout body.
  3. Remove the O-ring seal from the reverse lockout solenoid and discard.

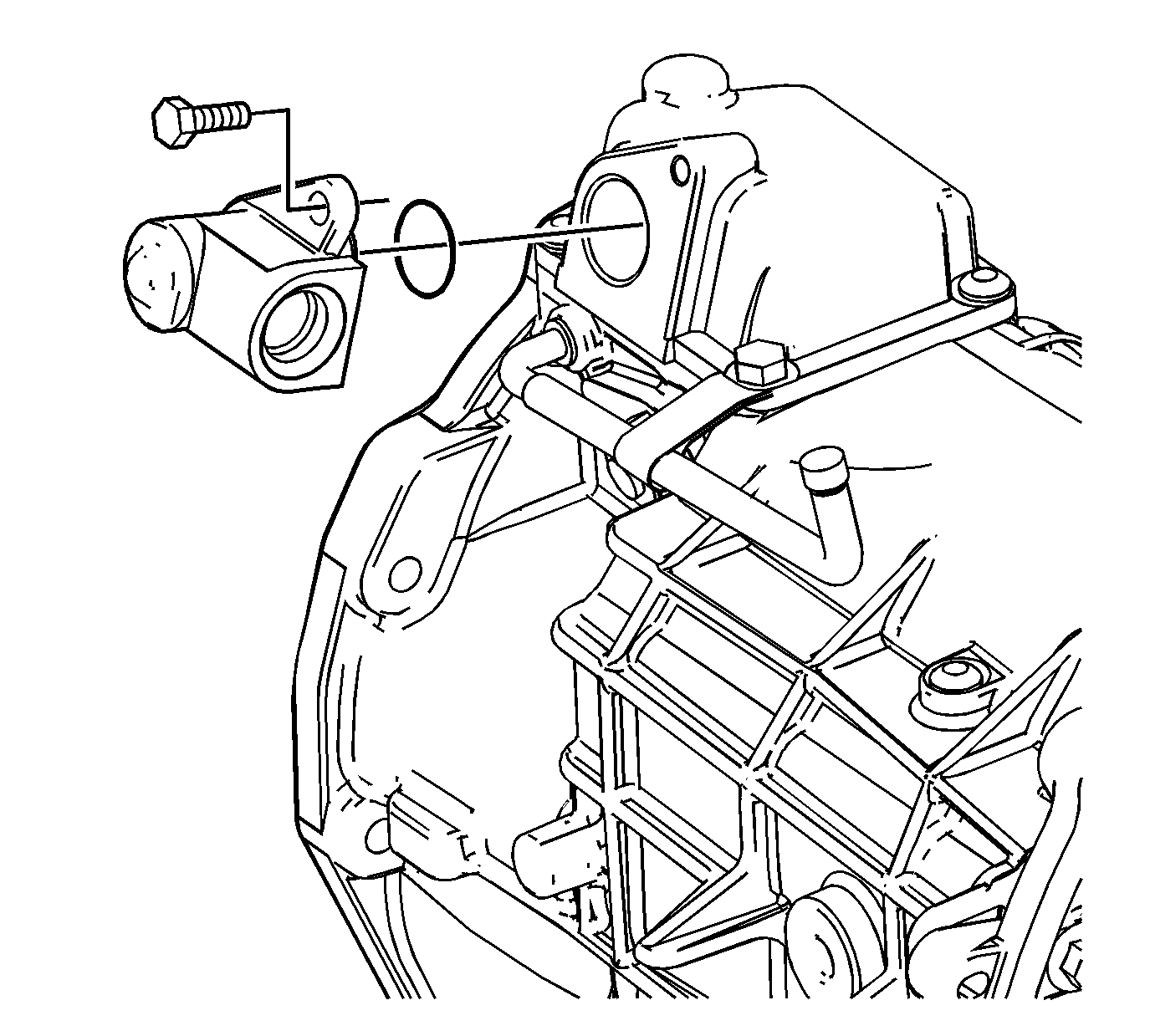

    4. Fig 3: View of O-ring Seal & Reverse Lockout Body
    GM1887555Courtesy of GENERAL MOTORS CORP.
  4. Remove the reverse lockout assembly bolt and the reverse lockout body.
  5. Remove the O-ring seal from the reverse lockout body and discard.

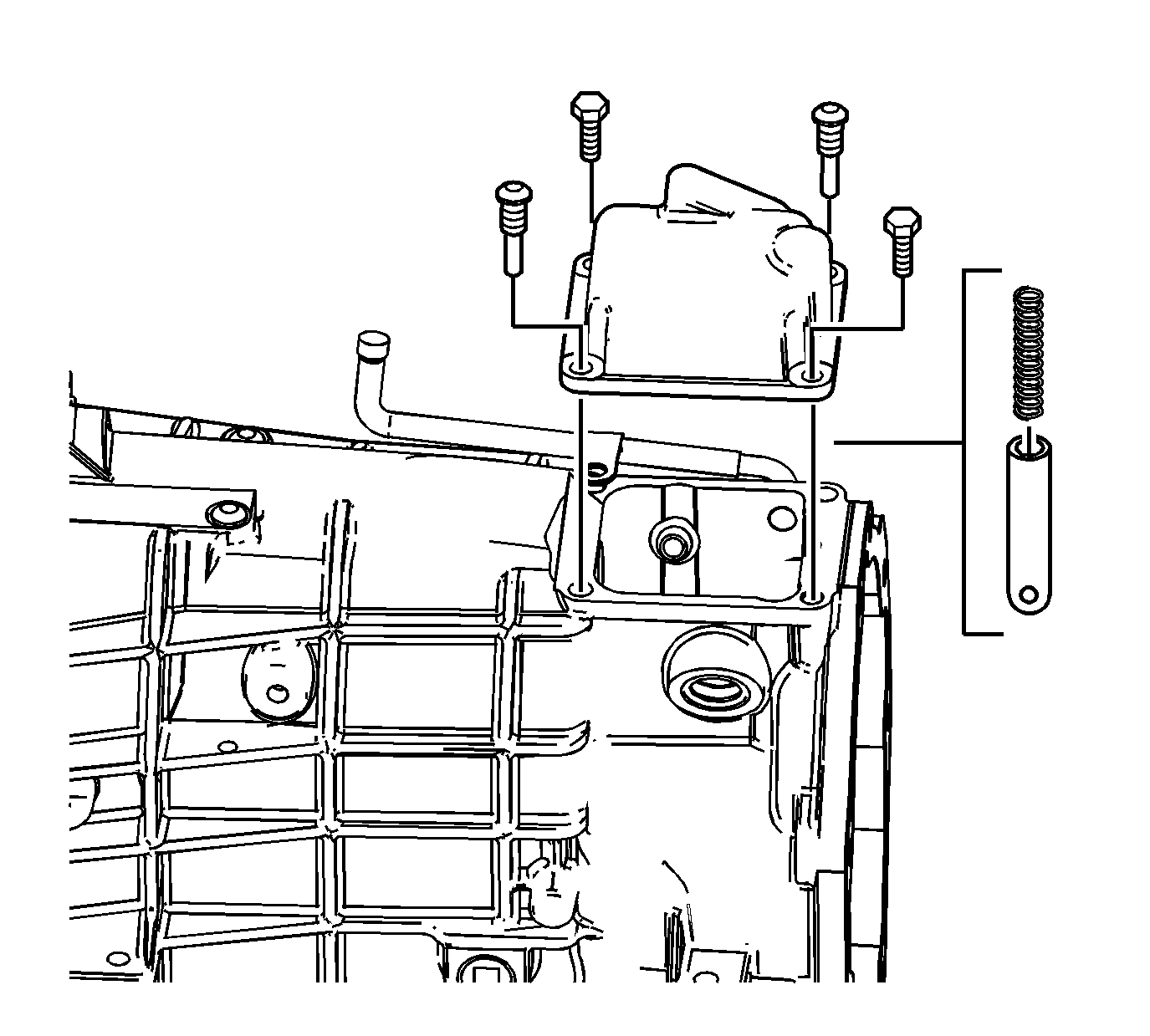

    6. Fig 4: View Of Spring And Roller Detent
    GM1887557Courtesy of GENERAL MOTORS CORP.
  6. Remove the shifter cover plate retainer bolts.
  7. Remove the shifter cover plate.
  8. Remove the spring and roller detent.
    9. Fig 5: View Of Shift Detent Assembly
    GM388460Courtesy of GENERAL MOTORS CORP.
  9. Remove the shift detent assembly.

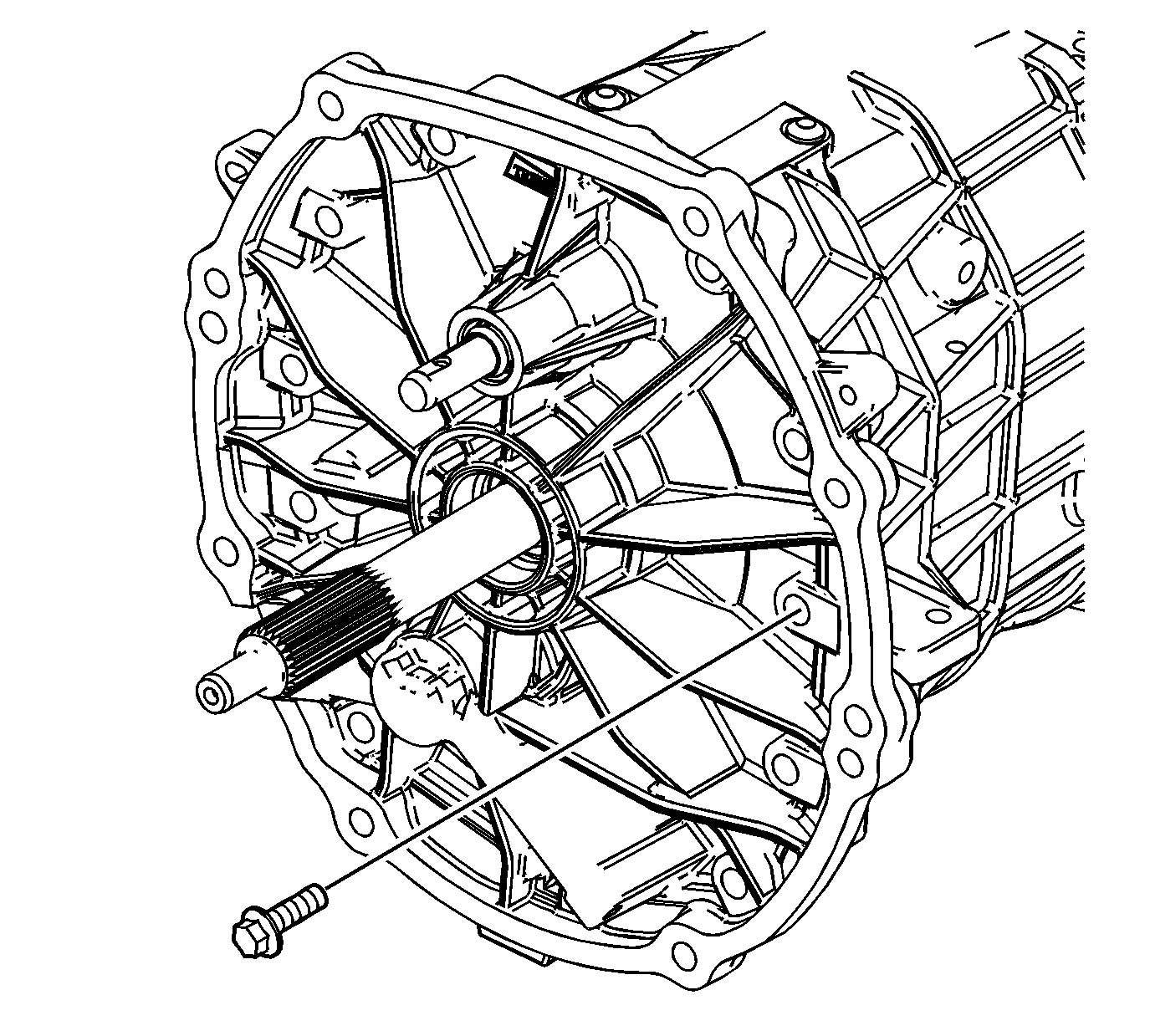

    10. Fig 6: View Of Adapter Plate To Transmission Case Bolts
    GM1887558Courtesy of GENERAL MOTORS CORP.
  10. Remove 8 of the 11 adapter plate to transmission case bolts.
  11. Rotate the transmission into the vertical position.

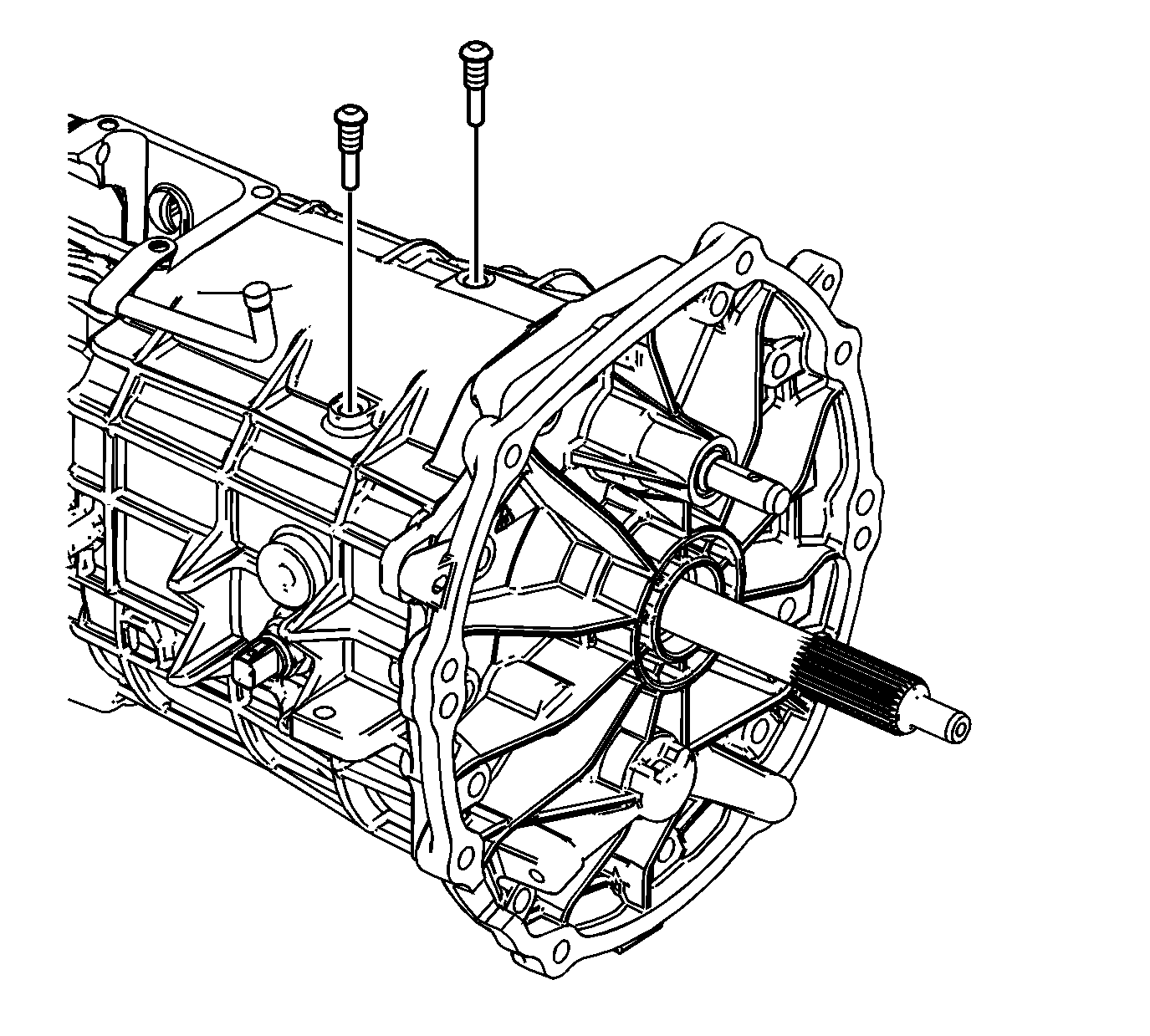

    12. Fig 7: View Of 2 Shift Lever Guide Bolts
    GM1887561Courtesy of GENERAL MOTORS CORP.
  12. Remove the 2 shift lever guide bolts.

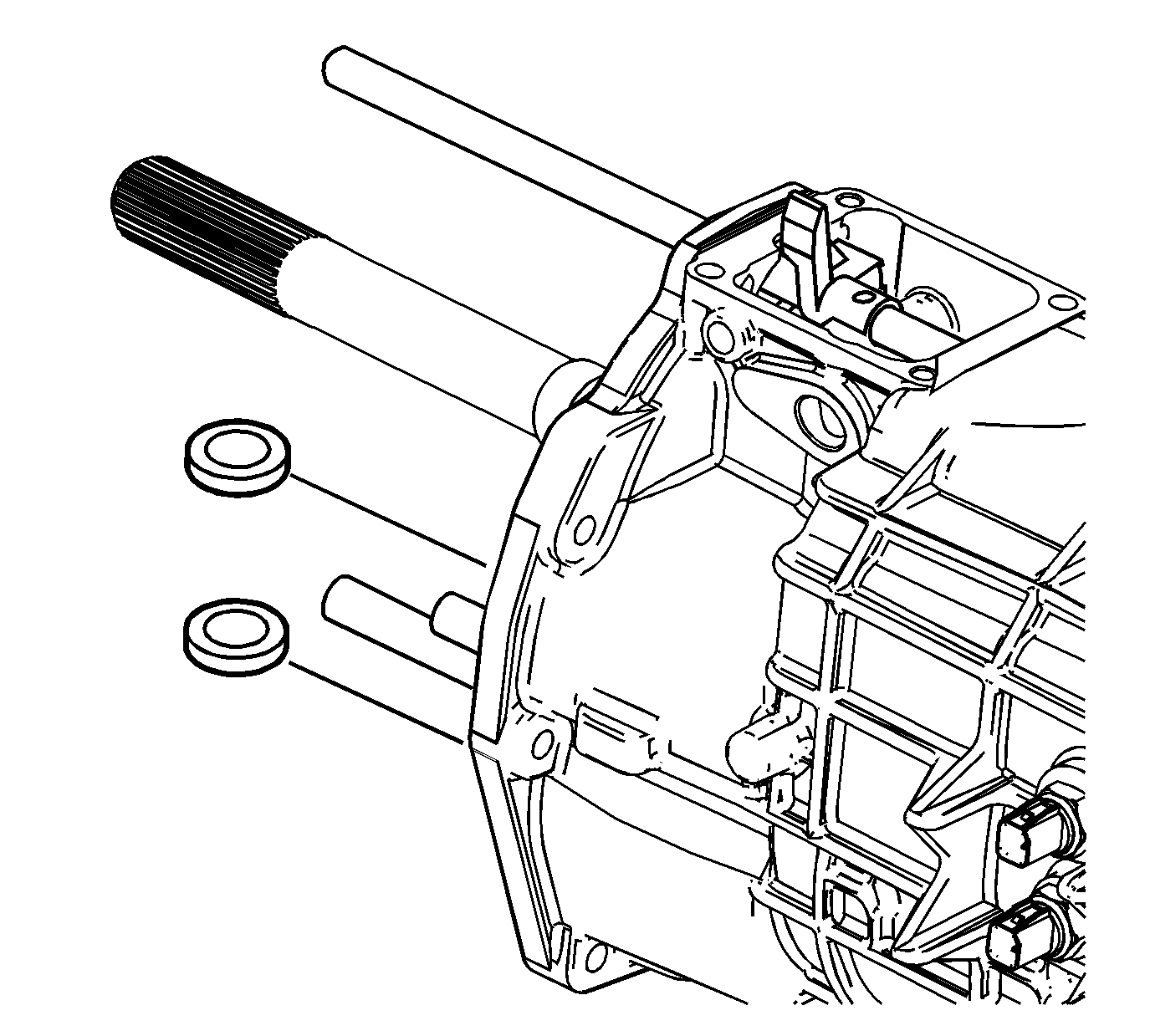

    13. Fig 8: View Of Magnets & Transmission Case
    GM1887562Courtesy of GENERAL MOTORS CORP.
  13. Remove the magnets from the transmission case.

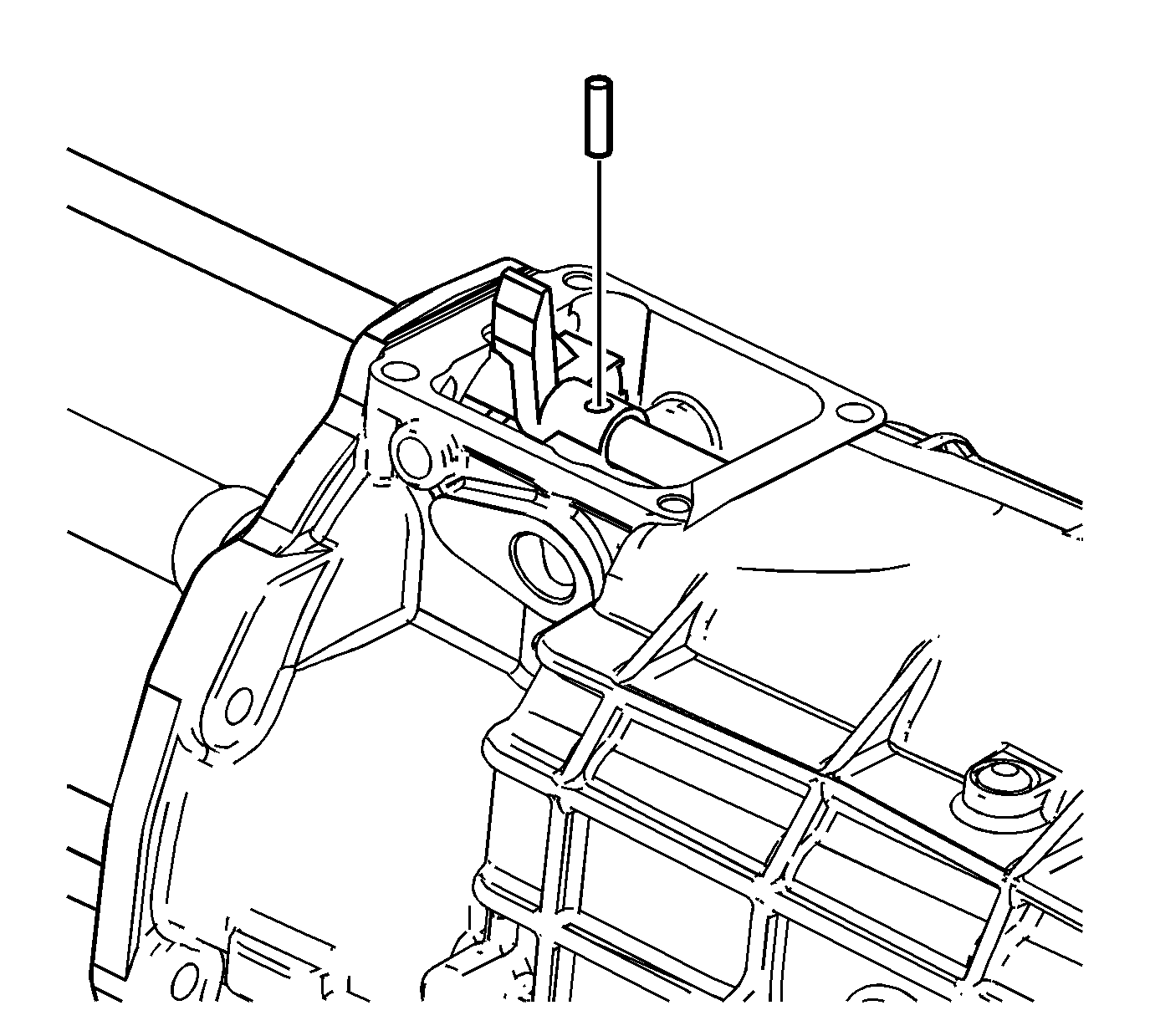

    14. Fig 9: View Of Offset Lever Roll Pin
    GM1887565Courtesy of GENERAL MOTORS CORP.
  14. Remove the offset lever roll pin by using a punch to push the pin through the shift shaft.

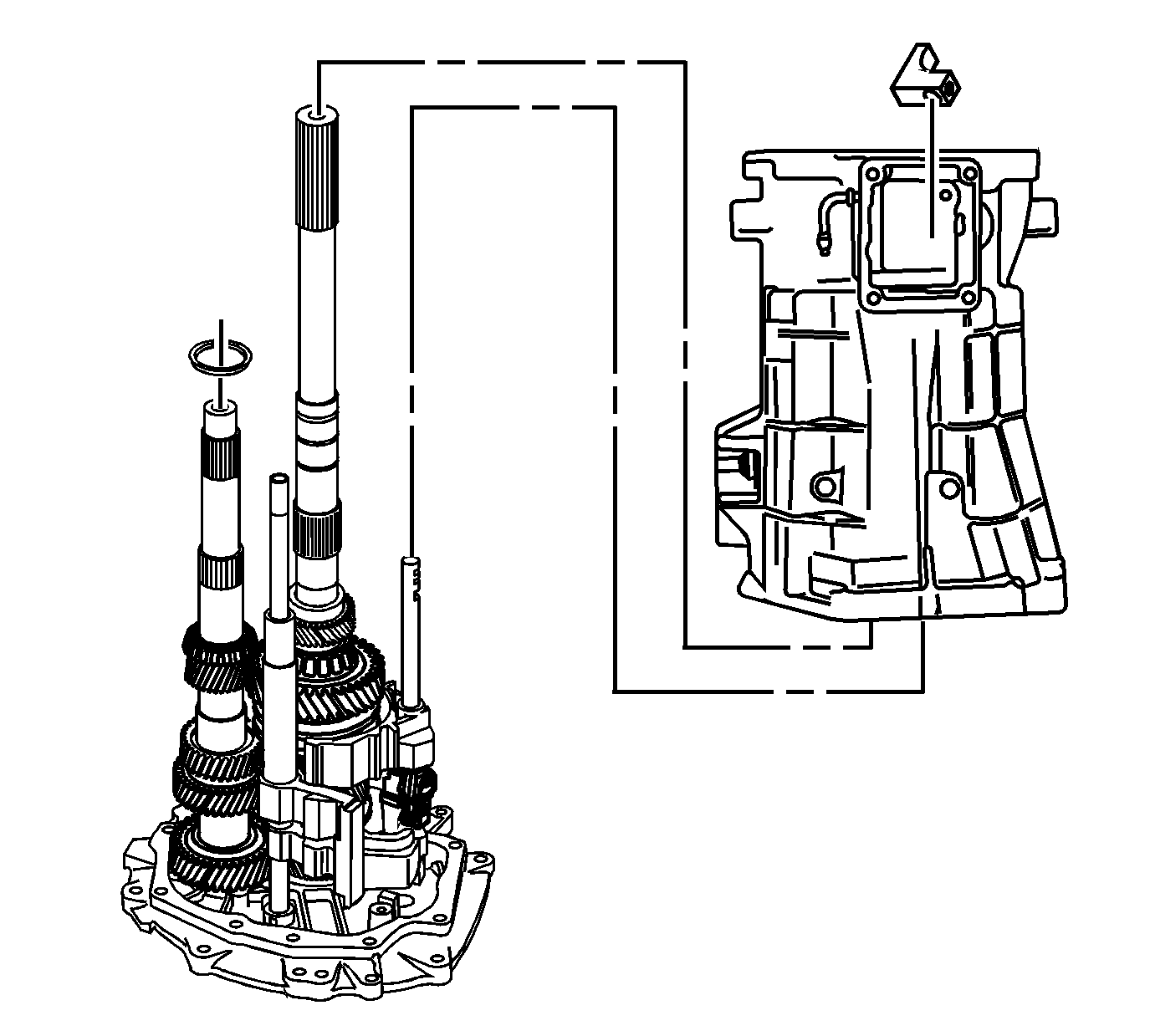

    15. Fig 10: View of Transmission Case And The Offset Lever
    GM1887567Courtesy of GENERAL MOTORS CORP.
  15. Pry the transmission case from the adapter plate.
  16. Remove the offset lever and the transmission case at the same time.
  17. Remove the 6th gear spacer from the countershaft.
