Shift Shaft Assemblies and Gear Cluster Removal

WARNING: This page is about a different variant/trim than selected.

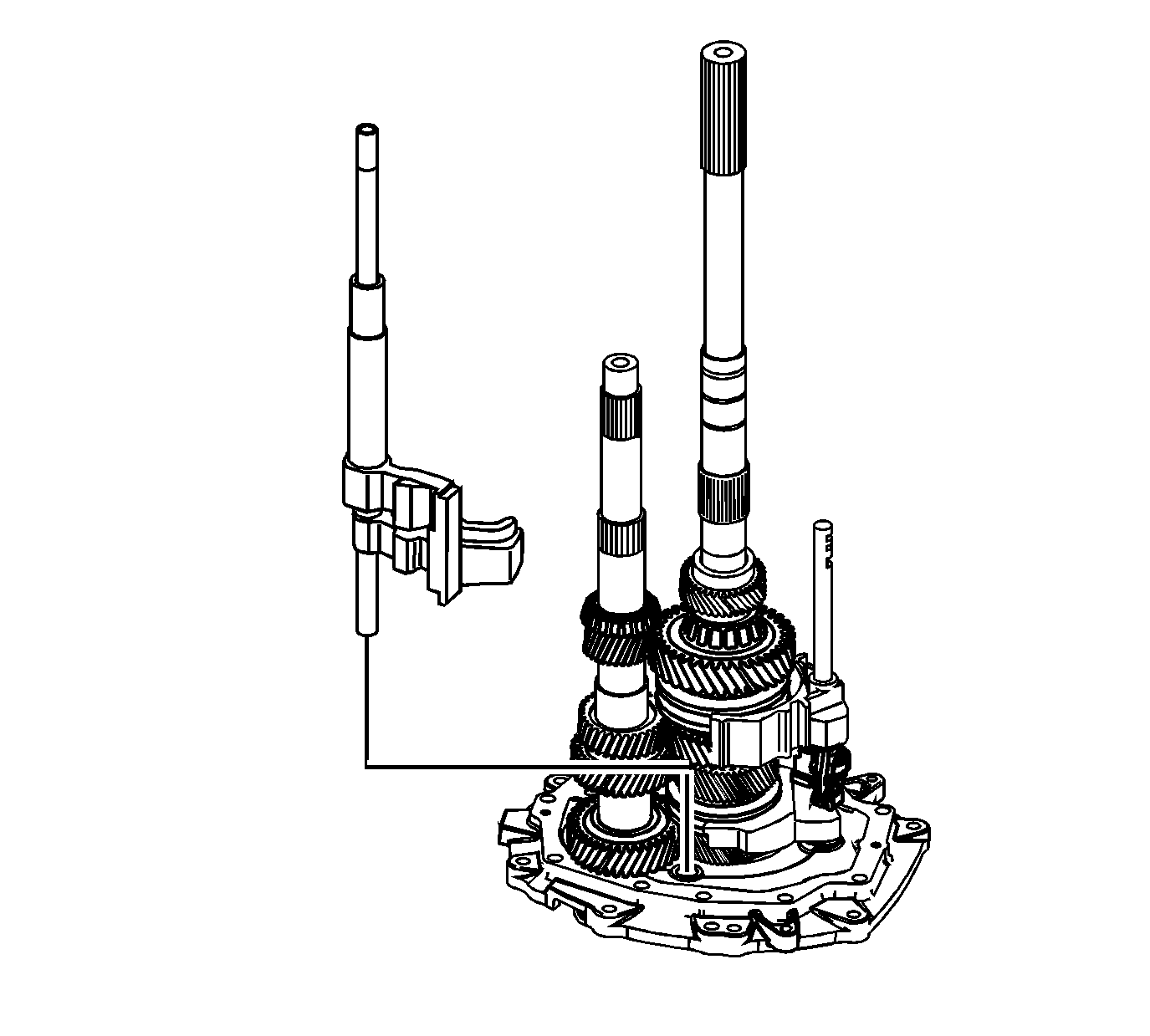

    Fig 1: View of 5th/6th and Reverse Shift Shaft
    GM1938358Courtesy of GENERAL MOTORS CORP.
  1. Rotate the 5th/6th and the reverse shift shaft levers off the shift interlock plate.
  2. Remove the 5th/6th and the reverse shift shaft assembly.

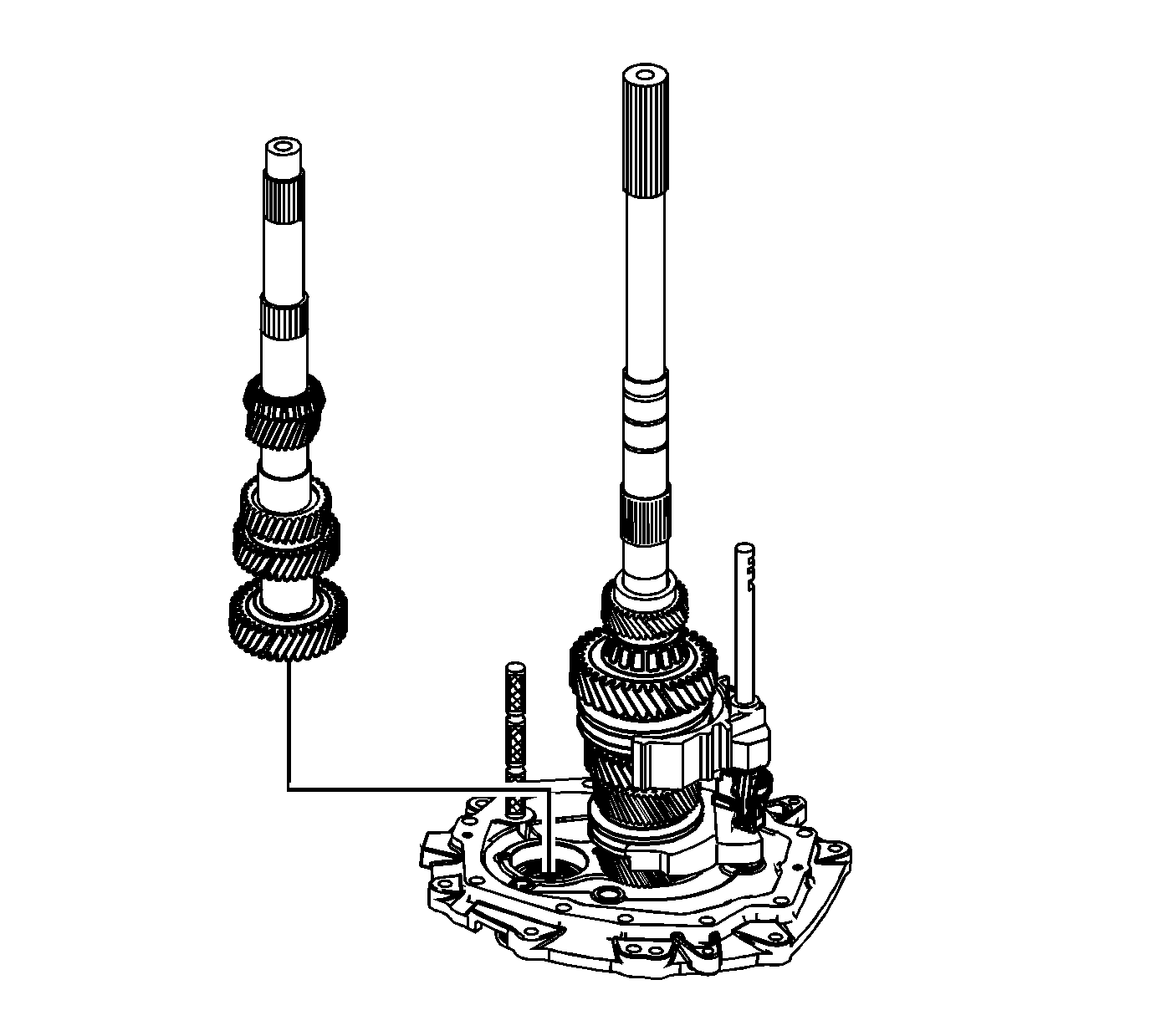

    3. Fig 2: View Of Countershaft Assembly
    GM1938364Courtesy of GENERAL MOTORS CORP.
  3. Remove the countershaft. Lift up the mainshaft enough in order to remove the countershaft.
    4. Fig 3: Identifying Mainshaft And Shift Shaft Components
    GM1938366Courtesy of GENERAL MOTORS CORP.
  4. Remove the mainshaft and the shift shaft components as an assembly.
    5. NOTE: When removing the shift shaft be careful not to lose the dowel pin.
  5. Remove the shift shaft assembly from the mainshaft.

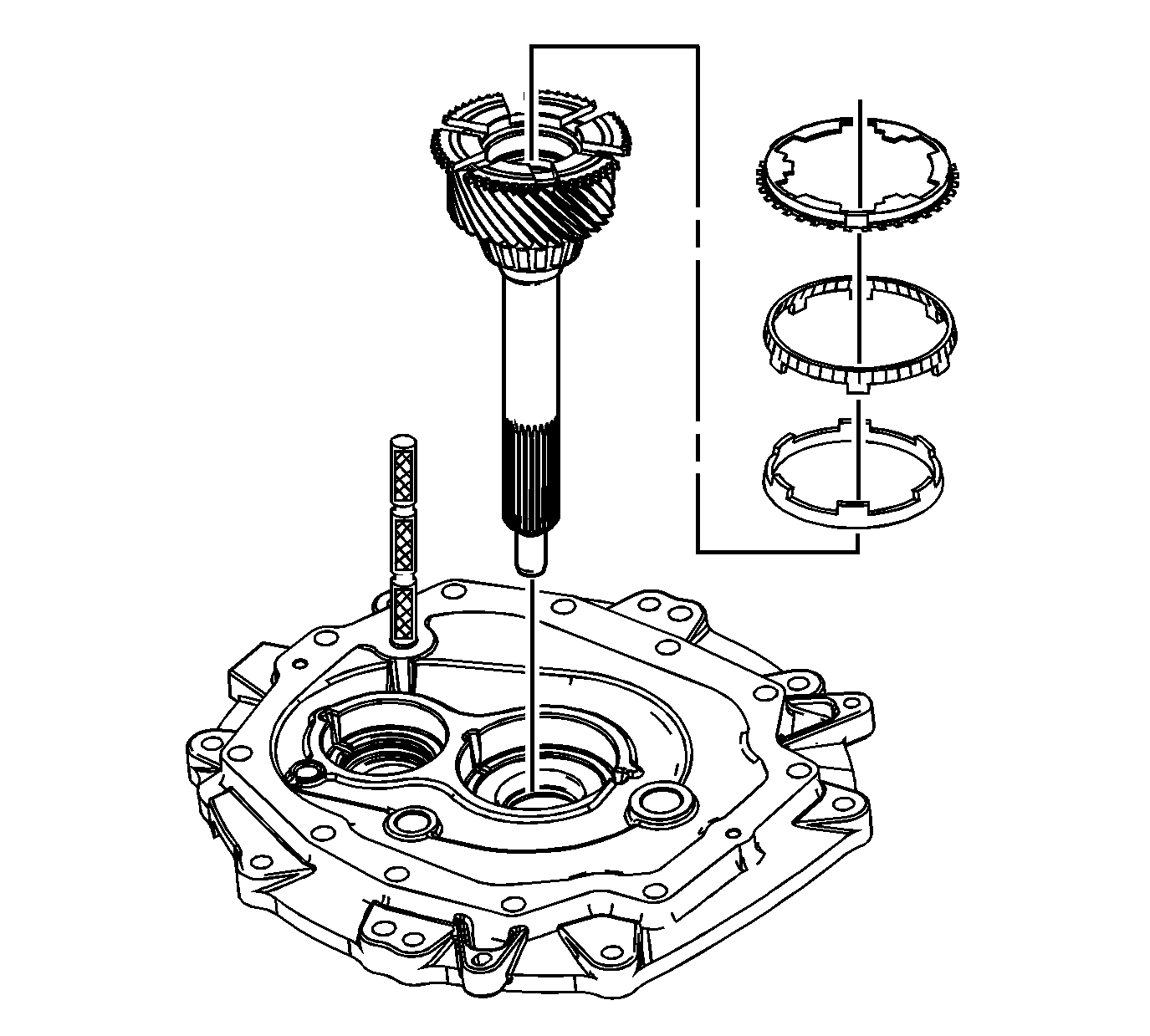

    6. Fig 4: View Of 4th Gear Synchronizer Blocking Ring, Intermediate Cone, Inner Cone And Input Shaft
    GM1887568Courtesy of GENERAL MOTORS CORP.
  6. Remove the following components from the adapter plate:
    • 4th gear synchronizer blocking ring
    • 4th gear intermediate cone
    • 4th gear inner cone
    • Input shaft
