Reverse Speed Gear Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Rear Bearing Retainer Ring, Spacer, Mainshaft Rear Roller Bearing
    GM1938345Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear bearing retainer ring.
  2. Remove the spacer.
  3. Remove the mainshaft rear roller bearing.
  4. Remove the spacer.

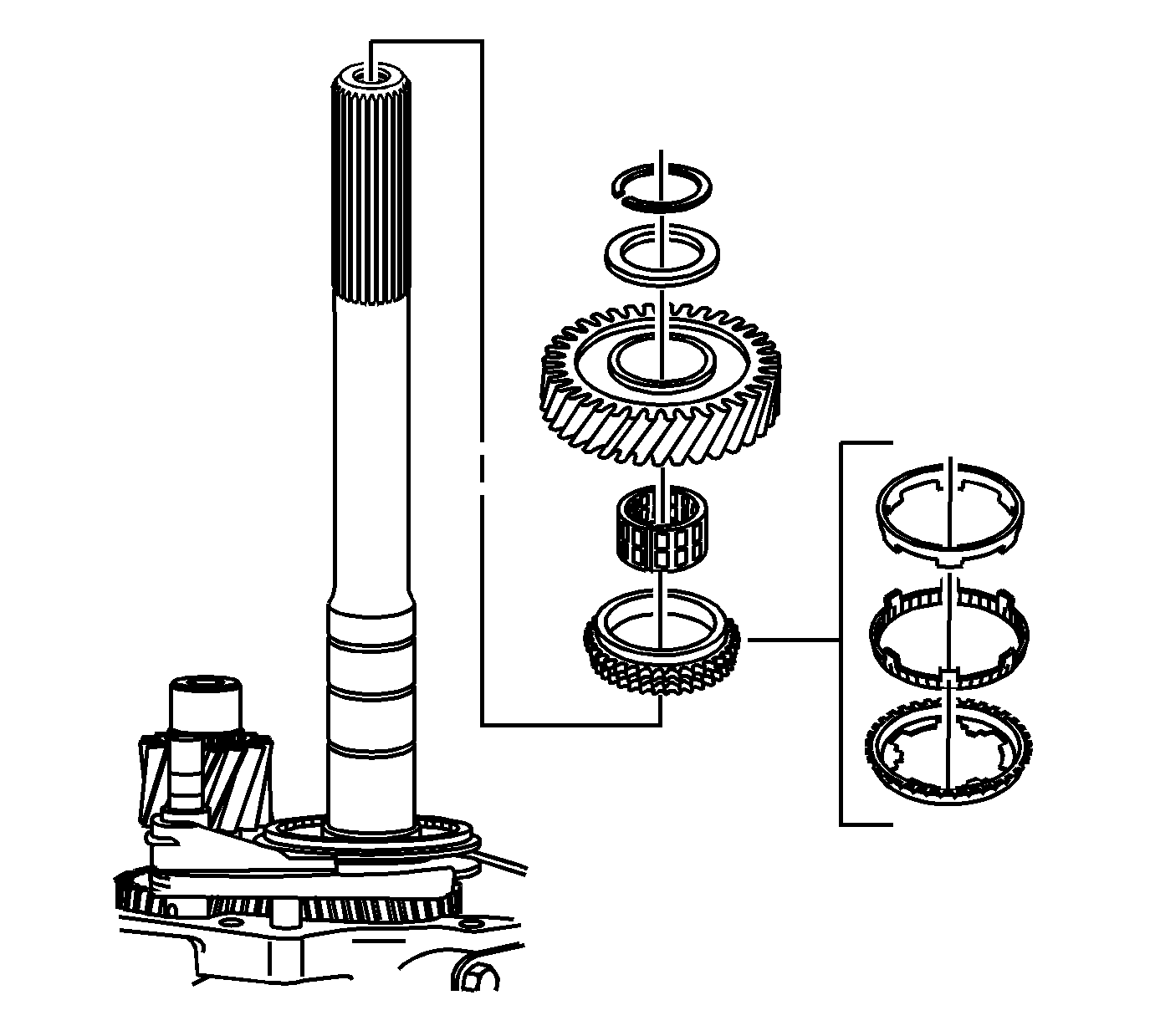

    5. Fig 2: View Of Reverse Gear Thrust Washer, Gear, Gear Caged Needle Bearing And Inner Cone
    GM1938349Courtesy of GENERAL MOTORS CORP.
  5. Remove the retainer ring.
  6. Remove the reverse gear thrust washer.
  7. Remove the reverse gear.
  8. Remove the reverse gear caged needle bearing.
  9. Remove the reverse drive gear inner cone.
  10. Remove the reverse drive gear intermediate cone.
  11. Remove the reverse gear synchronizer blocking ring.
