Reverse Shift Fork Removal

WARNING: This page is about a different variant/trim than selected.

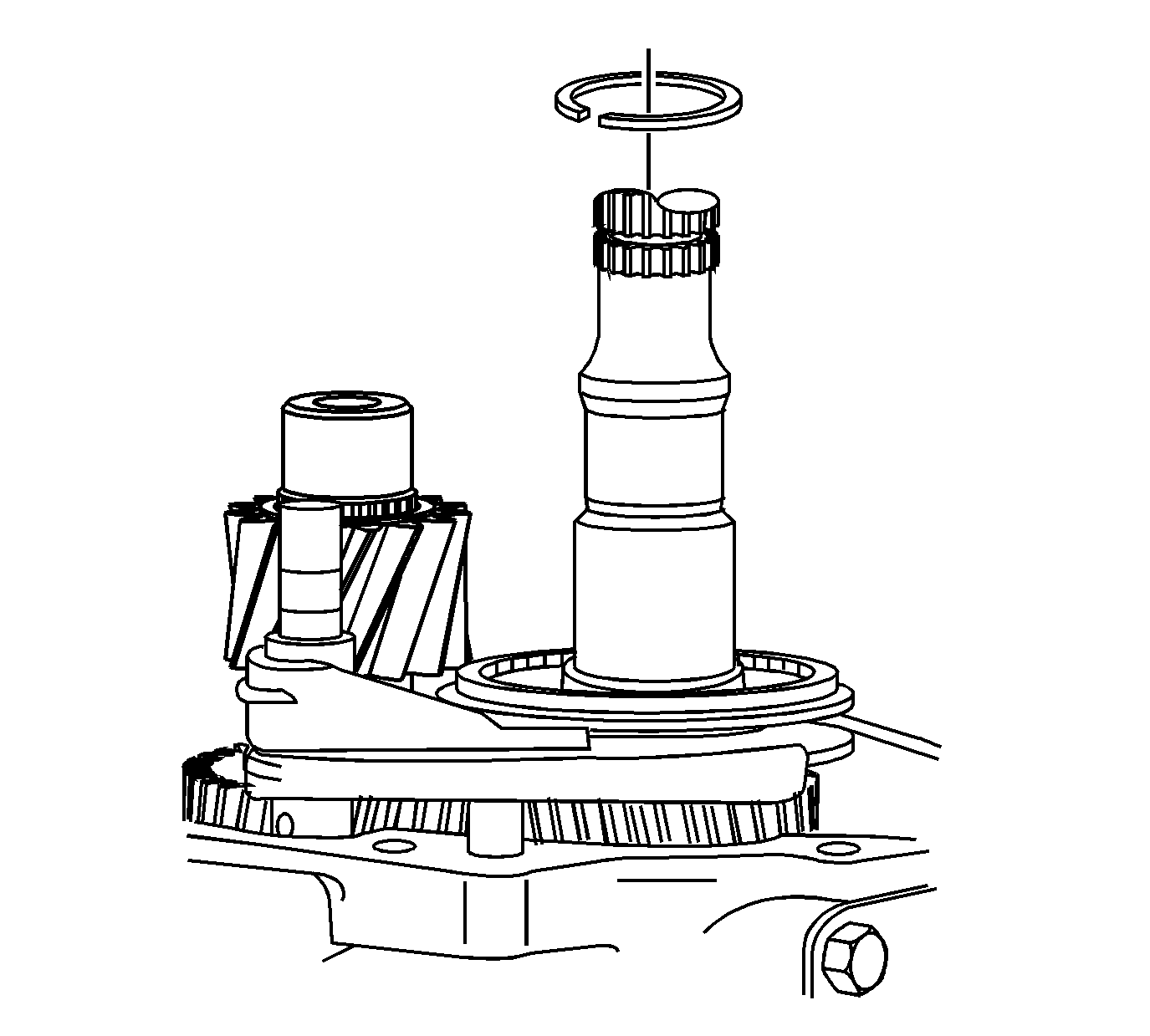

    Fig 1: View Of Reverse Synchronizer Retainer Ring
    GM1746825Courtesy of GENERAL MOTORS CORP.
  1. Remove the reverse synchronizer retainer ring.

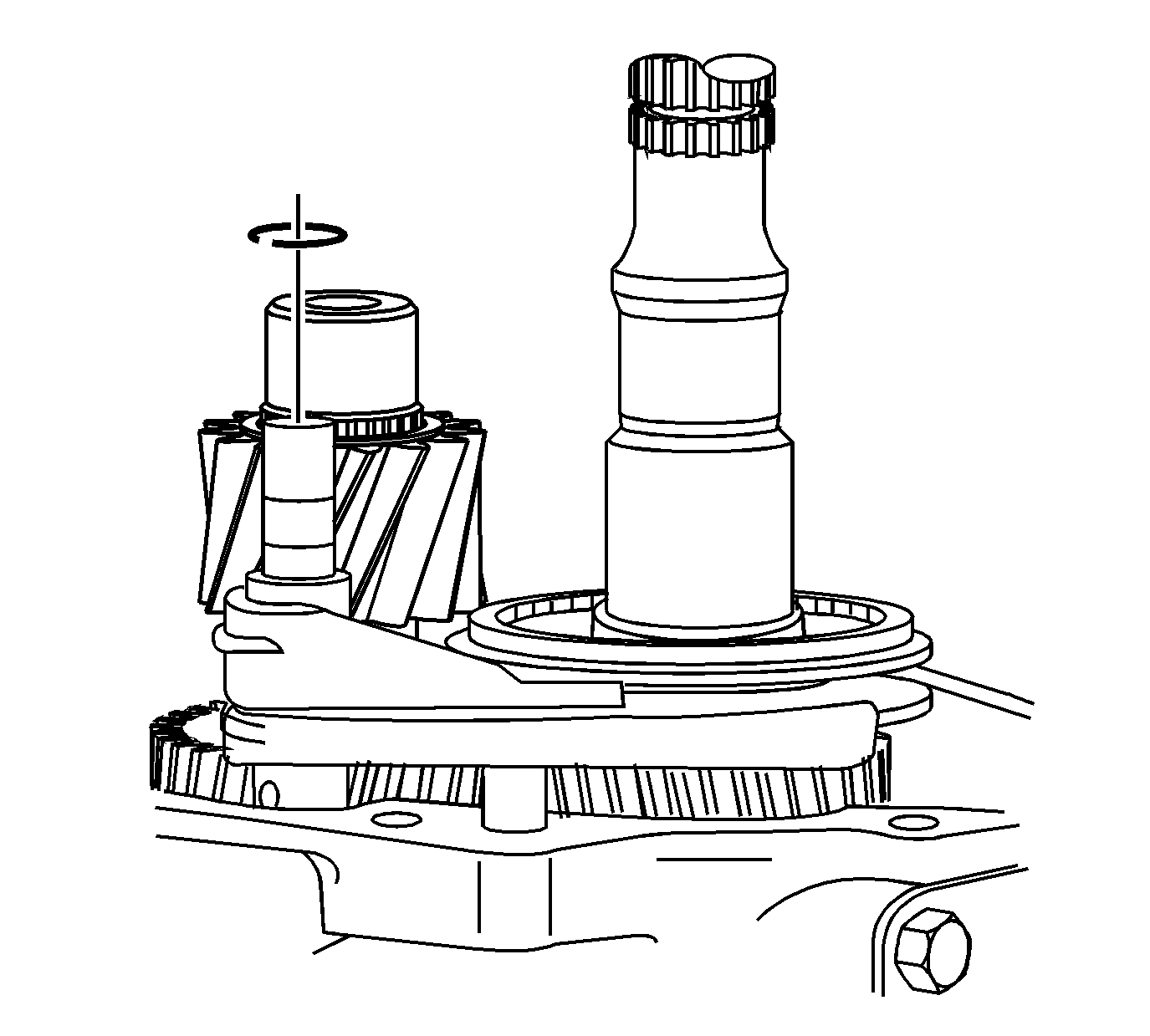

    2. Fig 2: View Of Reverse Shift Fork Retainer Ring
    GM1746826Courtesy of GENERAL MOTORS CORP.
  2. Remove and discard the reverse shift fork retainer ring.
    3. Fig 3: View Of Alignment Marks On Synchronizer Hub & Synchronizer Sleeve
    GM4810Courtesy of GENERAL MOTORS CORP.
  3. Scribe a mark on the synchronizer hub and on the sleeve. This will help you to reinstall the parts in the same position.
    4. Fig 4: View Of Reverse Synchronizer Sleeve, Shift Fork & Inserts, Synchronizer Hub, Locking Ring & Two Piece Thrust Washer
    GM1887526Courtesy of GENERAL MOTORS CORP.
  4. Remove the following parts in order:
    1. The reverse synchronizer sleeve, shift fork, and inserts
    2. Pry to remove the reverse synchronizer hub
    3. The locking ring
    4. The two piece thrust washer
