Extension Housing Removal

WARNING: This page is about a different variant/trim than selected.

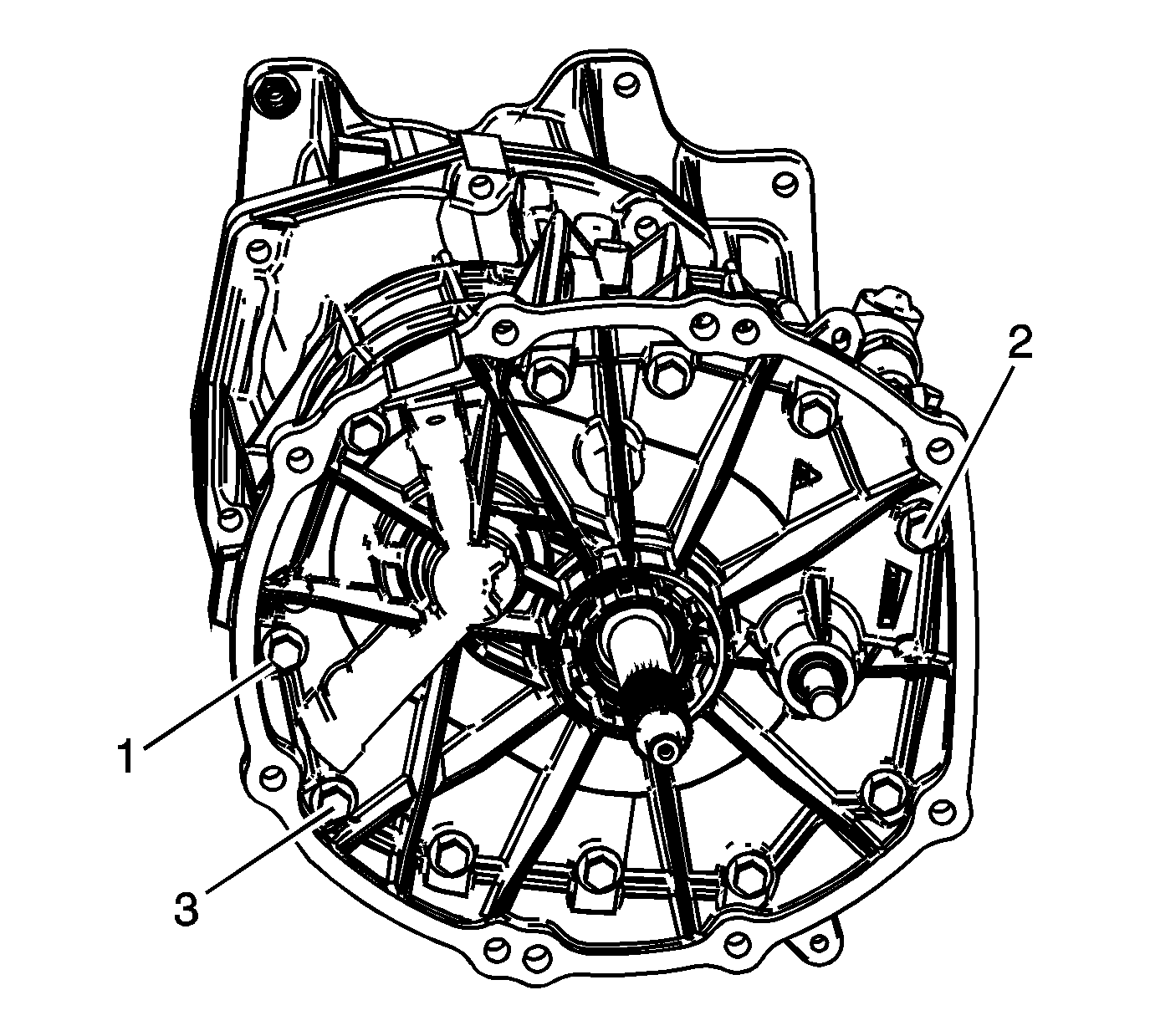

    Fig 1: View Of Adapter Plate Bolts
    GM1887522Courtesy of GENERAL MOTORS CORP.
  1. Remove the adapter plate bolts (1, 2, and 3).

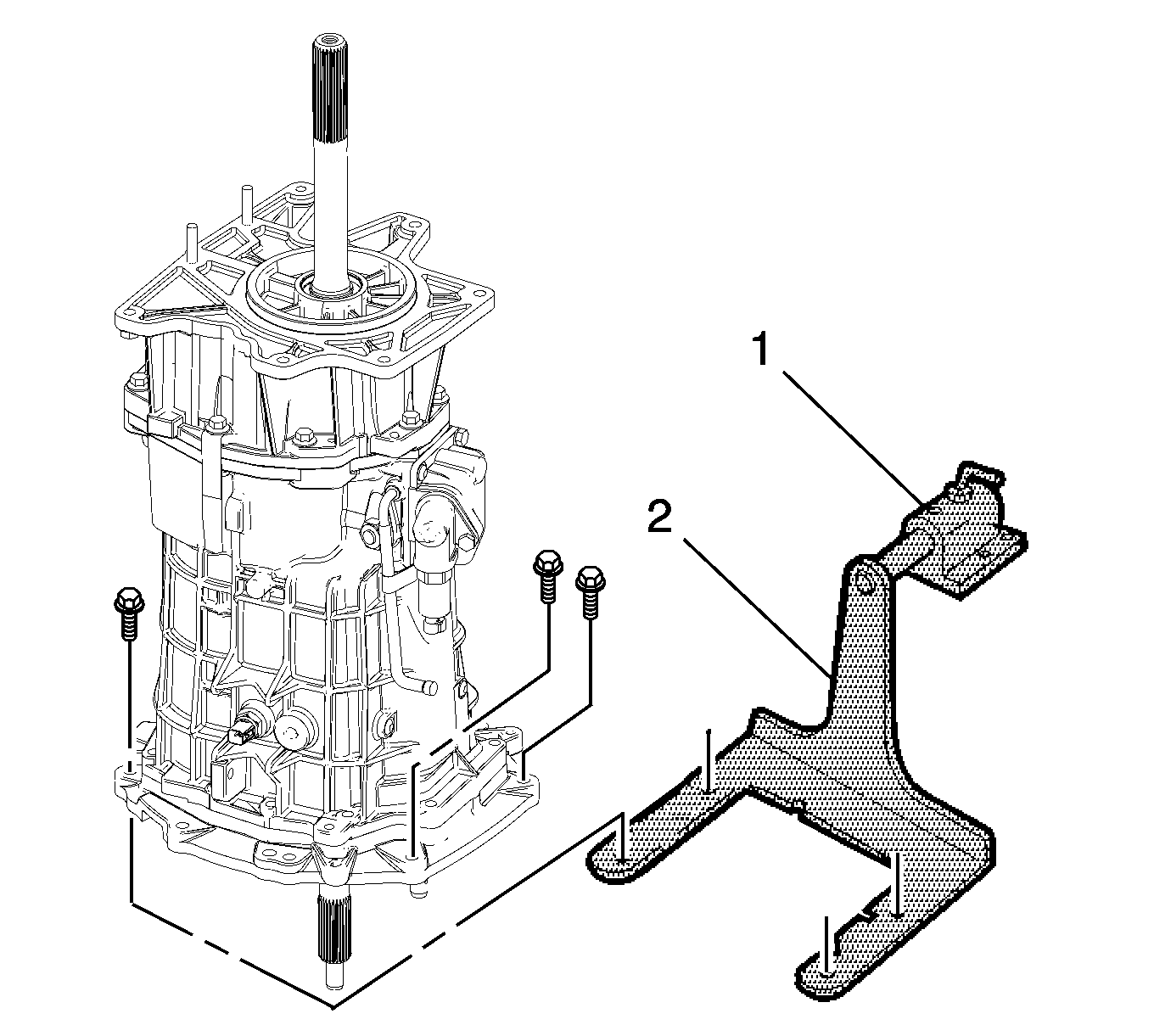

    2. Fig 2: Identifying J-44395-10
    GM1938293Courtesy of GENERAL MOTORS CORP.
  2. Install the J 44395-A:  holding fixture (2).
  3. Mount the transmission on a workbench using the J 3289-20:  holding fixture (1).
  4. Rotate the transmission into a horizontal position.
  5. Remove the transmission drain plug and drain the transmission fluid.
  6. Shift the transmission into neutral (N).

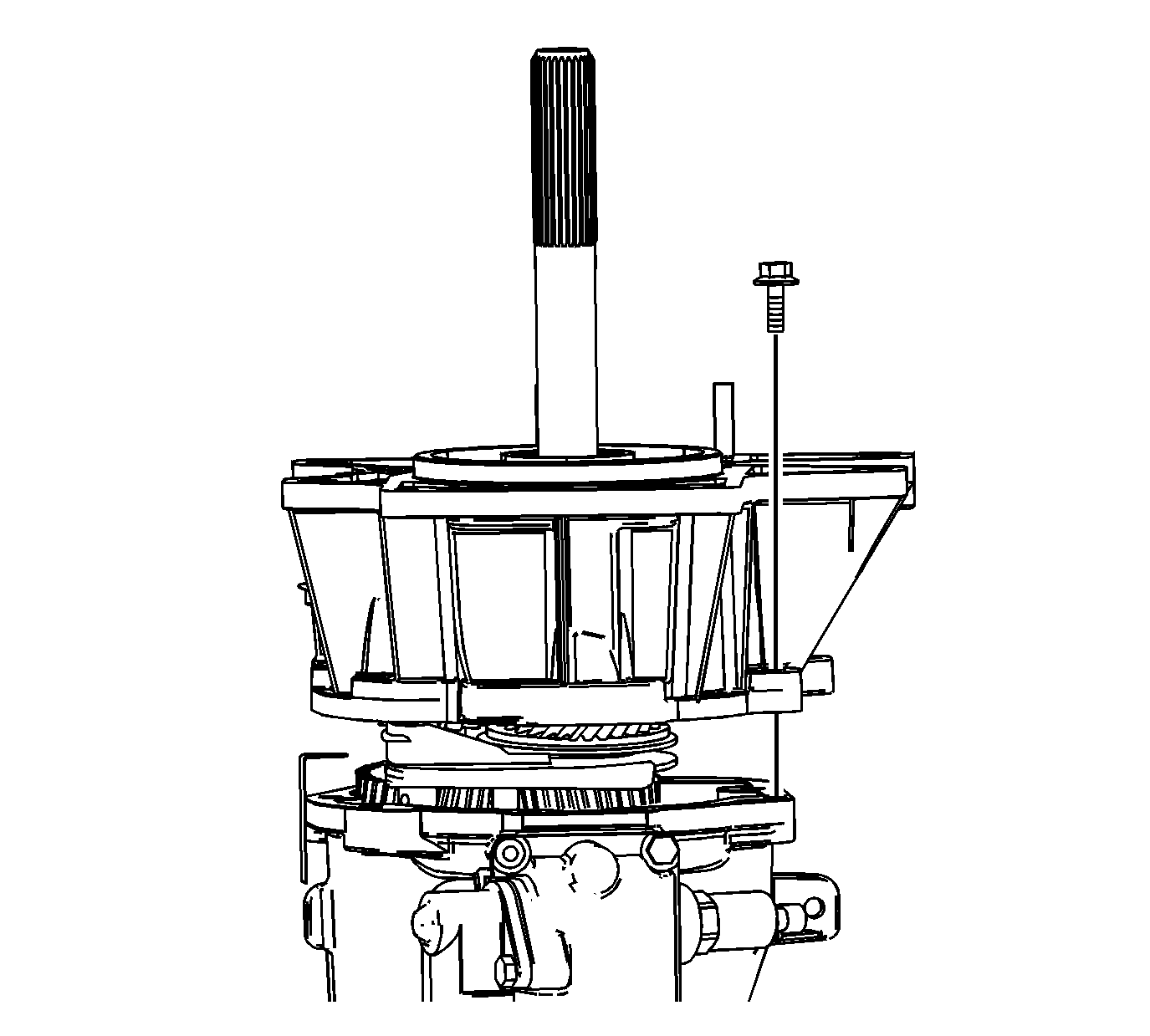

    7. Fig 3: View of 5th/6th Shift Shaft, Extension Housing Bore & Extension Housing
    GM1887524Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear extension housing bolts and the rear extension housing.
