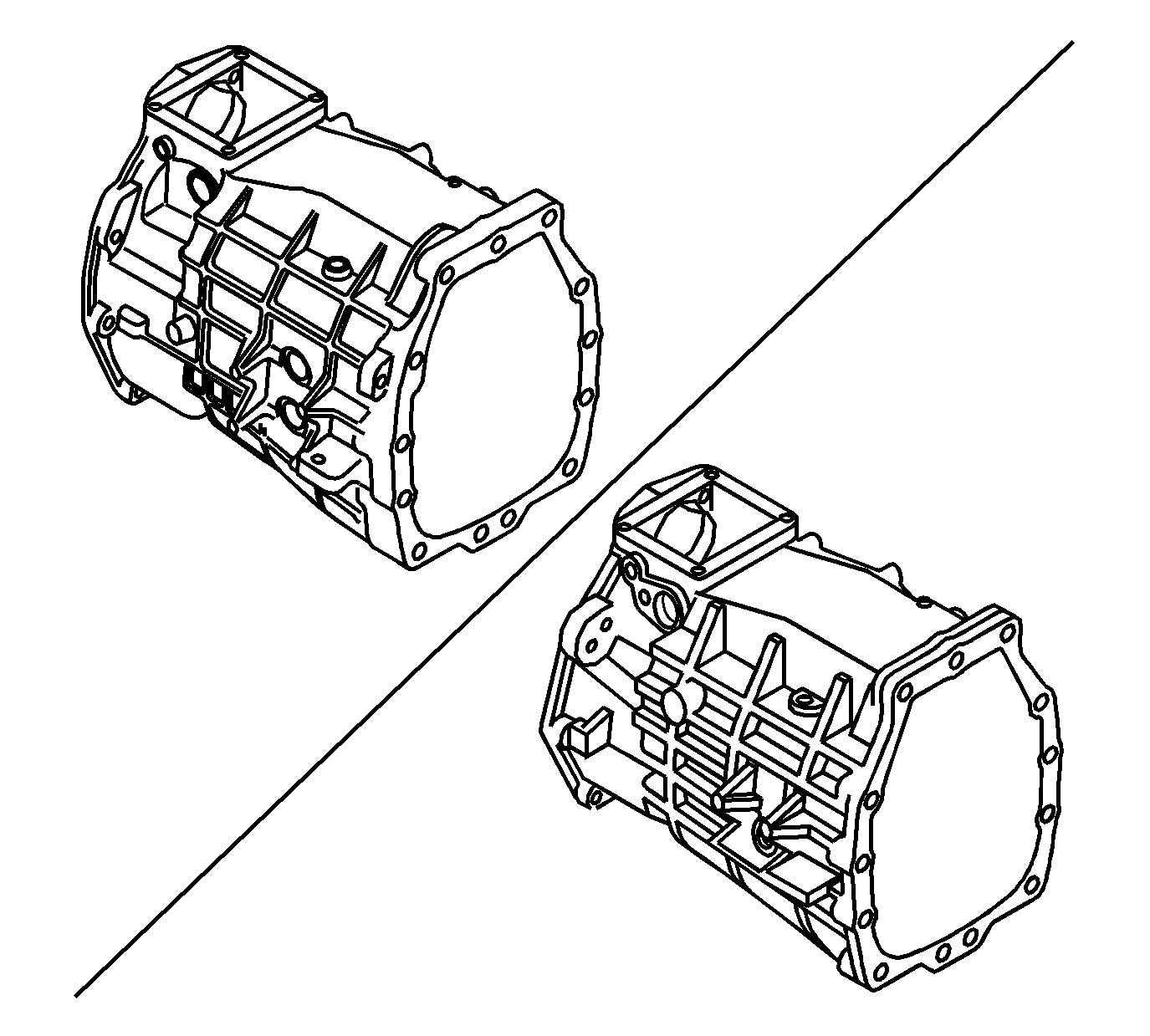

Transmission Case
WARNING: This page is about a different variant/trim than selected.
- Clean the transmission case in a suitable solvent. Air dry the transmission case.
- Clean all sealant material from retainer bolt threads.
- Inspect the transmission case for the following conditions:
- Cracks
- Scratches
- Damaged threads
- Burrs
- Nicked mounting surfaces
- Damaged sealing surfaces
- Damaged front or rear bearing bores
- Inspect the machined mating surfaces for flatness with a straight edge.
- Inspect the bearing races and bores for wear, scratches or grooves.
- Inspect the bushing for excessive wear.
- Use a fine mill file to dress minor scratches or burrs.
- If scratches, or grooves or scoring cannot be removed by hand with a soft stone or crocus cloth, replace the component.
- Clean up damaged threads with the correct size tap.
- Replace a cracked housing.
- Replace worn bushings.
