Adapter Plate

WARNING: This page is about a different variant/trim than selected.

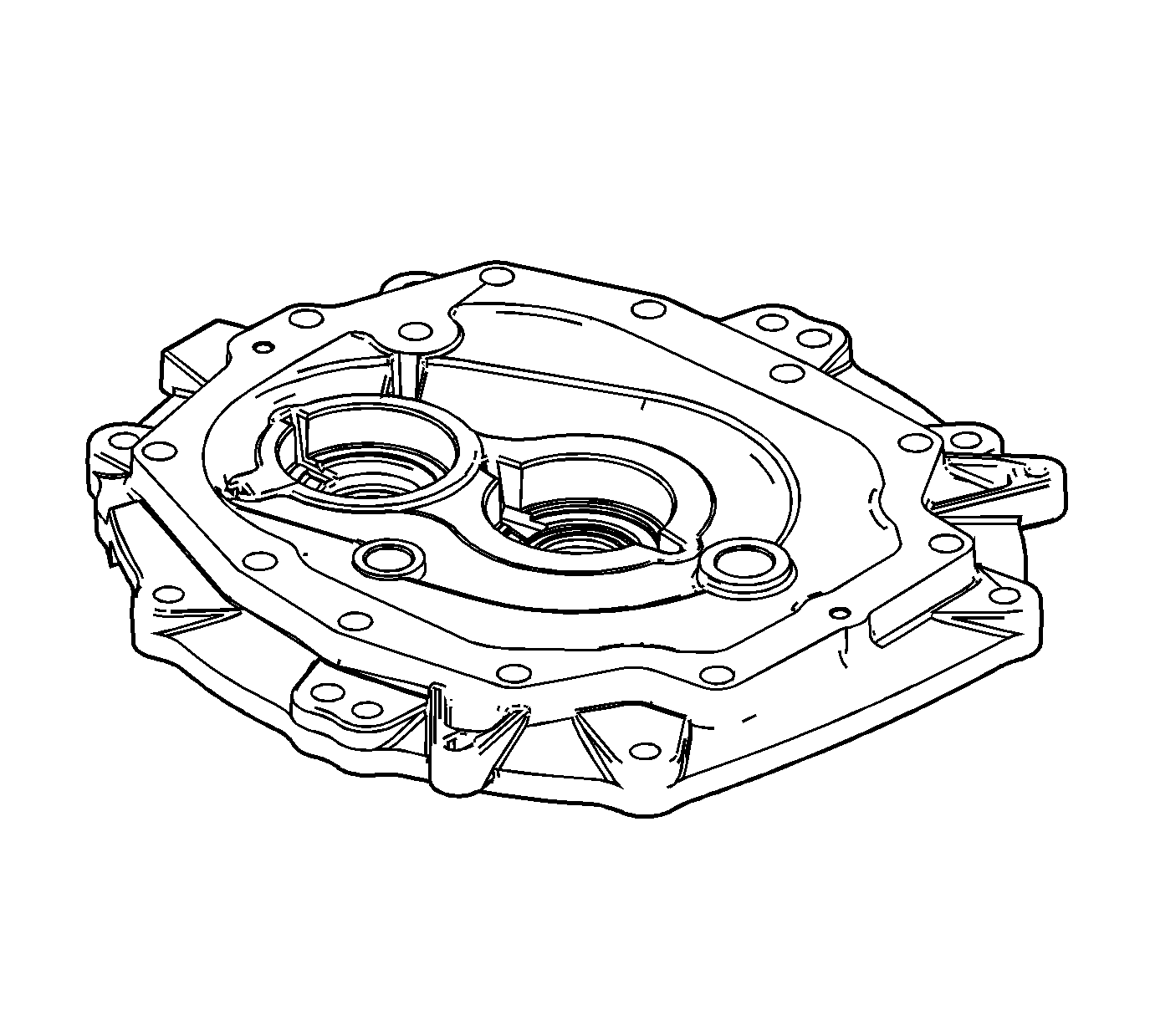

Fig 1: View of Adapter Plate Parts

Courtesy of GENERAL MOTORS CORP.

Clean the adapter plate parts with a suitable solvent. Air dry all the parts.
Inspect the adapter plate parts for the following conditions:
- Cracks
  Replace the adapter plate parts if cracks are found.
- Scratches
- Burrs
- Nicked mounting surfaces
- Damaged sealing surfaces
- Damaged front or rear bearing bores
Inspect the machined mating surfaces for flatness. Check the mating surfaces with a straight edge.
Inspect the bearing races and bores for wear, scratches or grooves.
Inspect the bushing for excessive wear. Replace worn bushings.
Use a fine mill file to dress minor scratches or burrs.
If scratches, or grooves or scoring cannot be removed by hand with a soft stone or crocus cloth, replace the component.
