Adapter Plate

WARNING: This page is about a different variant/trim than selected.

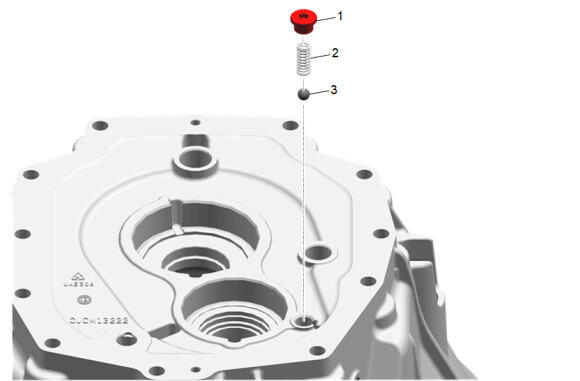

    Fig 1: Identifying Plug & Spring
    GM1938426Courtesy of GENERAL MOTORS CORP.
  1. Install the check ball (3).
  2. Install the spring (2).
  3. Install the plug (1).

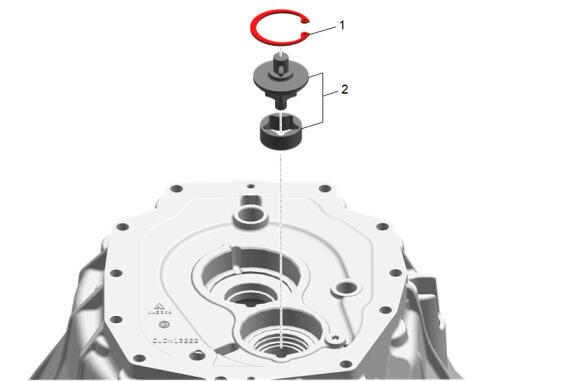

    4. Fig 2: Identifying Oil Pump & Oil Pump Cover Assembly
    GM1938423Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pump (3).
  5. Install the oil pump cover assembly (2).
  6. Install the retainer ring (1).

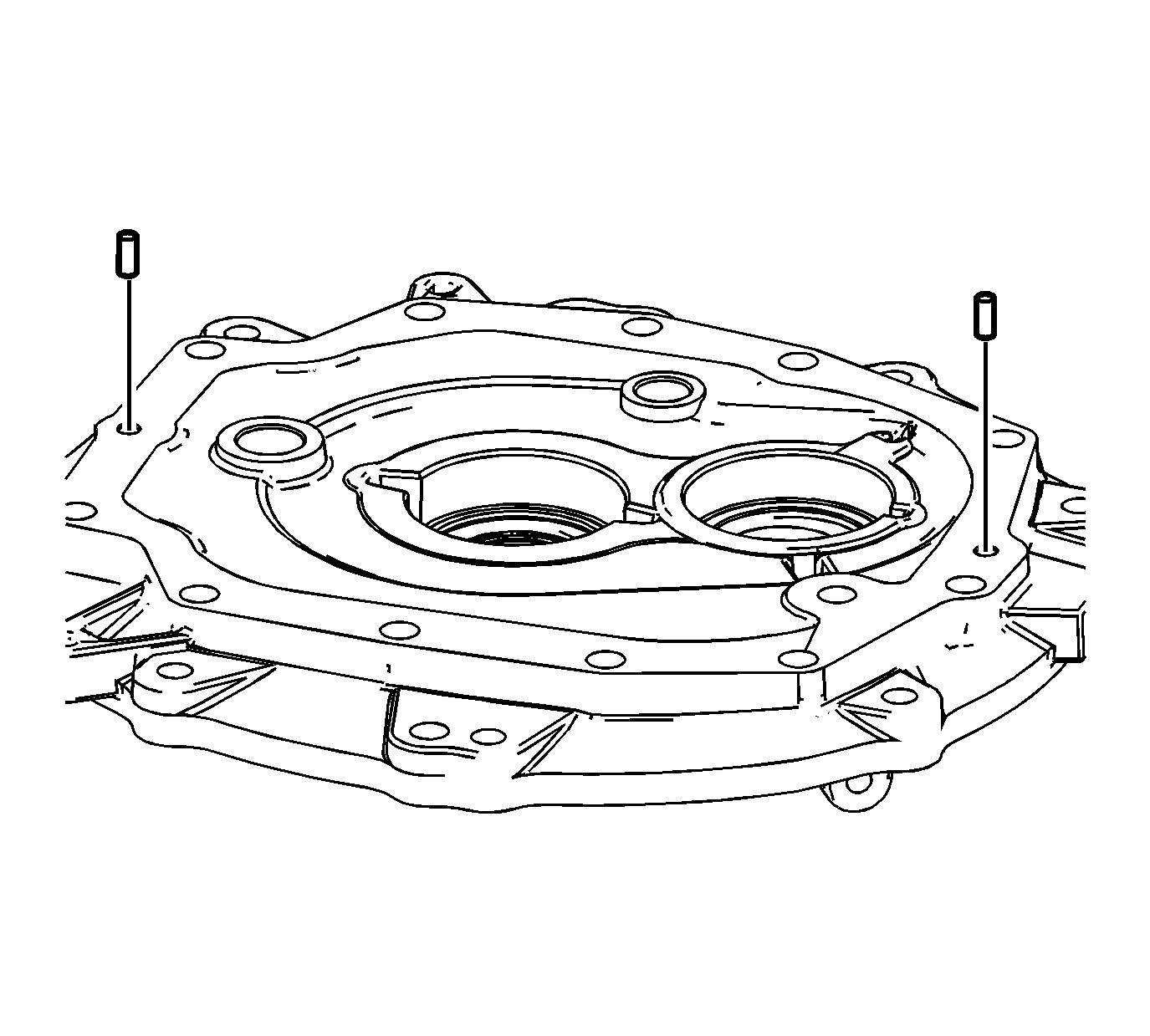

    7. Fig 3: Identifying Dowel Pins
    GM1887604Courtesy of GENERAL MOTORS CORP.
  7. Install the dowel pins.

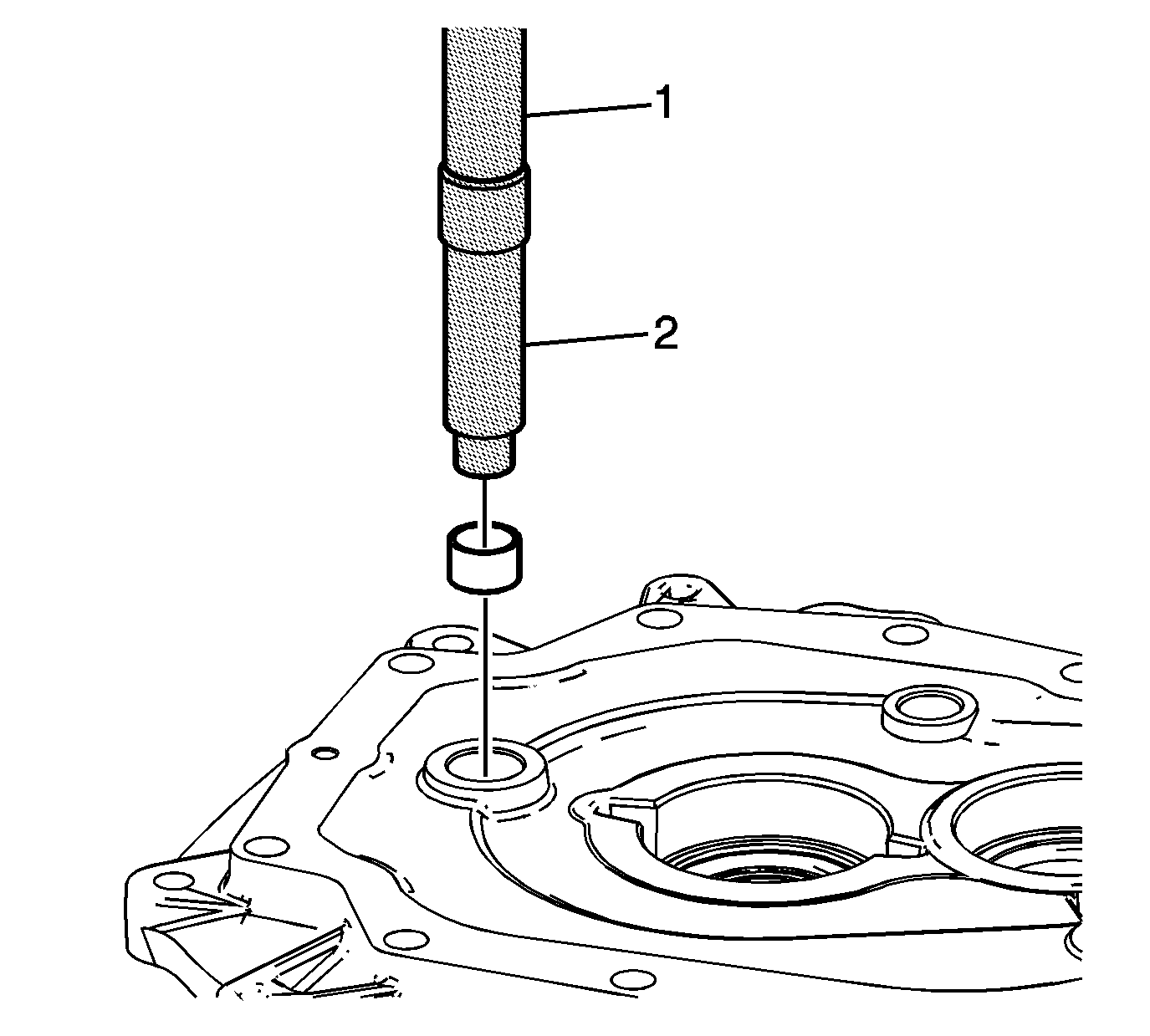

    8. Fig 4: Identifying 1st/2nd, 3rd/4th Speed Shift Shaft Bushing Flush With Adapter Plate & Special Tool J 39439-3
    GM1887606Courtesy of GENERAL MOTORS CORP.
    CAUTION: If the 1st/2nd, 3rd/4th speed shift shaft bushing is installed incorrectly it will interfere with the inner shift rail seal causing a leak.
  8. Install the 1st/2nd, 3rd/4th speed shift shaft bushing flush with adapter plate, using the J 39439-3:  bushing installer (2) and J 36190:  universal driver handle (1).

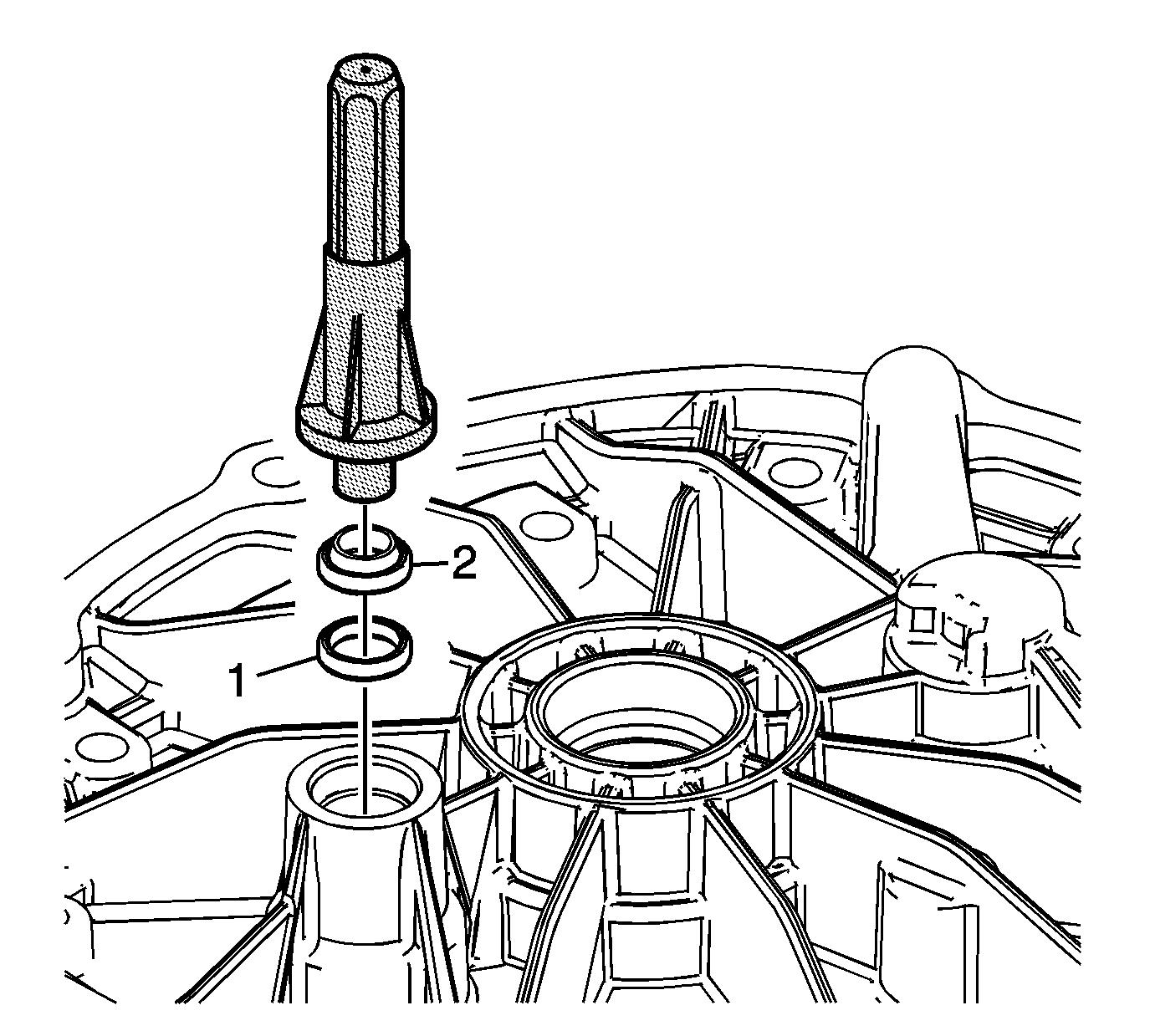

    9. Fig 5: Identifying Inner Seal, Outer Seal & Special Tool J 42496
    GM1938439Courtesy of GENERAL MOTORS CORP.
  9. Load the inner seal (1) and the outer seal (2) onto J 42496:  seal installer.
  10. Install the shift rail seal (1 and 2) using J 42496:  seal installer.

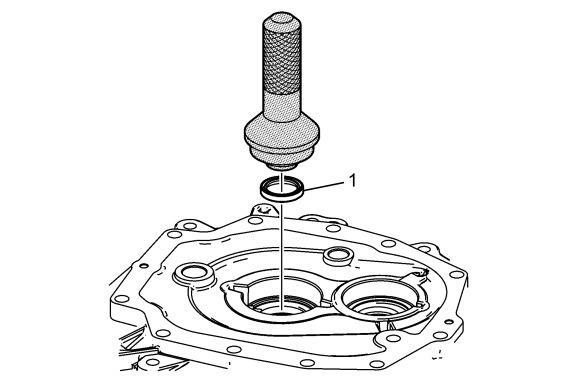

    11. Fig 6: View Of Input Shaft Seal & Special Tool J 39433
    GM1887607Courtesy of GENERAL MOTORS CORP.
  11. Install the input shaft seal, using the J 39433:  shaft seal installer.

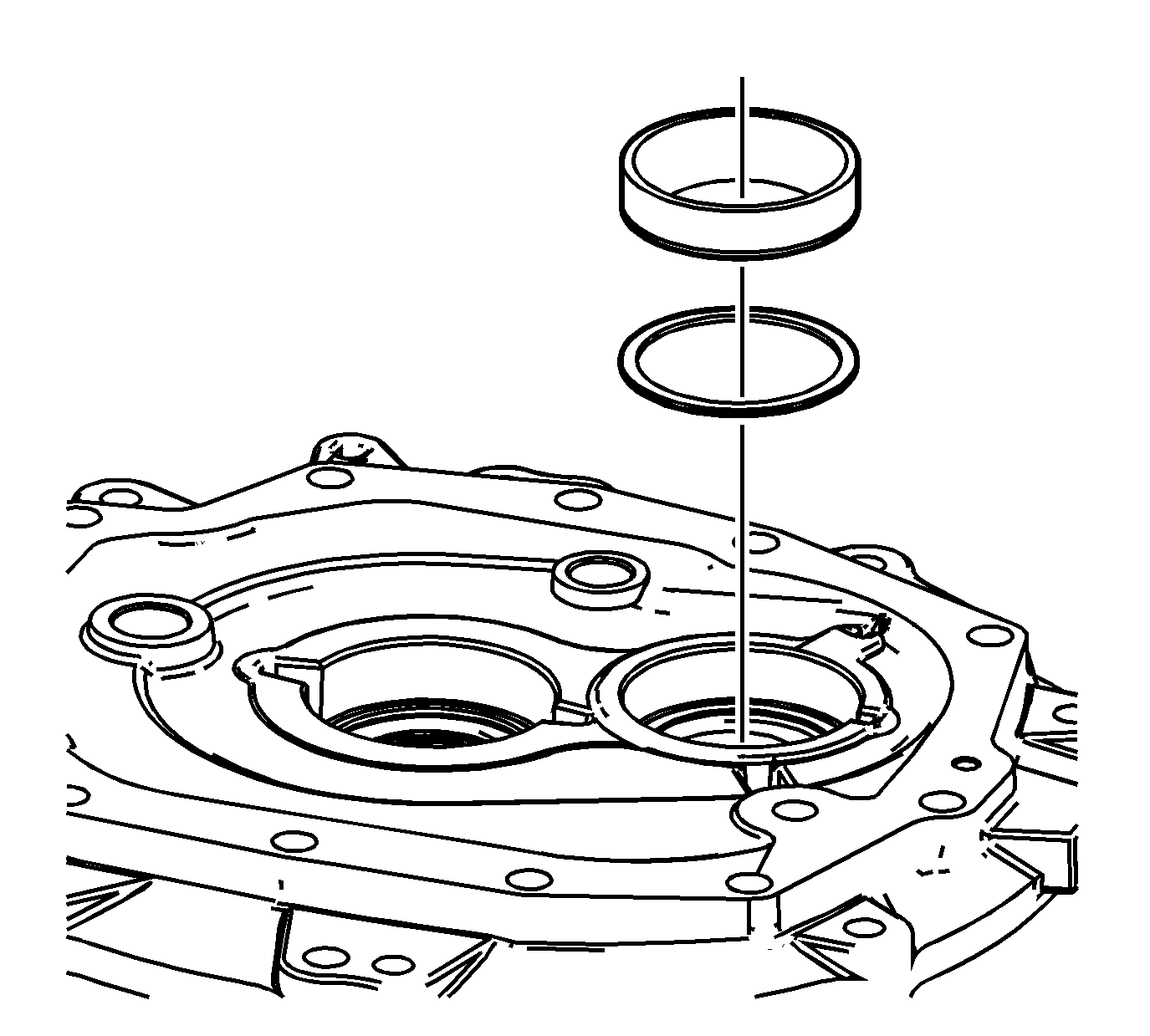

    12. Fig 7: View Of Countershaft Bearing Shim & Bearing Race
    GM1887598Courtesy of GENERAL MOTORS CORP.
  12. Install the countershaft bearing shim and bearing race. Refer to Input Shaft, Mainshaft and Countershaft in Shimming Procedures .

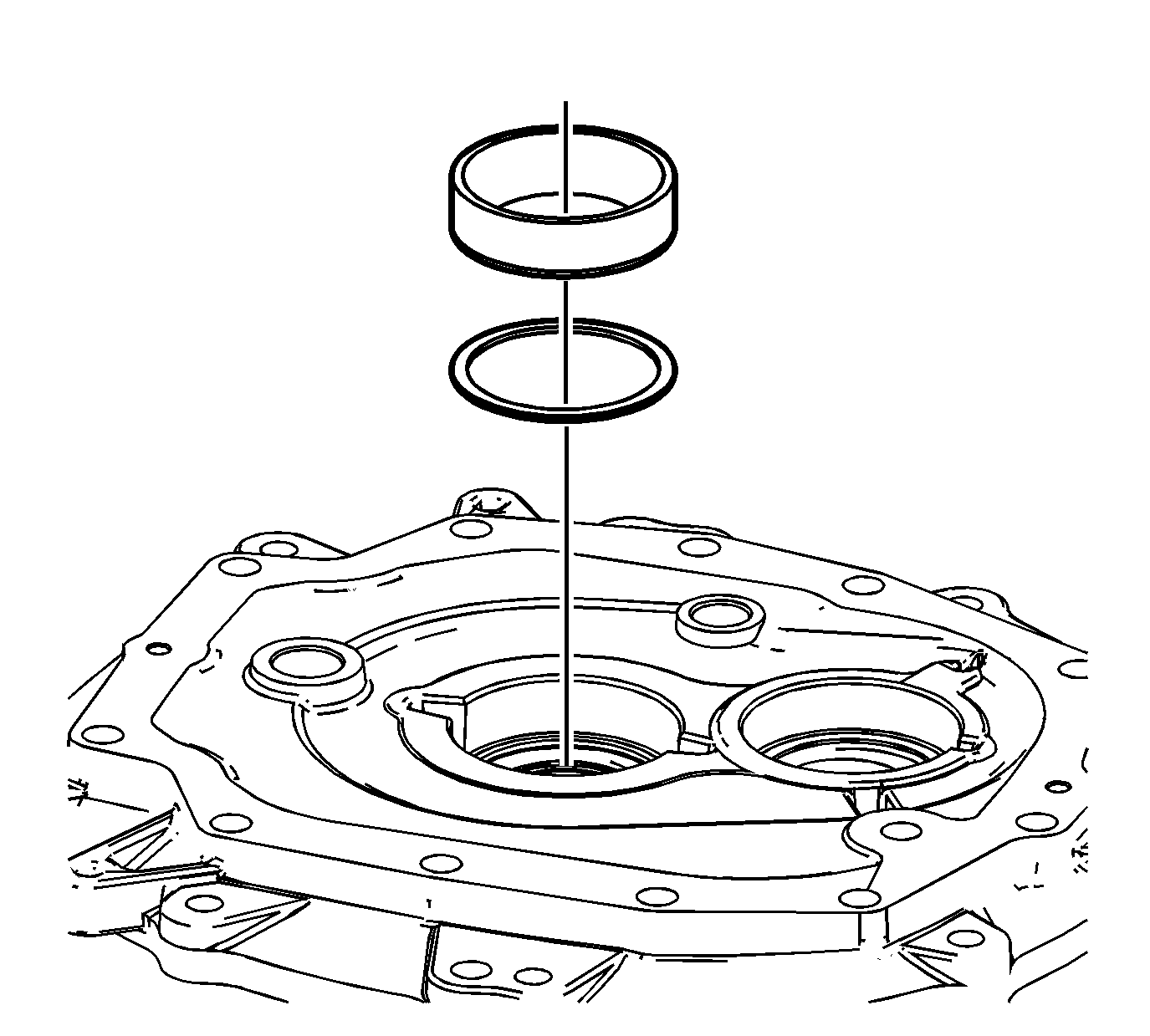

    13. Fig 8: View Of Countershaft Bearing Shim & Bearing Race
    GM1887596Courtesy of GENERAL MOTORS CORP.
  13. Install the input shaft bearing shim and bearing race. Refer to Input Shaft, Mainshaft and Countershaft in Shimming Procedures .

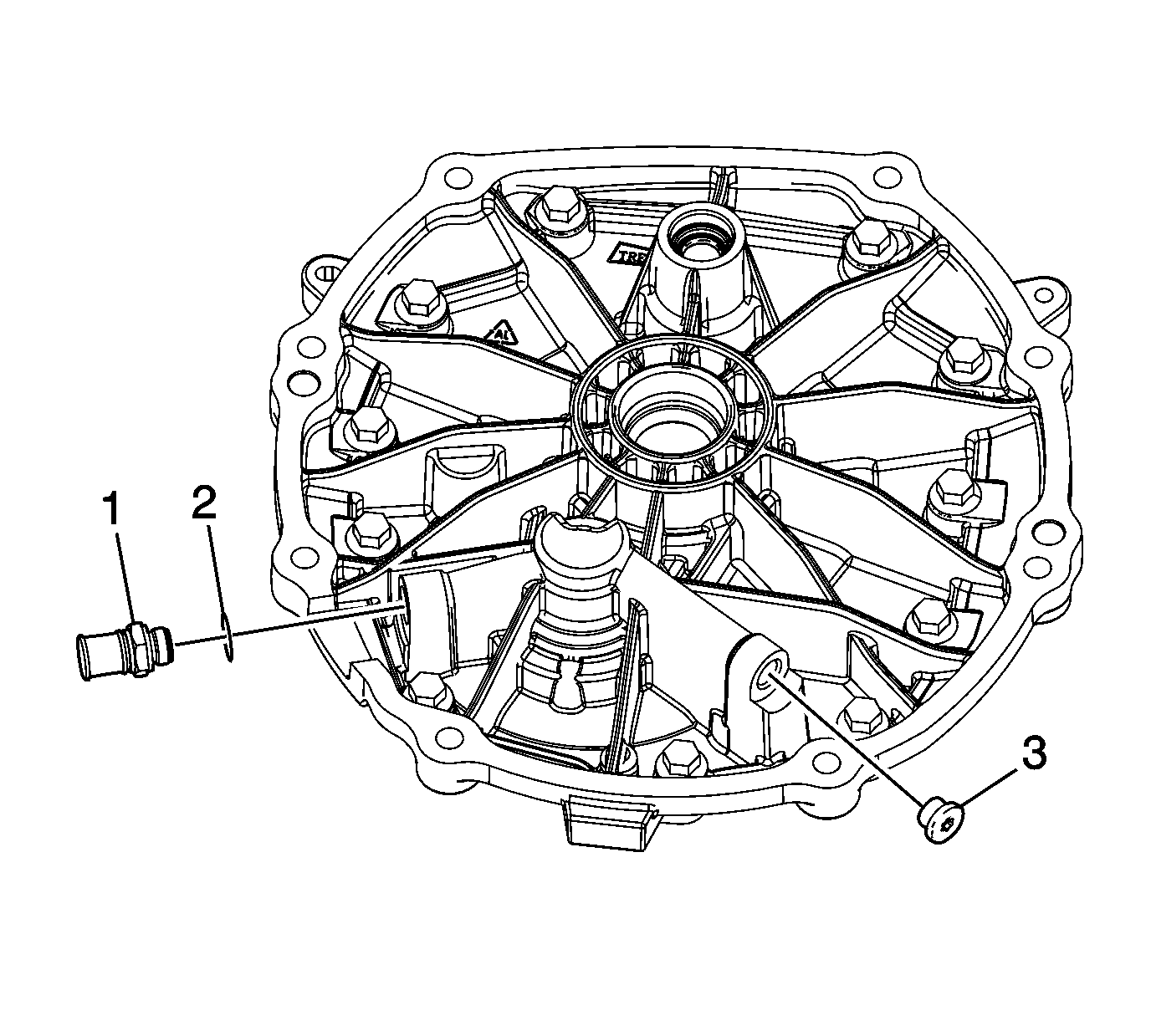

    14. Fig 9: View Of Adapter Plate Pump Plug
    GM1998735Courtesy of GENERAL MOTORS CORP.
  14. Install the adapter plate pump plug (3).
  15. Install the pump outlet cooler fitting seal (2) and fitting (1).

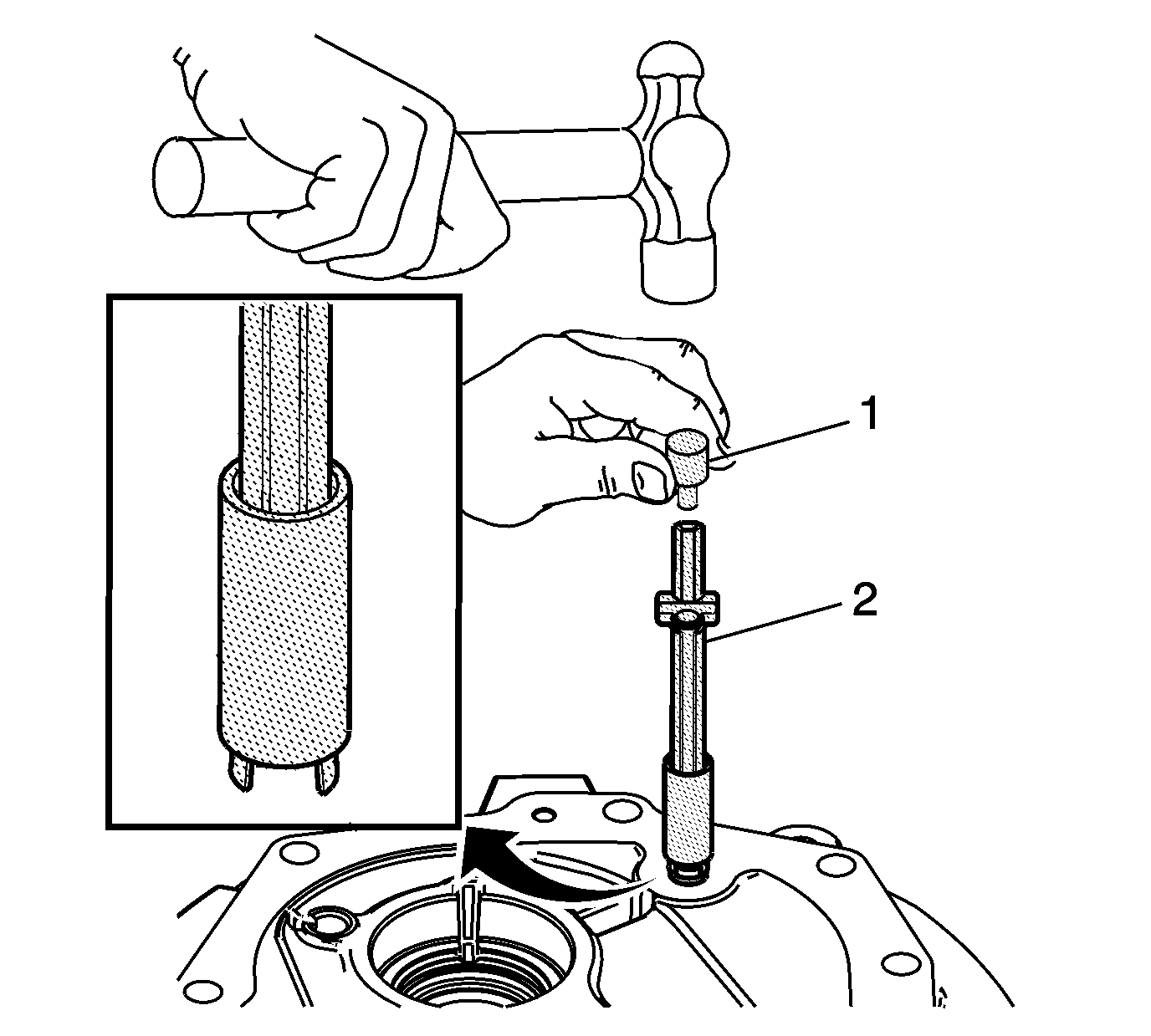

    16. Fig 10: View Of Oil Filter Assembly With Special Tool J 36017 & Adapter Plate
    GM1938441Courtesy of GENERAL MOTORS CORP.
  16. Attach J 36017:  seal remover within the groove at the base of the oil filter assembly. Slide the collar of the tool down to grasp the oil filter assembly.
  17. Place the oil filter assembly with J 36017:  seal remover (2) attached onto the adapter plate.
  18. Using J 39442:  press adapter (1), tap the oil filter assembly into place with a hammer. Remove J 36017:  seal remover (2).
