1st/2nd, 3rd/4th Shift Rail Assembly

WARNING: This page is about a different variant/trim than selected.

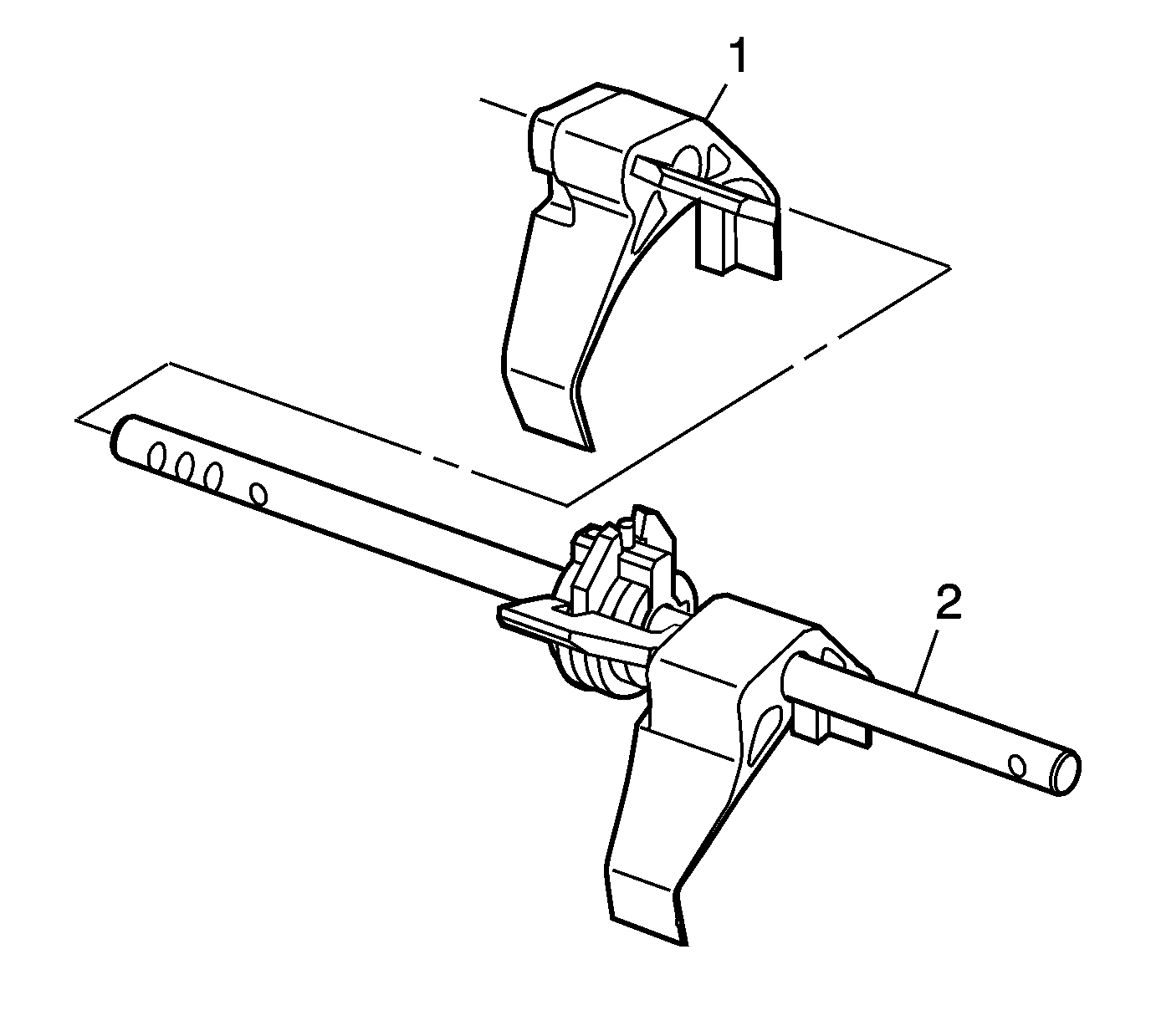

    Fig 1: View Of 1st/2nd Shift Fork On The Shift Shaft
    GM1887583Courtesy of GENERAL MOTORS CORP.
  1. Remove the 1st/2nd shift fork (1) from the shift shaft (2).
    2. Fig 2: View Of 3rd/4th Shift Fork & Shift Shaft
    GM1887585Courtesy of GENERAL MOTORS CORP.
  2. Remove the 3rd/4th shift fork (2) from the shift shaft (1).
    3. Fig 3: View Of Interlocking Plate & Selector Pin
    GM1938391Courtesy of GENERAL MOTORS CORP.
  3. Remove the interlocking plate (2) from the selector pin (1).
    4. Fig 4: View Of Selector Pin & Shift Shaft
    GM1938392Courtesy of GENERAL MOTORS CORP.
  4. Remove the selector roll pin (3).
  5. Remove the selector pin (2) from the shift shaft (1).
