Shift Shaft and Fork Assemblies Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

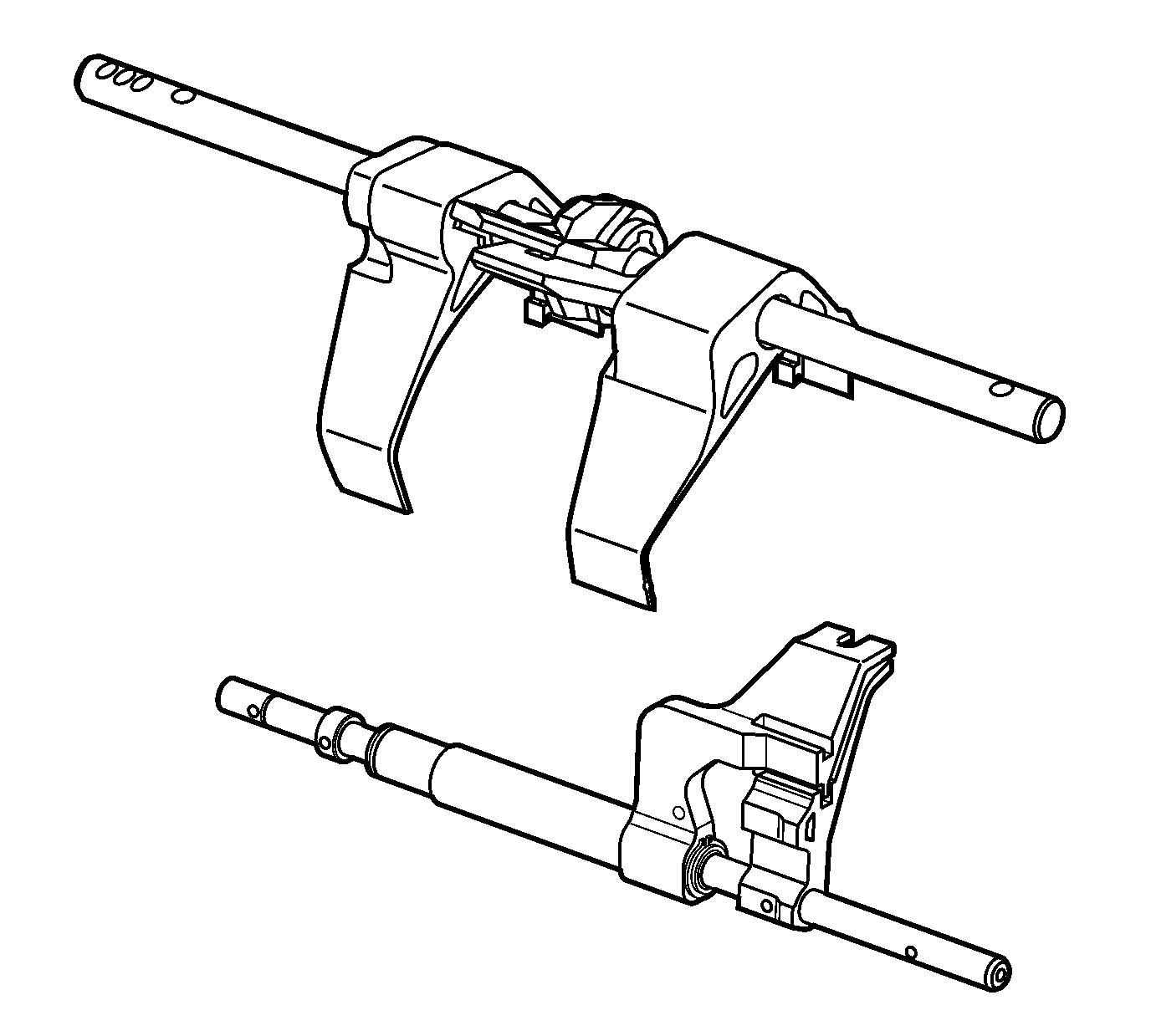

    Fig 1: View Of Shift Shaft & Fork Assembly Parts
    GM1887588Courtesy of GENERAL MOTORS CORP.
  1. Clean the shift shaft and fork assembly parts with a suitable solvent. Air dry all the parts.

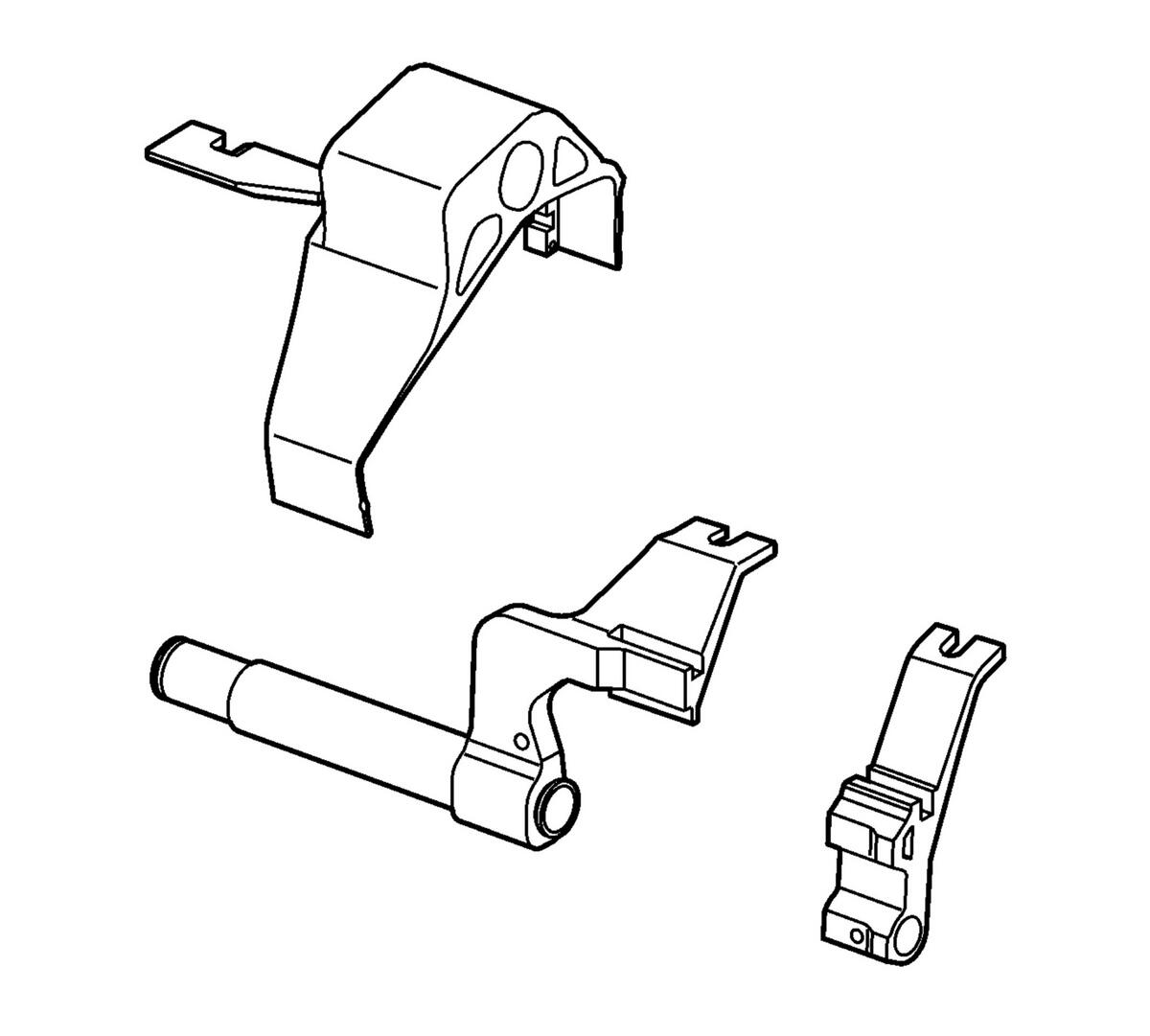

    2. Fig 2: View Of Shift Forks And Shift Links
    GM1887591Courtesy of GENERAL MOTORS CORP.
  2. Inspect the shift forks and the shift links for excessive wear, fractures or distortion.
    3. Fig 3: View Of Shift Shaft Lever Bushing
    GM463422Courtesy of GENERAL MOTORS CORP.
  3. Inspect the shift shaft lever bushings for excessive wear.

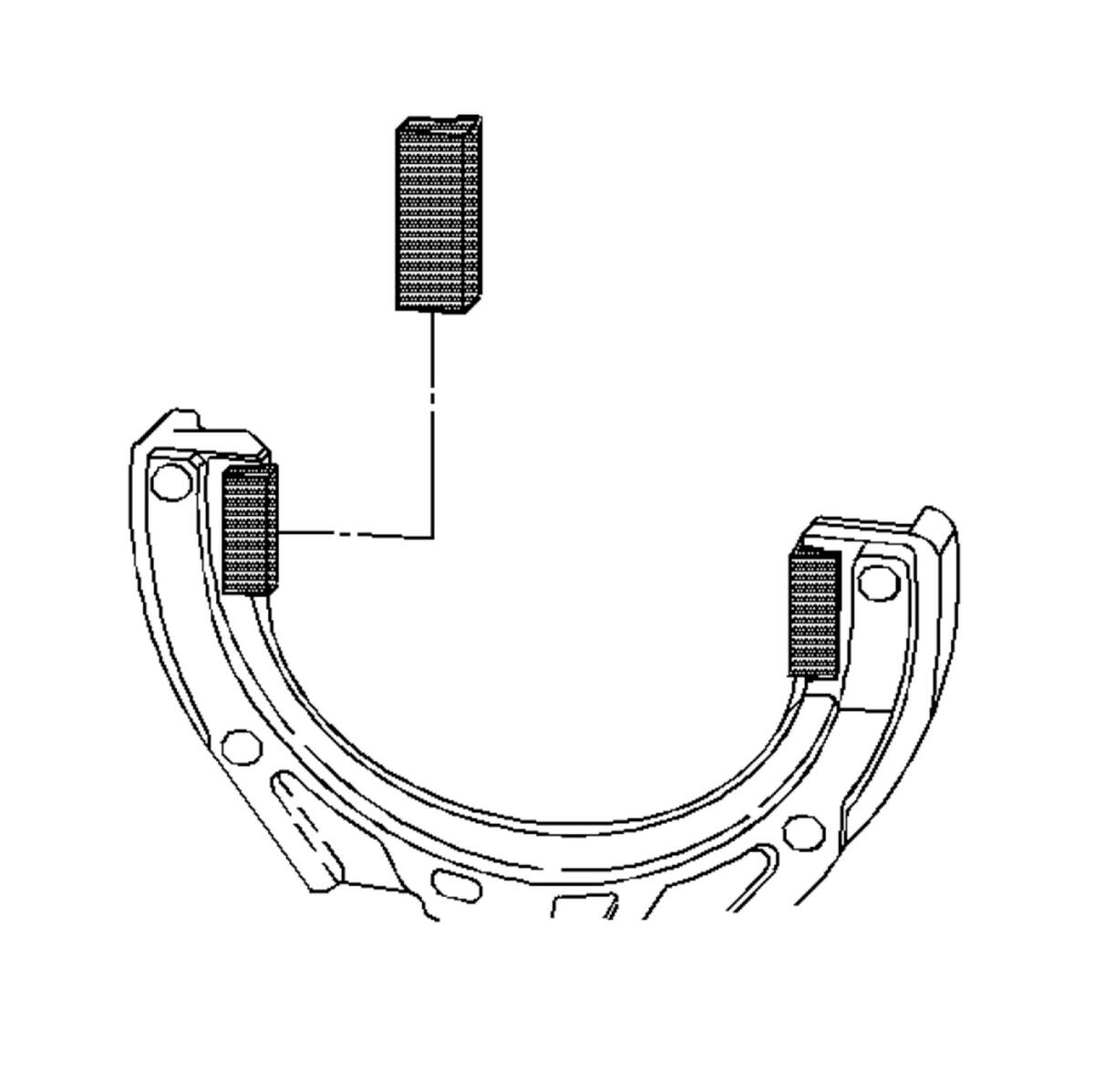

    4. Fig 4: Identifying Inspection Areas On Shift Fork Nylon Inserts
    GM38650Courtesy of GENERAL MOTORS CORP.
  4. Inspect the shift fork nylon inserts for wear.
  5. Replace parts that are fractured, excessively worn, or distorted.
  6. Replace an excessively worn or burred shift shaft.
