Assembly Procedure

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Special Tools J 36190, J 39439-3 & Extension Housing Bearing

Courtesy of GENERAL MOTORS CORP.

Using J 36190: universal driver handle (1) and J 39439-3: bushing installer (2), install the extension housing bearing.

Fig 2: View Of Oil Funnel Into Extension Housing Countershaft Bearing

Courtesy of GENERAL MOTORS CORP.

Snap the oil funnel into the NEW extension housing countershaft bearing.
Using J 36190: universal driver handle (1) and DT 48802: bearing installer (2), install the NEW extension housing countershaft bearing.

Fig 3: View of Mainshaft Bearing Race, Special Tools J 39546 & J 8092

Courtesy of GENERAL MOTORS CORP.

Install the mainshaft bearing race, using the J 39546: race installer (1) and the J 8092: drive handle (2).

Fig 4: View Of Mainshaft Bearing Race Retainer Ring

Courtesy of GENERAL MOTORS CORP.

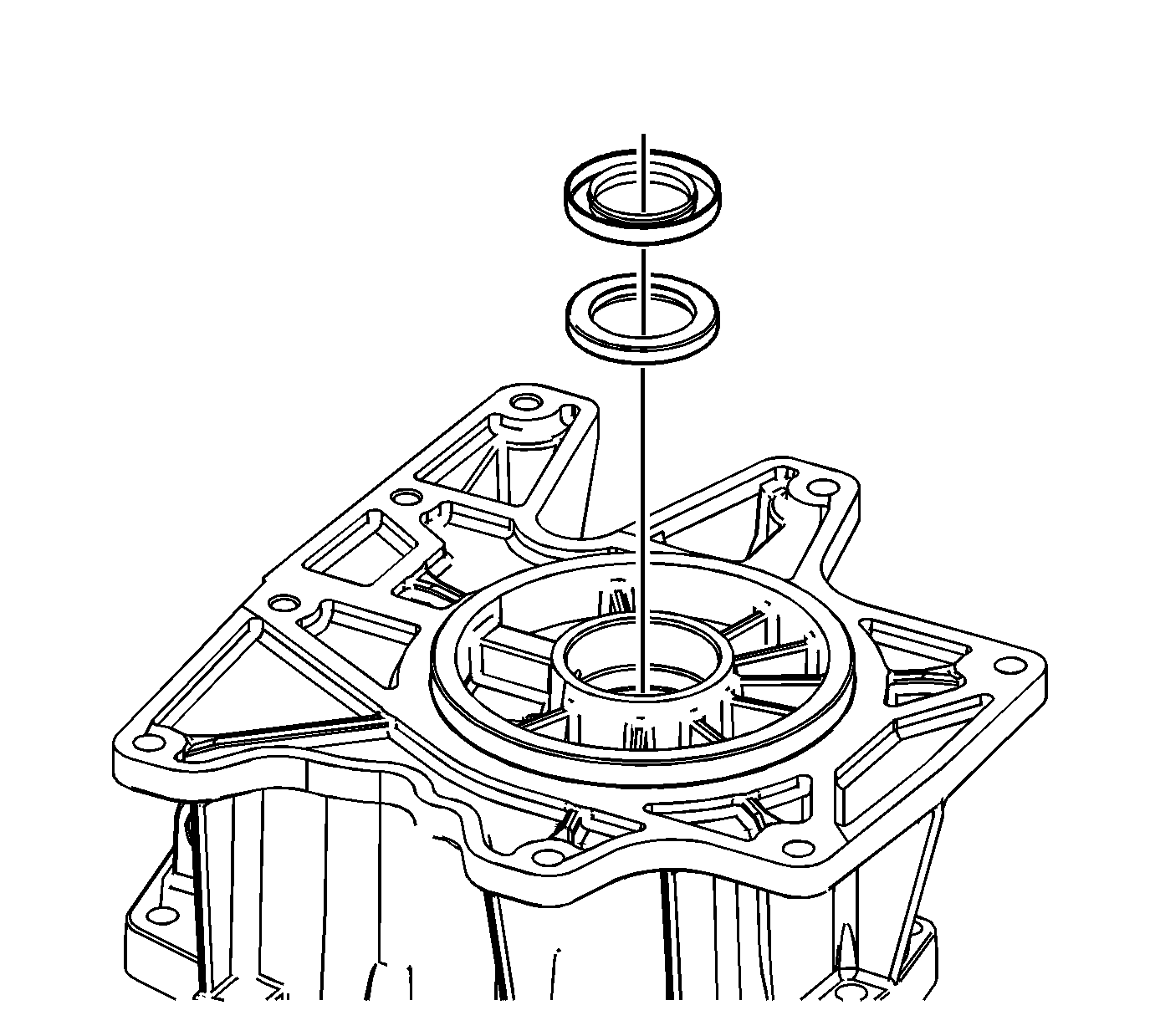

Fig 5: View of Output Shaft Inner And Outer Seals & Special Tool J 21426

Courtesy of GENERAL MOTORS CORP.

Install the output shaft inner and outer seals using the J 21426: seal installer.

Fig 6: Applying Sealant To Adapter Plate Plug Threads

Courtesy of GENERAL MOTORS CORP.

Apply sealer GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the transmission case drain plug.

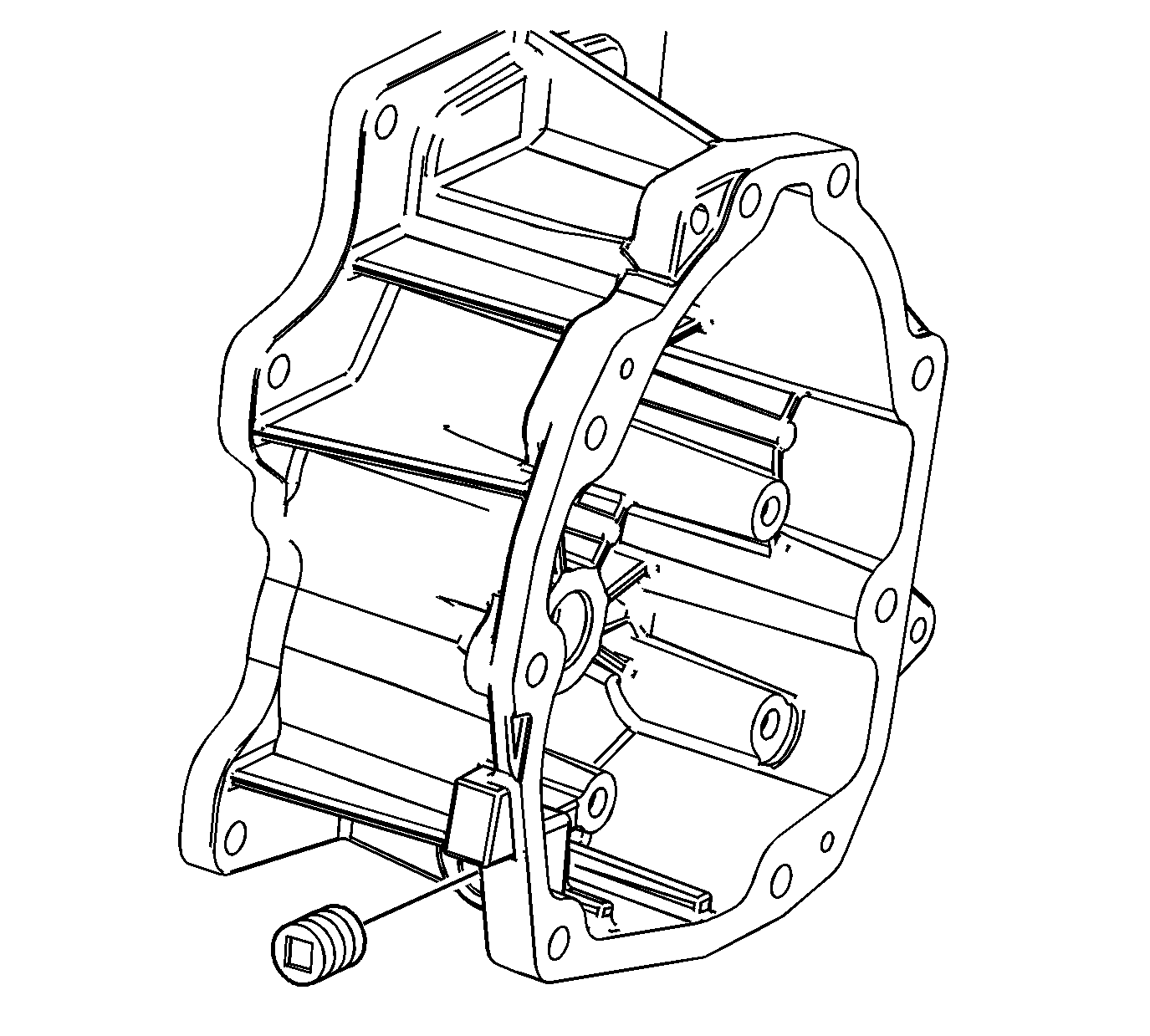

Fig 7: View Of Transmission Case Drain Plug

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .
