Instrument Cluster Schematics

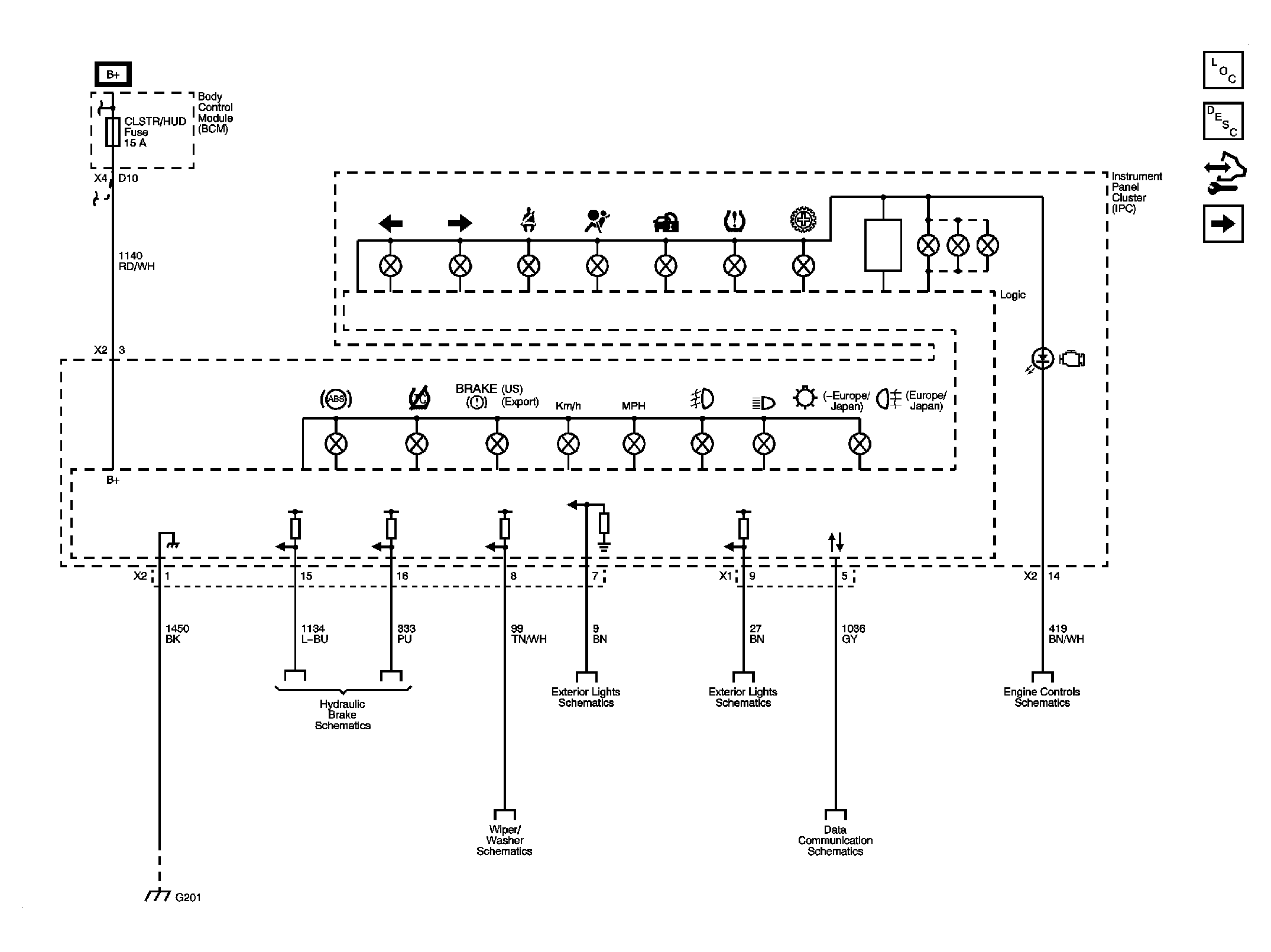

Fig 1: Power, Ground, Indicators & Serial Data Circuit Schematic
GM2053654Courtesy of GENERAL MOTORS CORP.
Fig 2: Gages Circuit Schematic
GM2053663Courtesy of GENERAL MOTORS CORP.

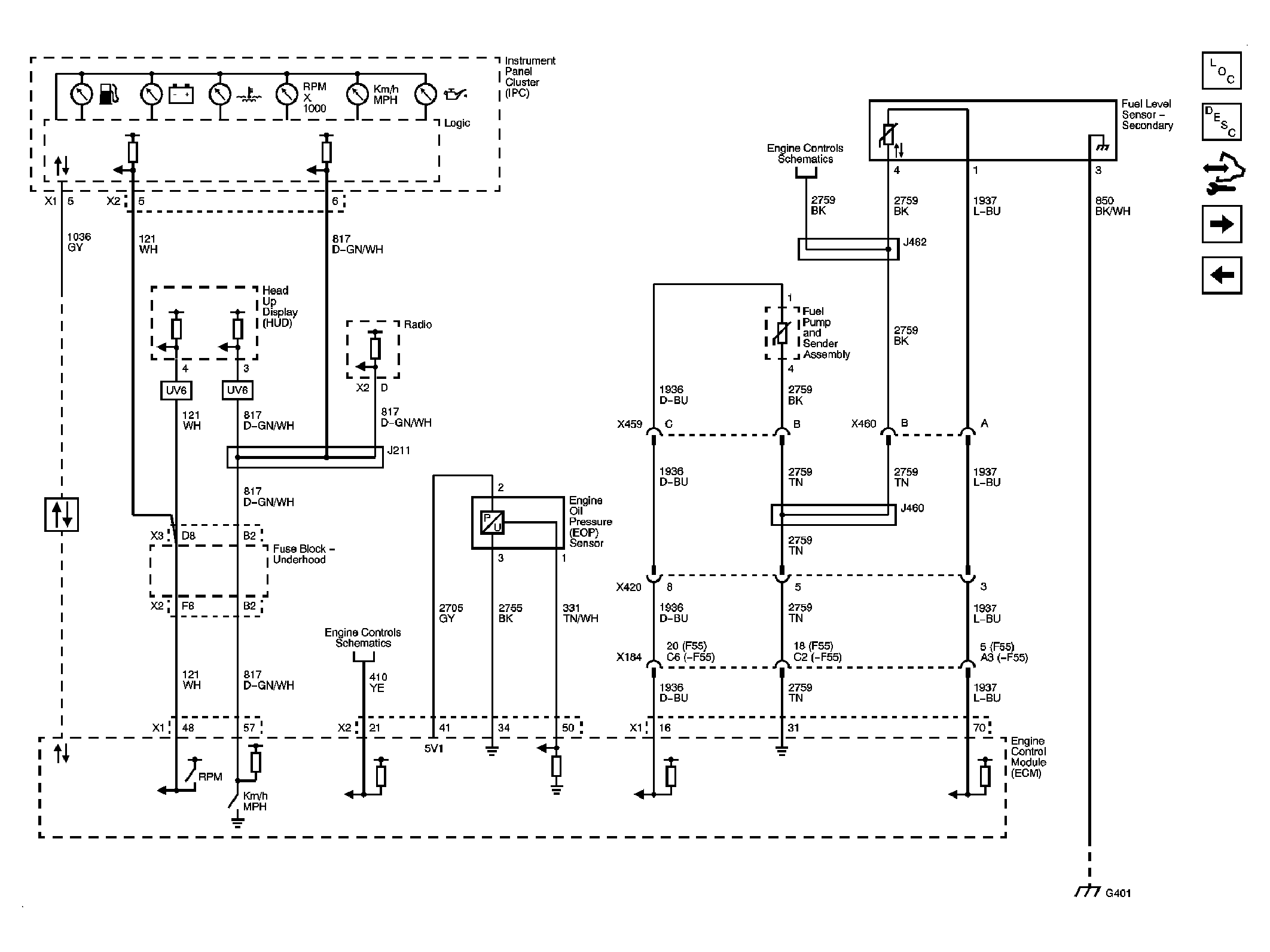

Fig 3: Gages Circuit Schematic
GM2193528Courtesy of GENERAL MOTORS CORP.
Fig 4: Messages Circuit Schematic
GM2053673Courtesy of GENERAL MOTORS CORP.
