Antilock Brake System Schematics

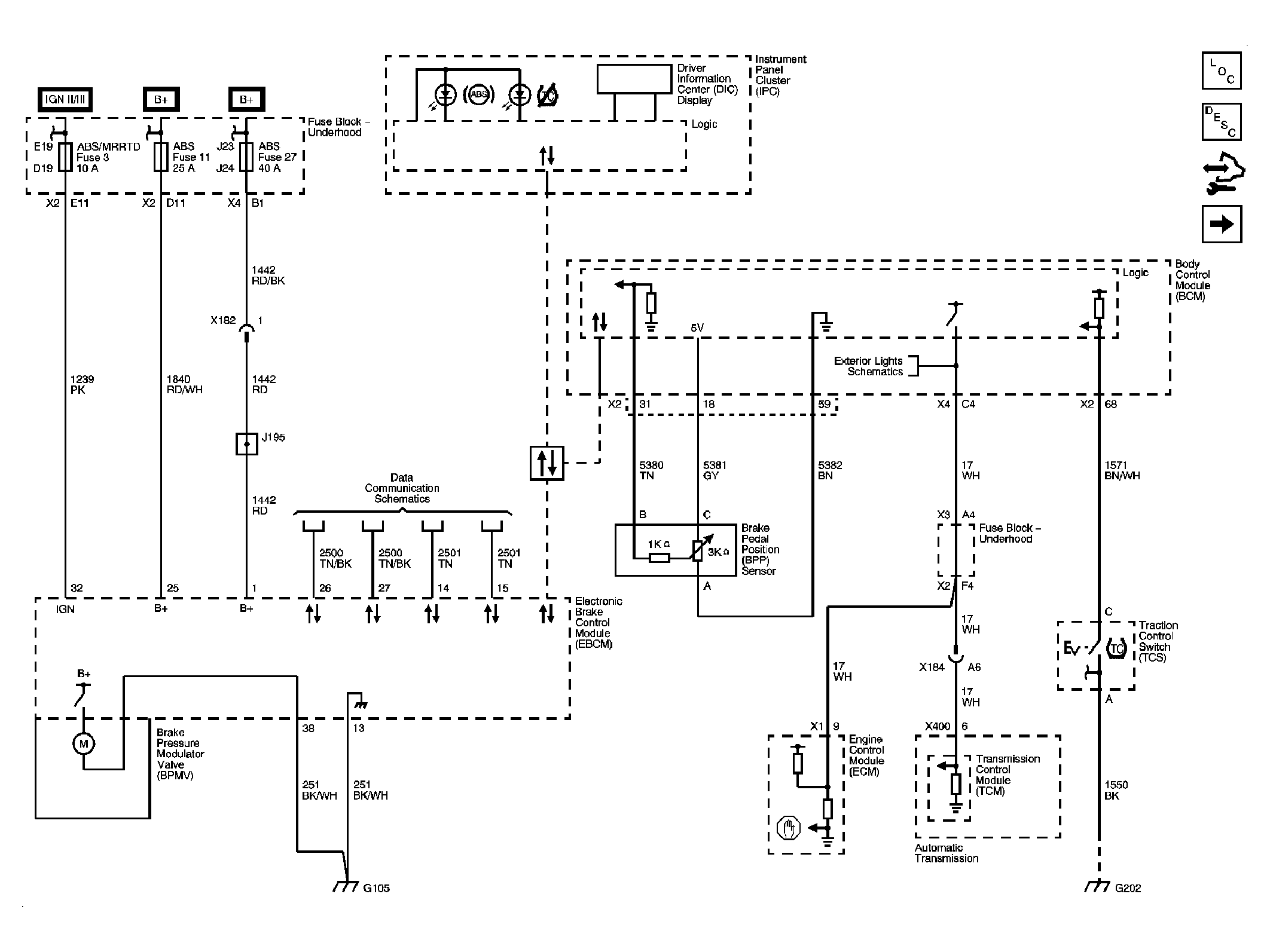

Fig 1: Power, Ground, Indicators, Brake Pressure Modulator Valve, Brake Pedal Position (BPP) Sensor & Traction Control Switch Circuit Schematic
GM2053747Courtesy of GENERAL MOTORS CORP.
Fig 2: Wheel Speed Sensors Circuit Schematic
GM2053759Courtesy of GENERAL MOTORS CORP.

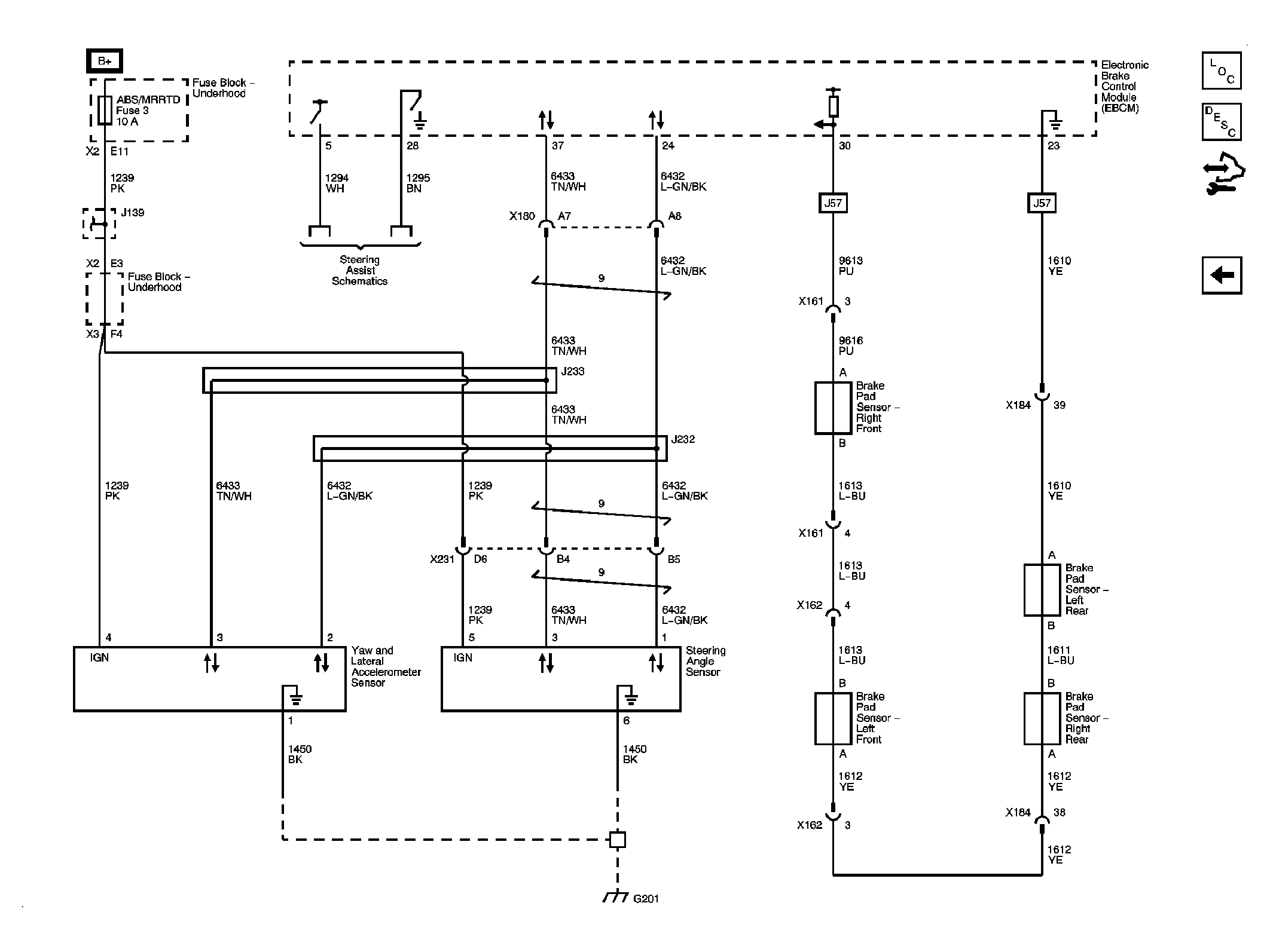

Fig 3: Stability Controls Sensors (JL4) & Brake Pad Sensors Circuit Schematic (J57)
GM2053754Courtesy of GENERAL MOTORS CORP.
