Folding Top Schematics

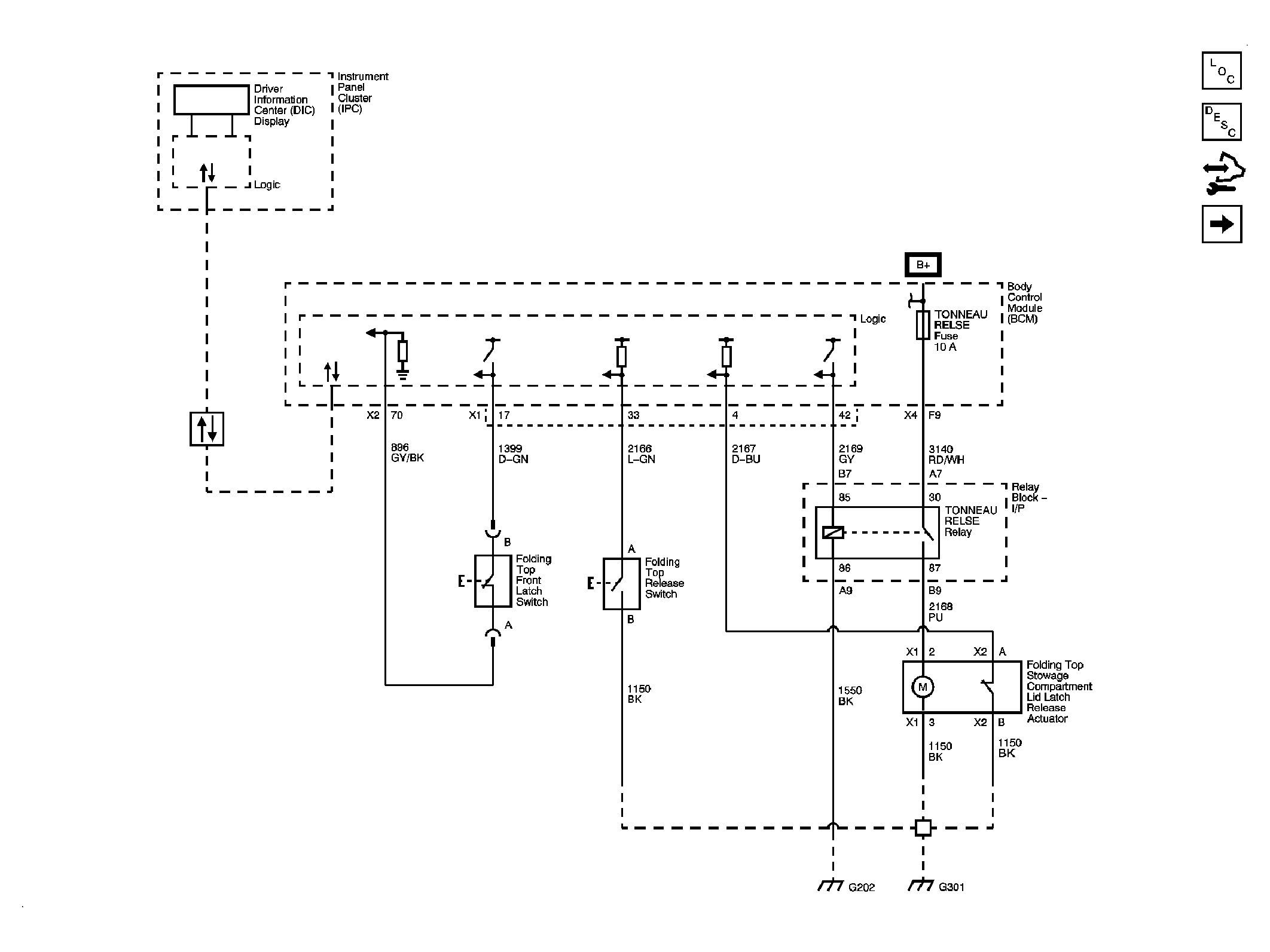

Fig 1: Manual Folding Top Circuit Schematic (Convertible without CM7)

Courtesy of GENERAL MOTORS CORP.

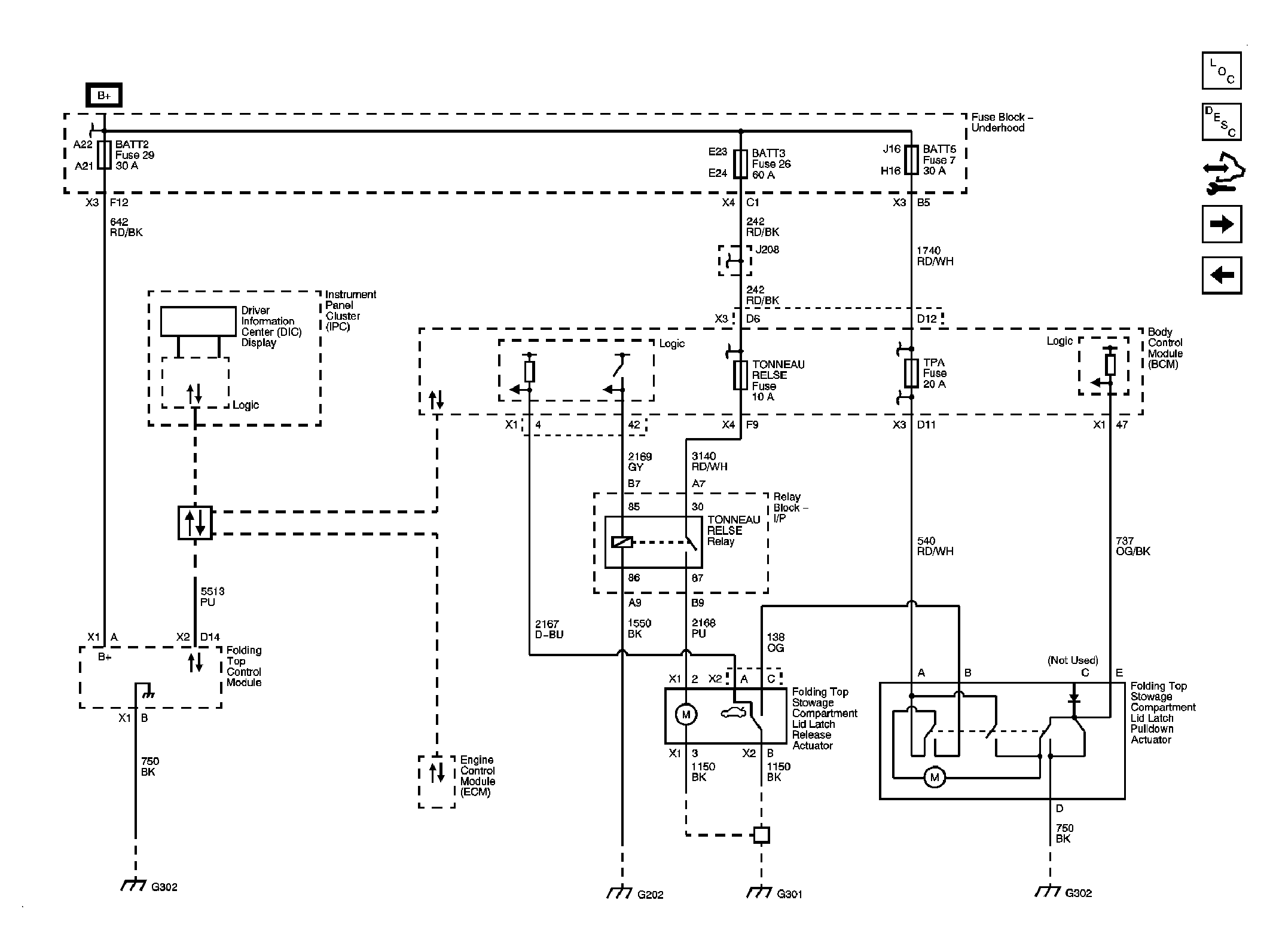

Fig 2: Power, Ground, Serial Data & Lid Controls Circuit Schematic (CM7)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Switches Circuit Schematic (CM7)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Pump & Valves Circuit Schematic (CM7)

Courtesy of GENERAL MOTORS CORP.
