Driver Seat Schematics

Fig 1: 6-Way Manual Power Seat Circuit Schematic
GM2054015Courtesy of GENERAL MOTORS CORP.

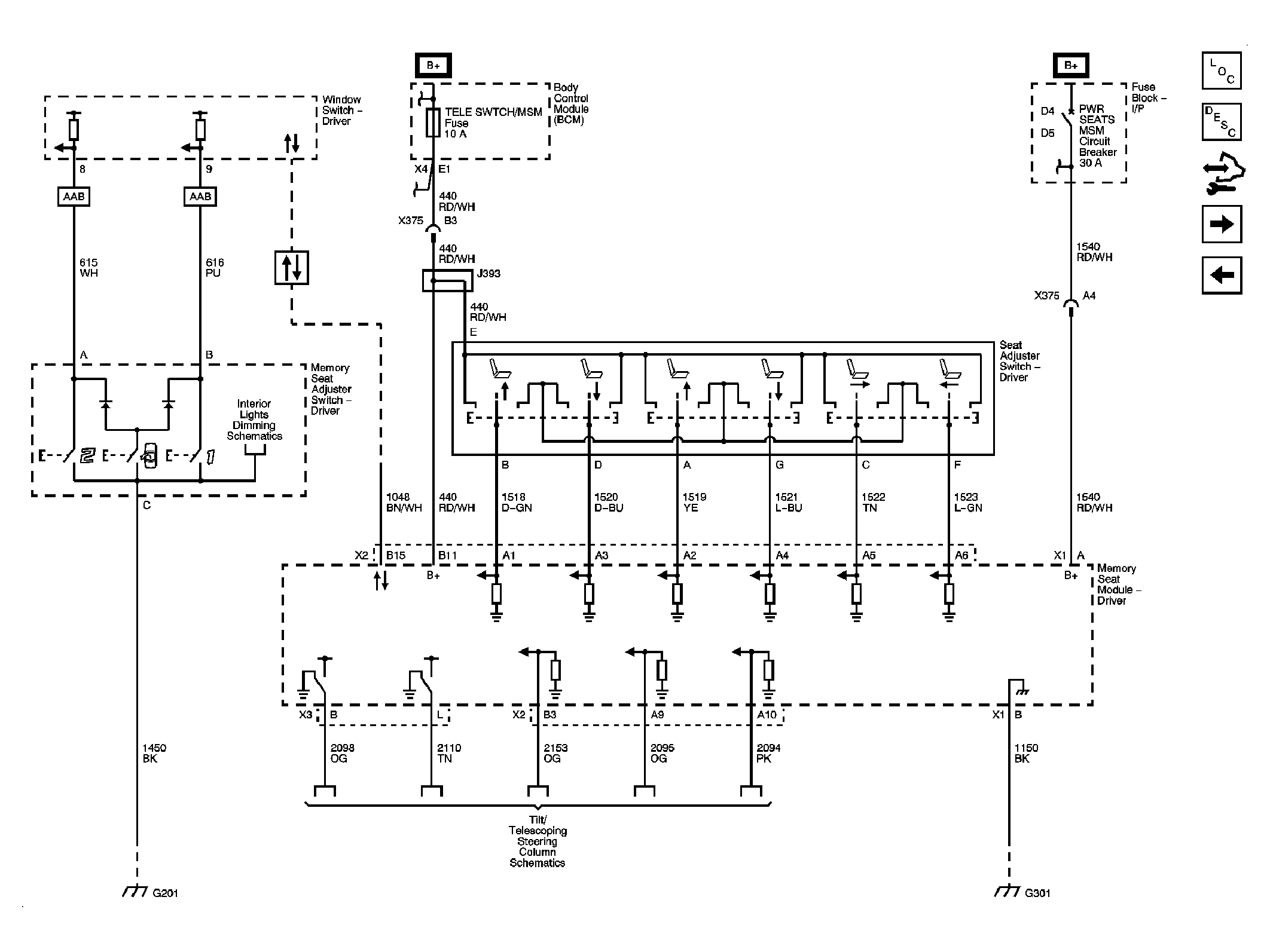

Fig 2: Memory Seat Circuit Schematic (1 Of 2)
GM2054017Courtesy of GENERAL MOTORS CORP.

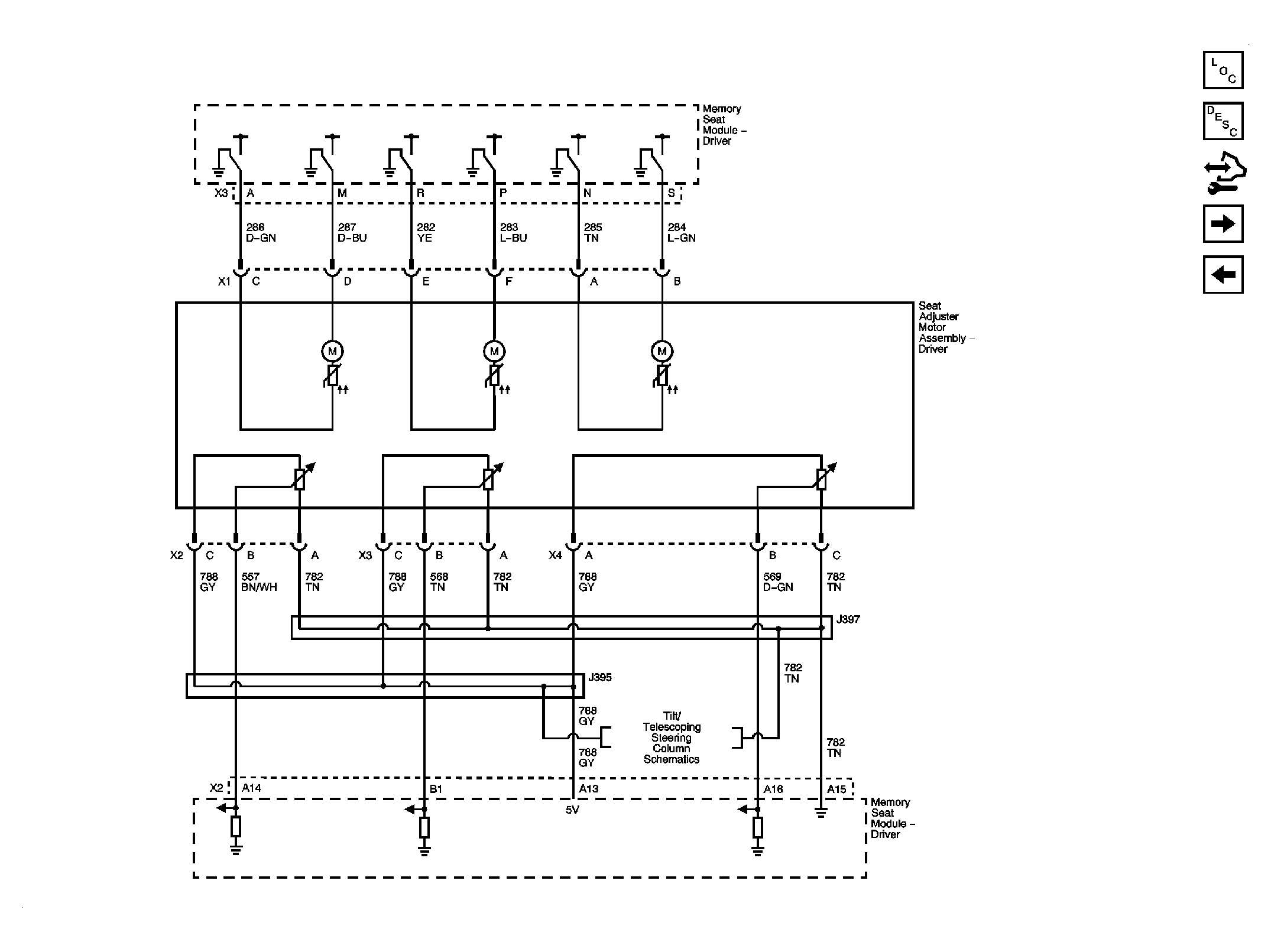

Fig 3: Memory Seat Circuit Schematic (2 Of 2)
GM2054020Courtesy of GENERAL MOTORS CORP.
Fig 4: Lumbar Support Circuit Schematic
GM2054022Courtesy of GENERAL MOTORS CORP.
