Automatic Transmission Controls Schematics

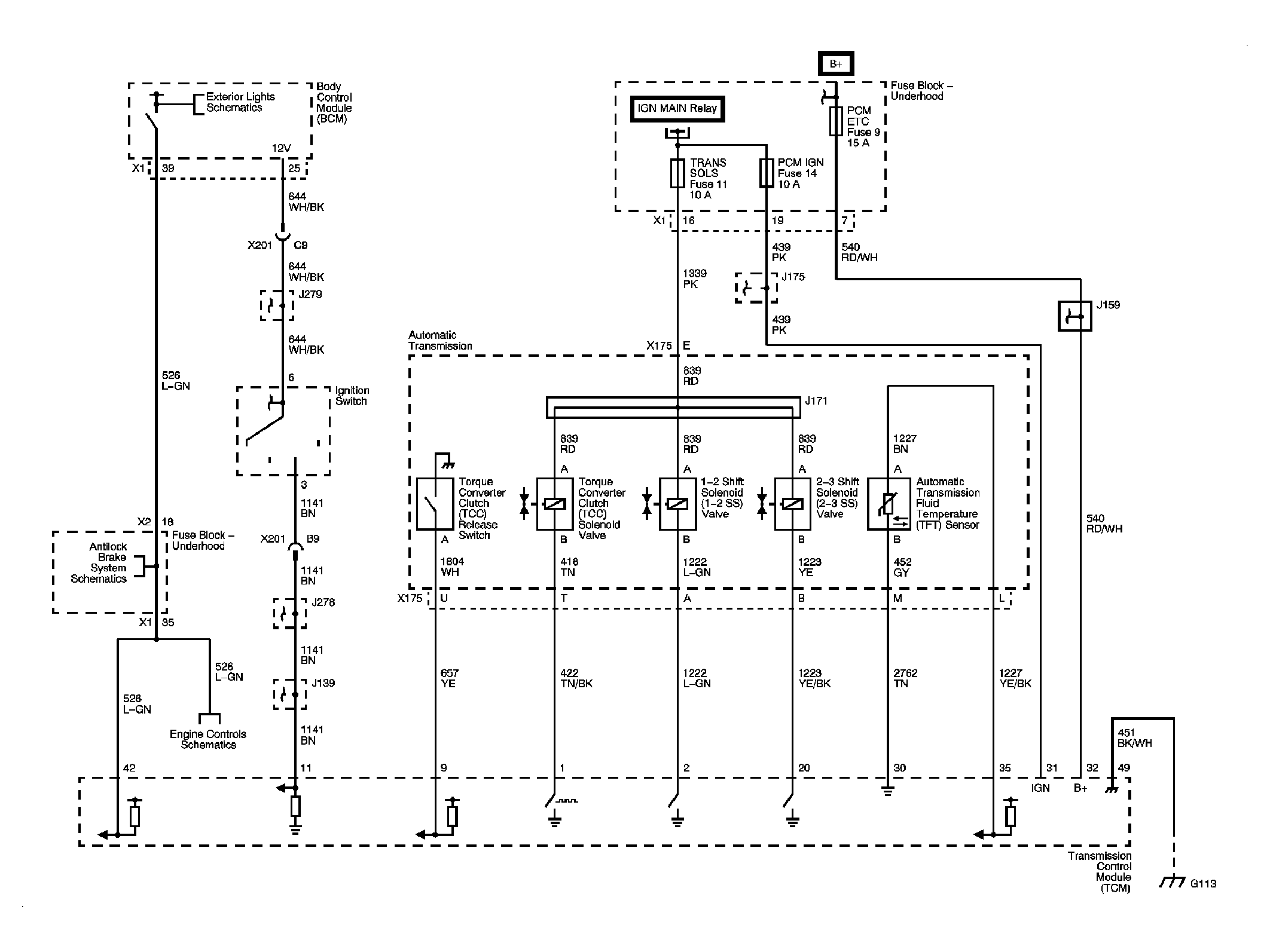

Fig 1: Ground, Power, Shift Solenoids, Stop Lamp Switch, TCC, and TFT

Courtesy of GENERAL MOTORS CORP.

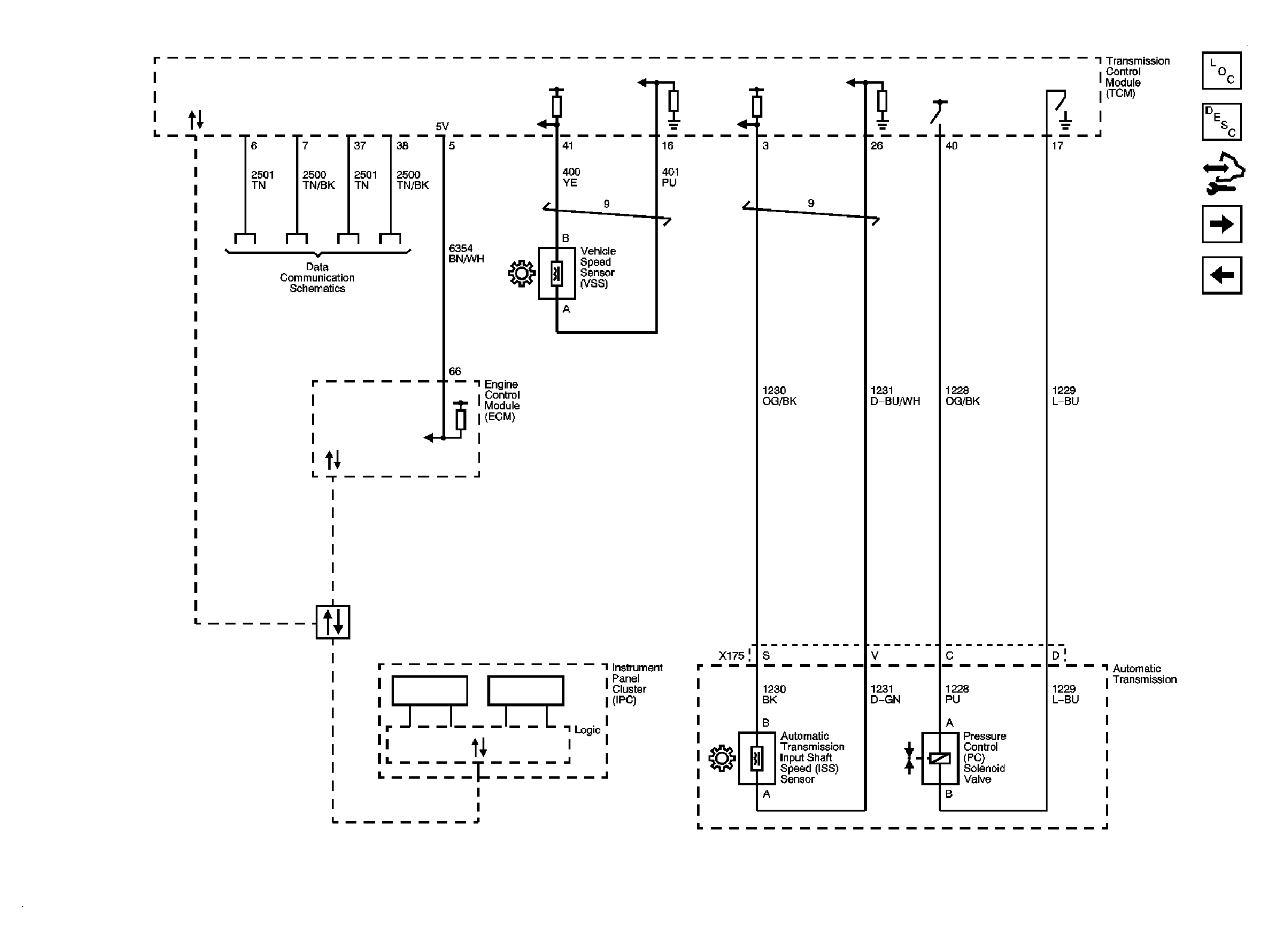

Fig 2: Indicators, ISS, Pressure Control, Serial Data, and VSS

Courtesy of GENERAL MOTORS CORP.

Fig 3: Internal Mode Switch

Courtesy of GENERAL MOTORS CORP.
