SIR Schematics (AW9)

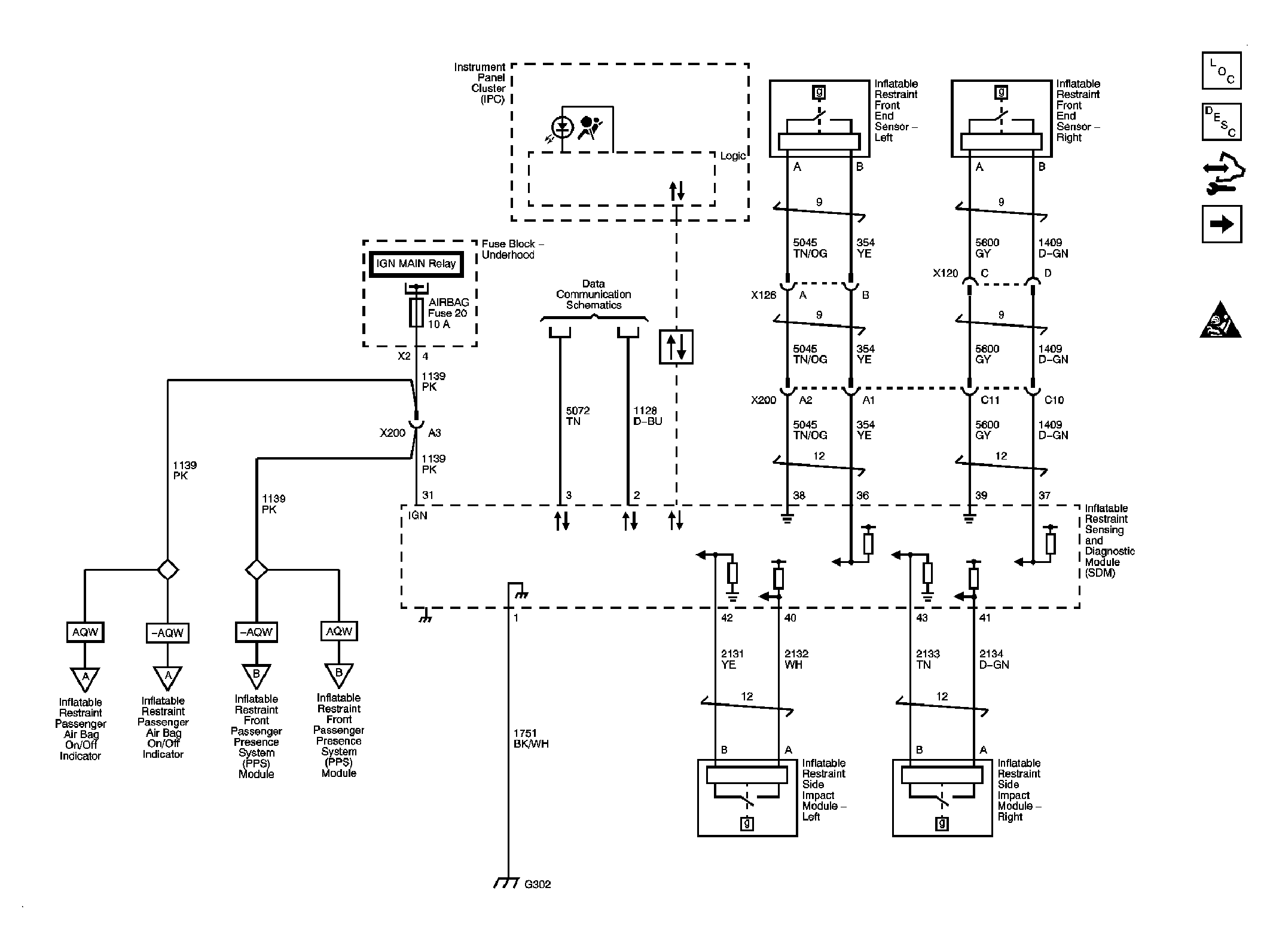

Fig 1: Ground, Impact Sensors, Indicator, and Power
GM1921741Courtesy of GENERAL MOTORS CORP.

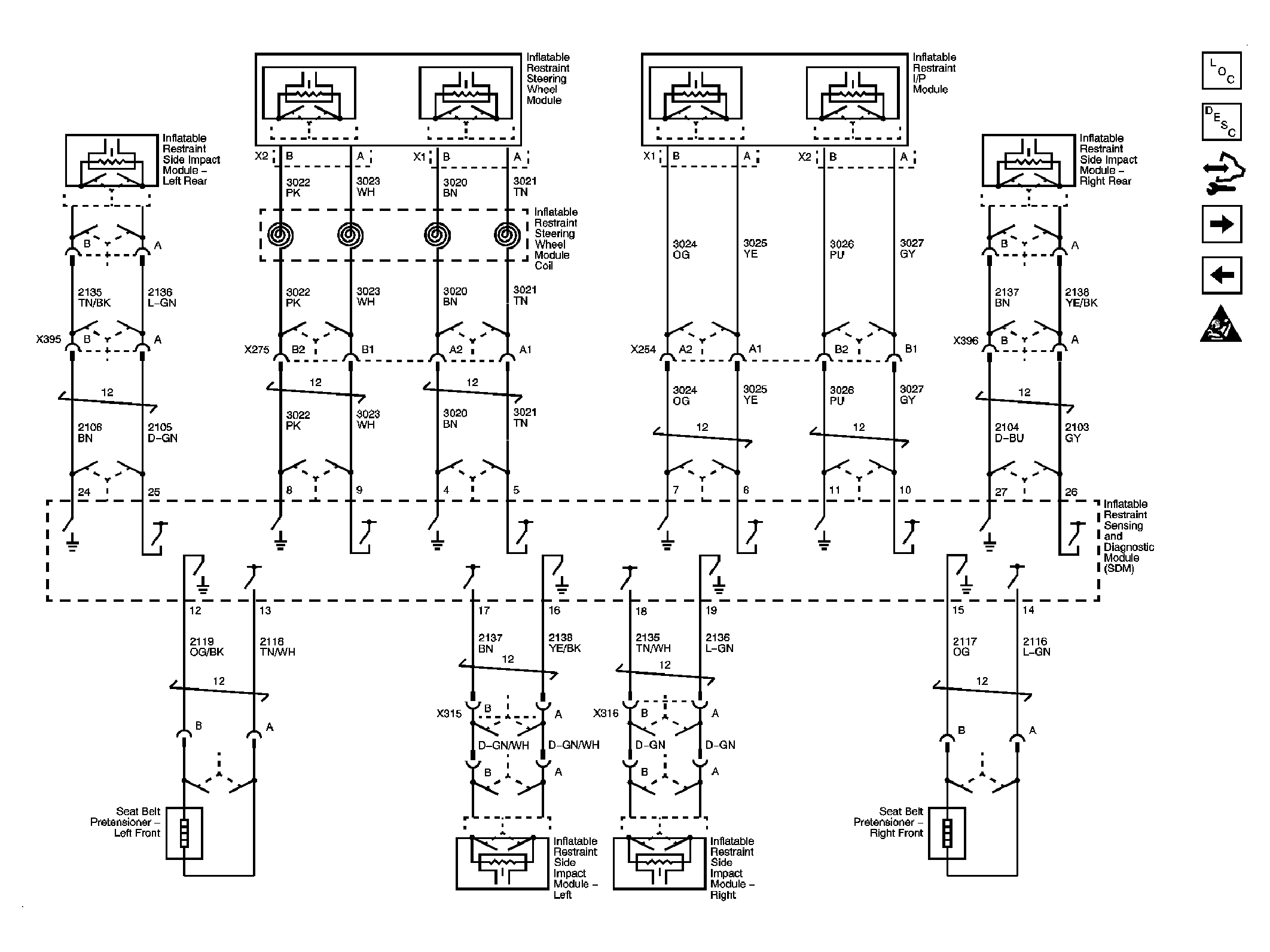

Fig 2: Impact Modules and Pretensioners
GM1921743Courtesy of GENERAL MOTORS CORP.

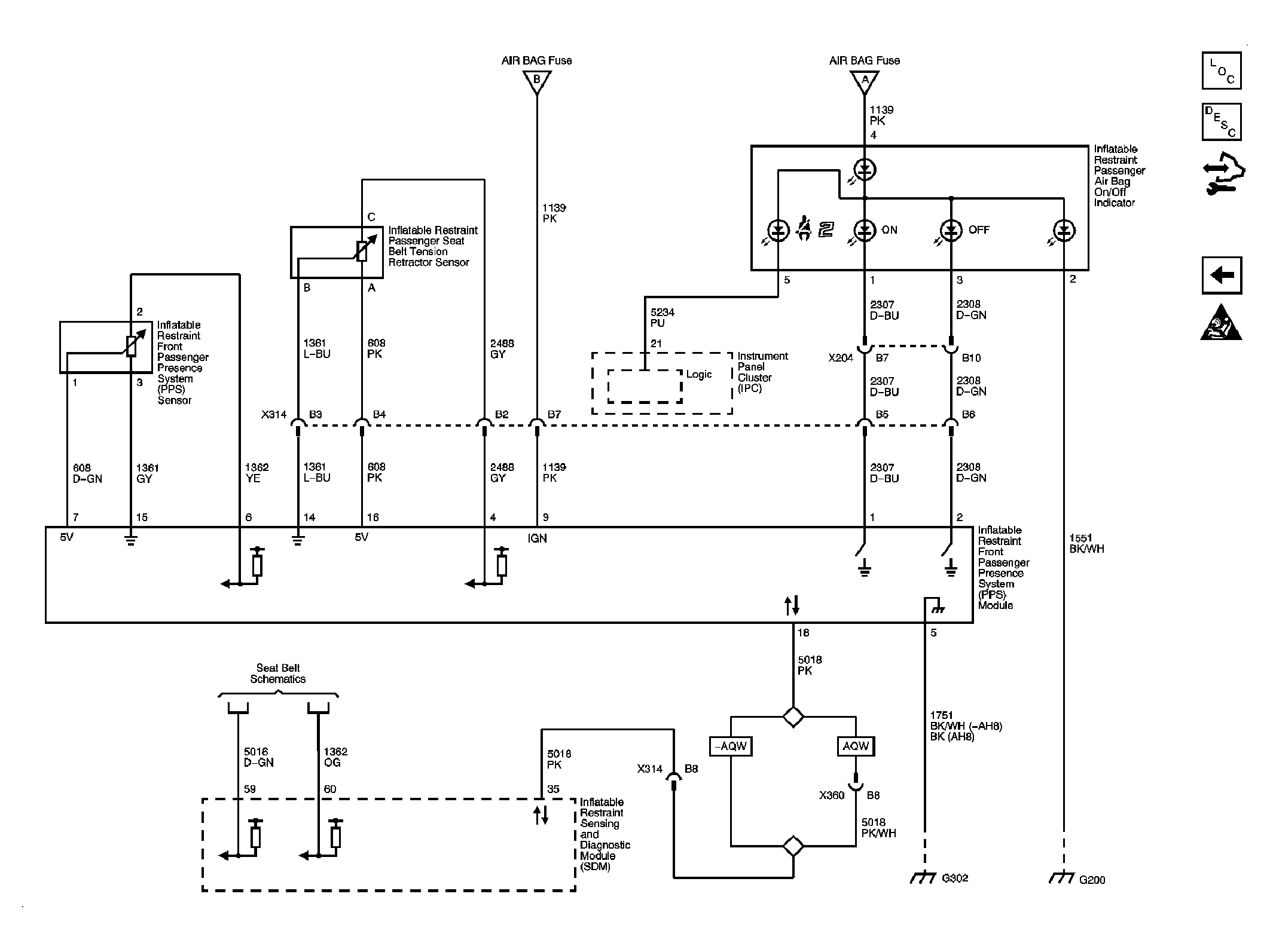

Fig 3: Occupant Sensing (-AQW)
GM1921745Courtesy of GENERAL MOTORS CORP.

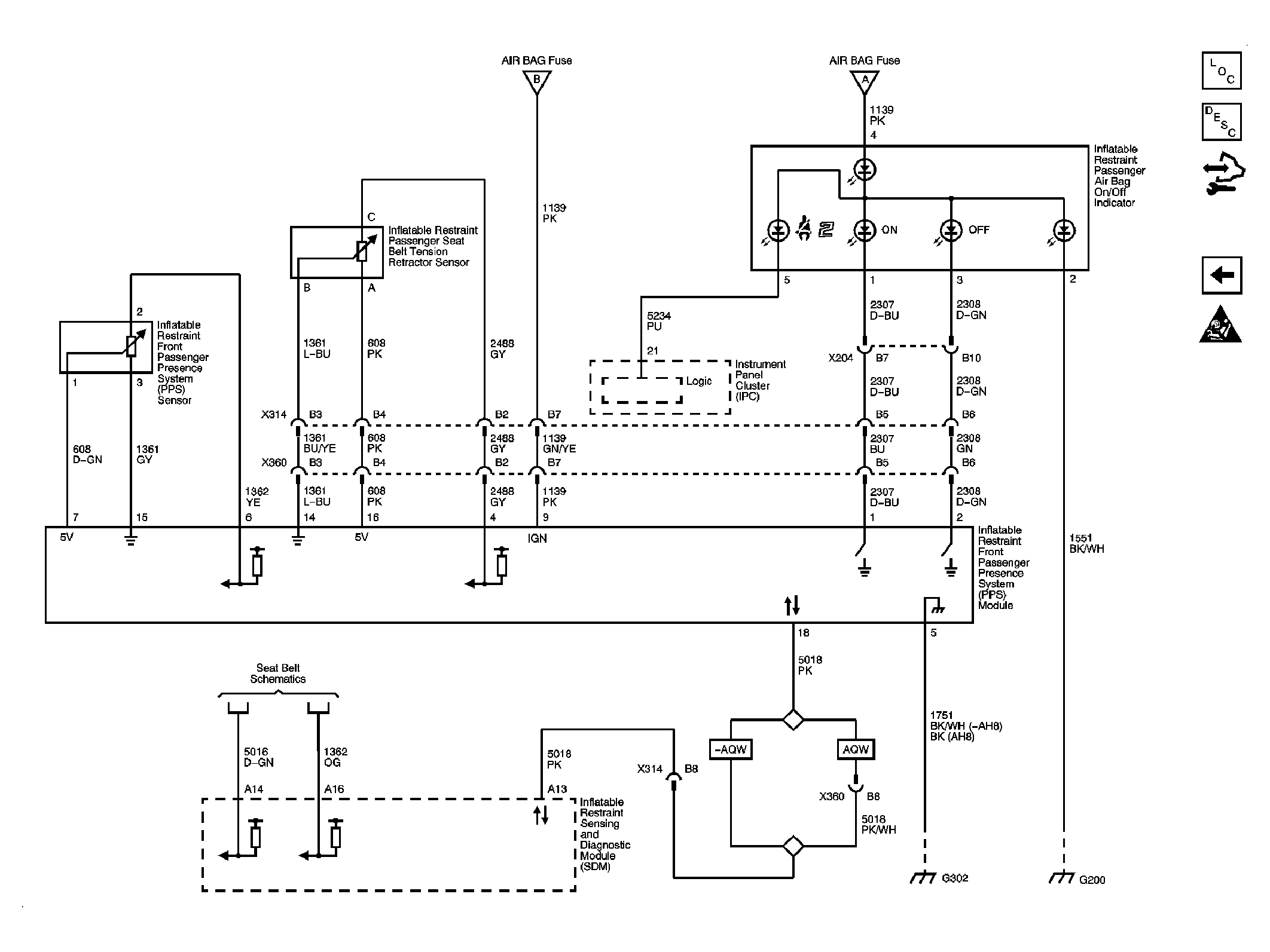

Fig 4: Occupant Sensing (AQW)
GM1923040Courtesy of GENERAL MOTORS CORP.
