HVAC Schematics

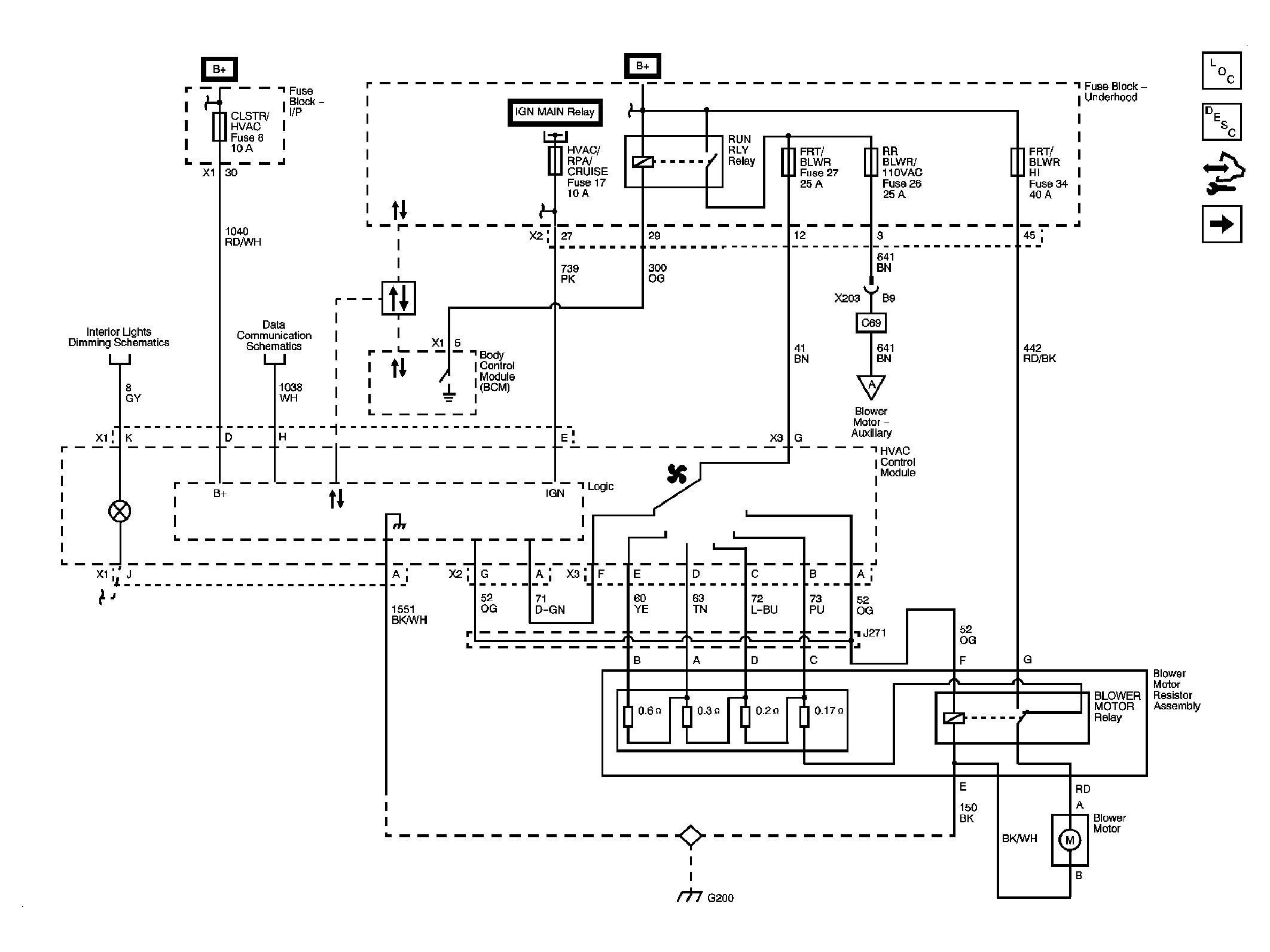

Fig 1: Front Blower Control, Ground, and Power
GM1921496Courtesy of GENERAL MOTORS CORP.

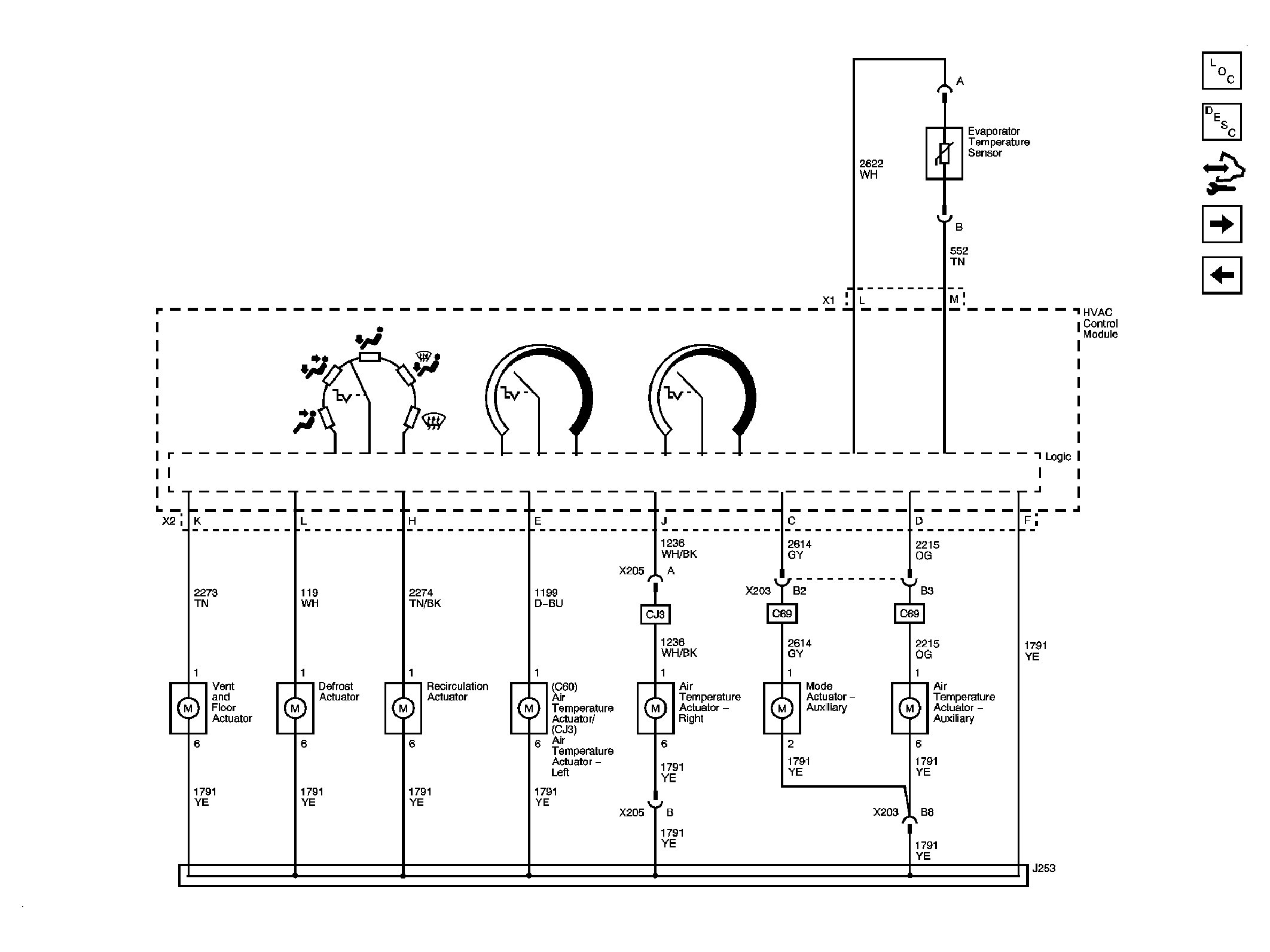

Fig 2: Air Delivery and Temperature Control
GM1921498Courtesy of GENERAL MOTORS CORP.
Fig 3: A/C Compressor Controls
GM1921500Courtesy of GENERAL MOTORS CORP.
Fig 4: Auxiliary Blower Controls - C69
GM1921502Courtesy of GENERAL MOTORS CORP.
