Ground Distribution Schematics

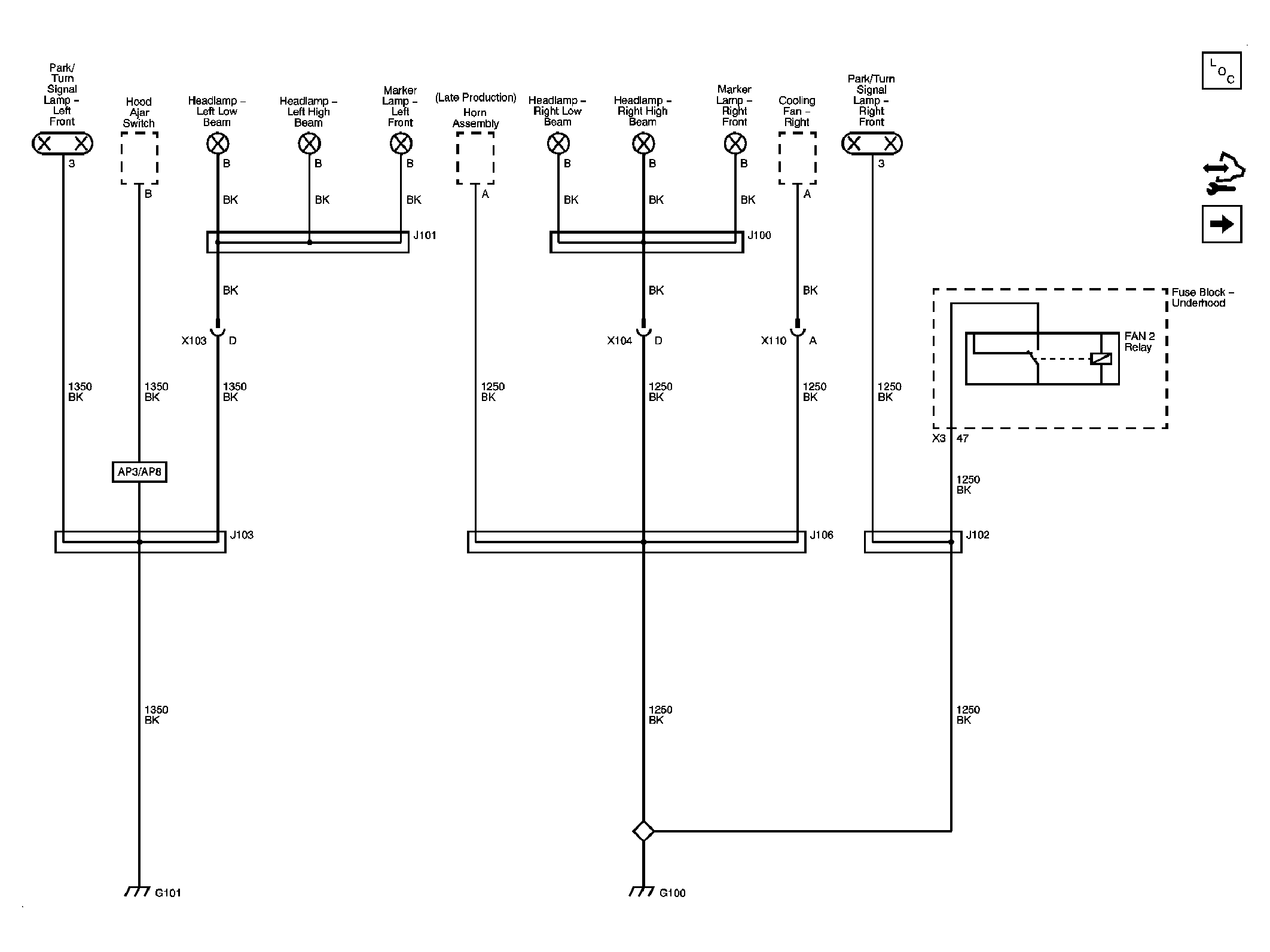

Fig 1: G100 and G101

GM1921945

Courtesy of GENERAL MOTORS CORP.

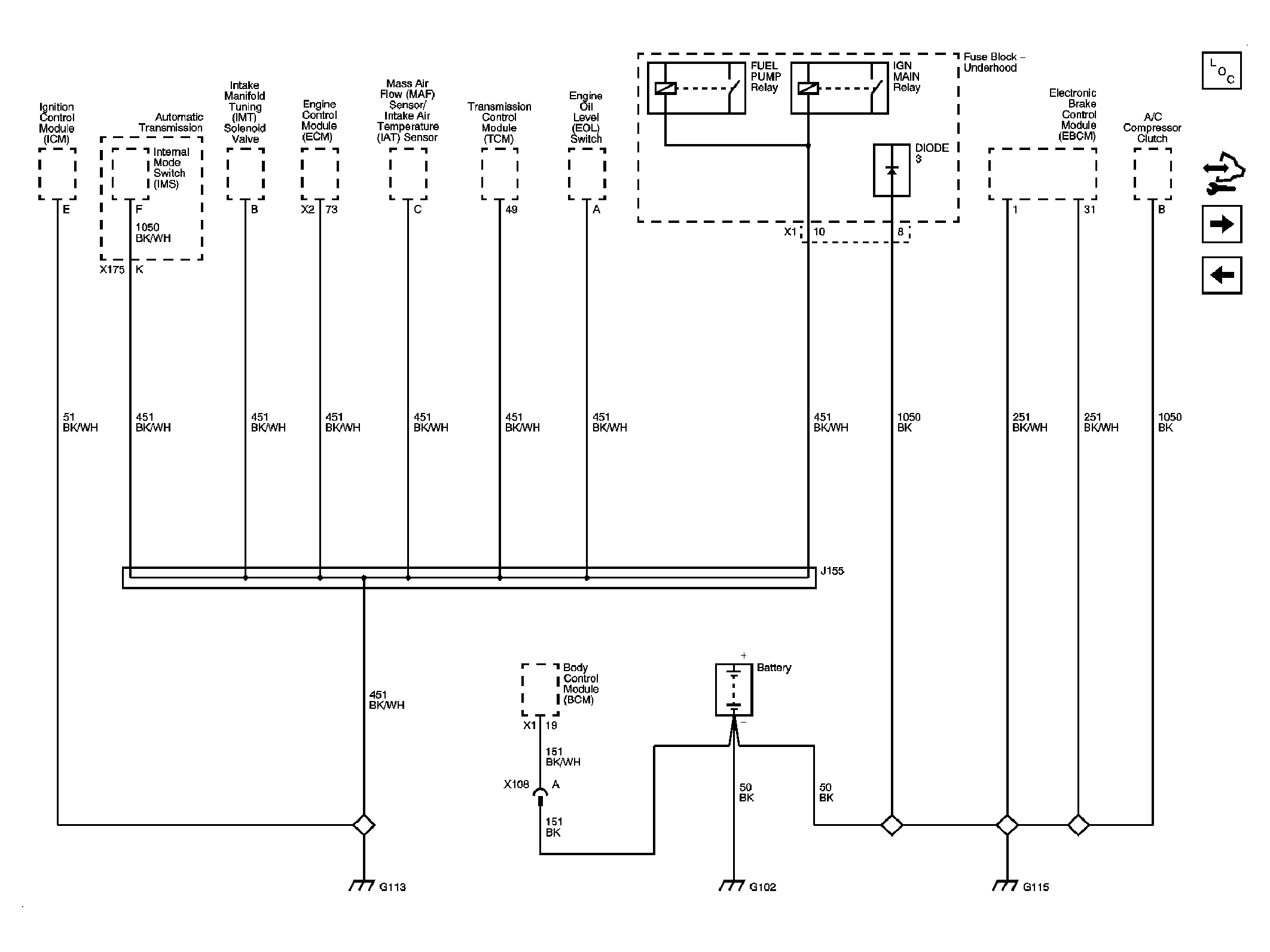

Fig 2: G102, G113 and G115

GM1921947

Courtesy of GENERAL MOTORS CORP.

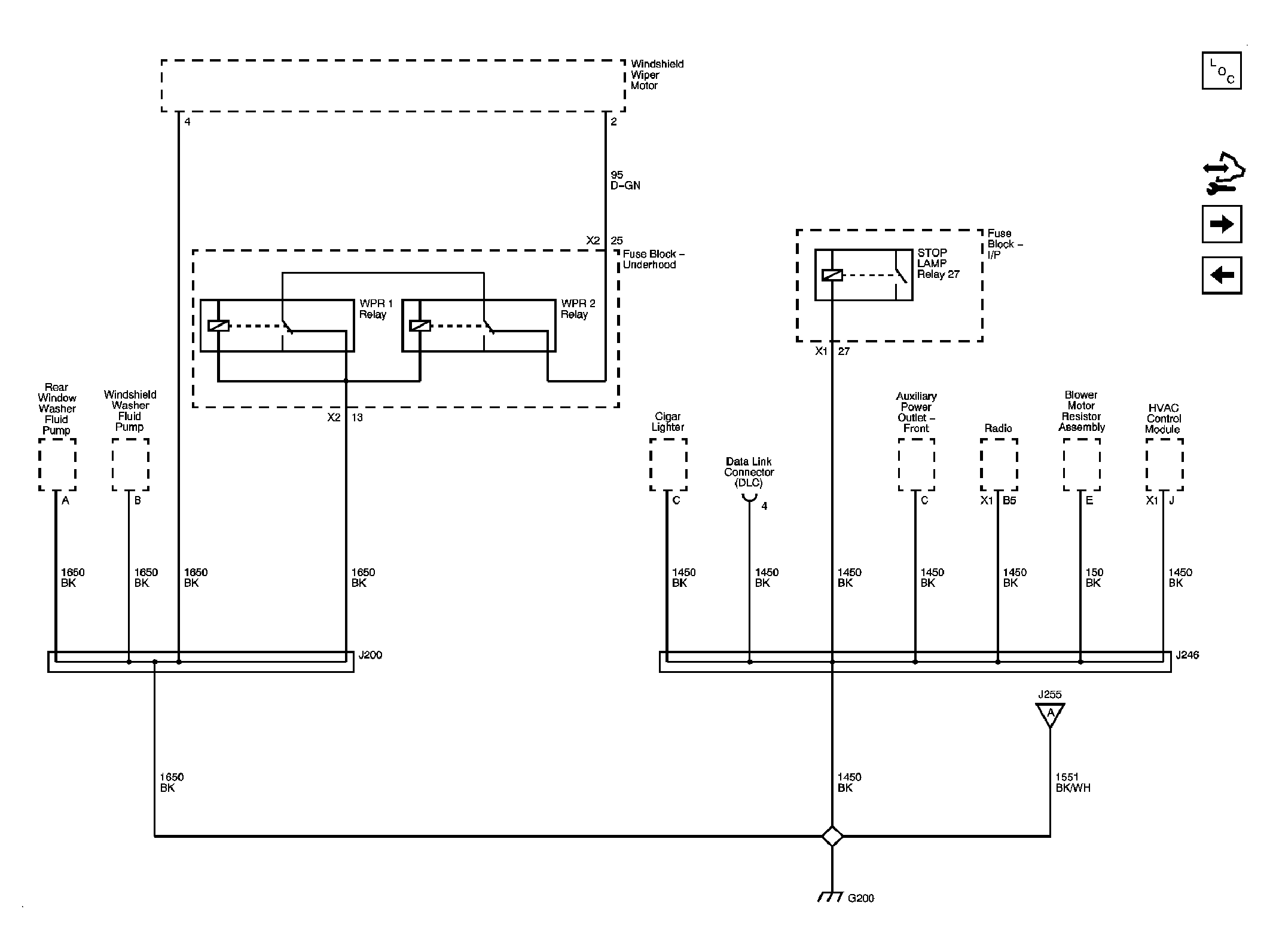

Fig 3: G200 1 of 2

GM1921949

Courtesy of GENERAL MOTORS CORP.

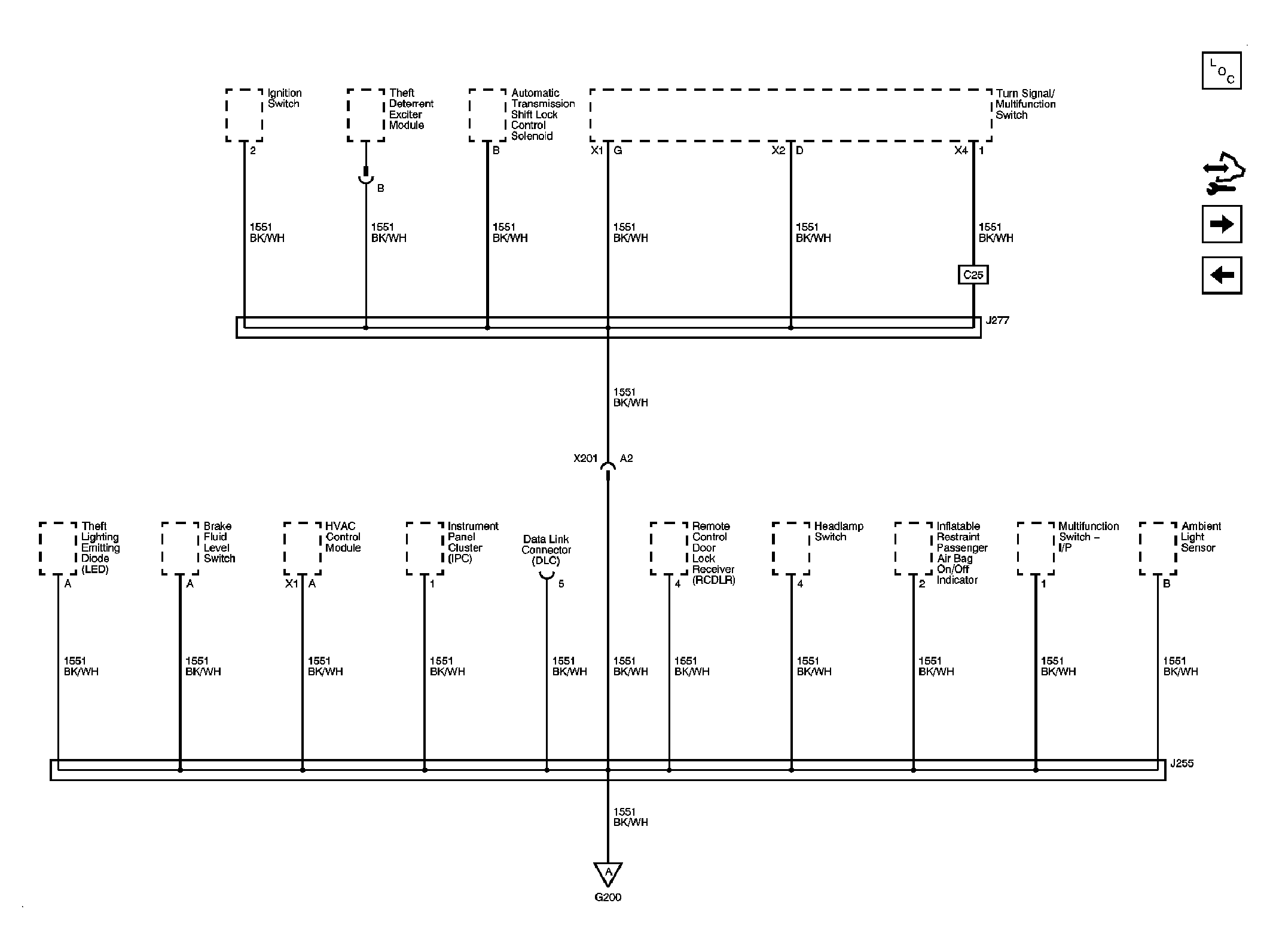

Fig 4: G200 2 of 2

GM1921952

Courtesy of GENERAL MOTORS CORP.

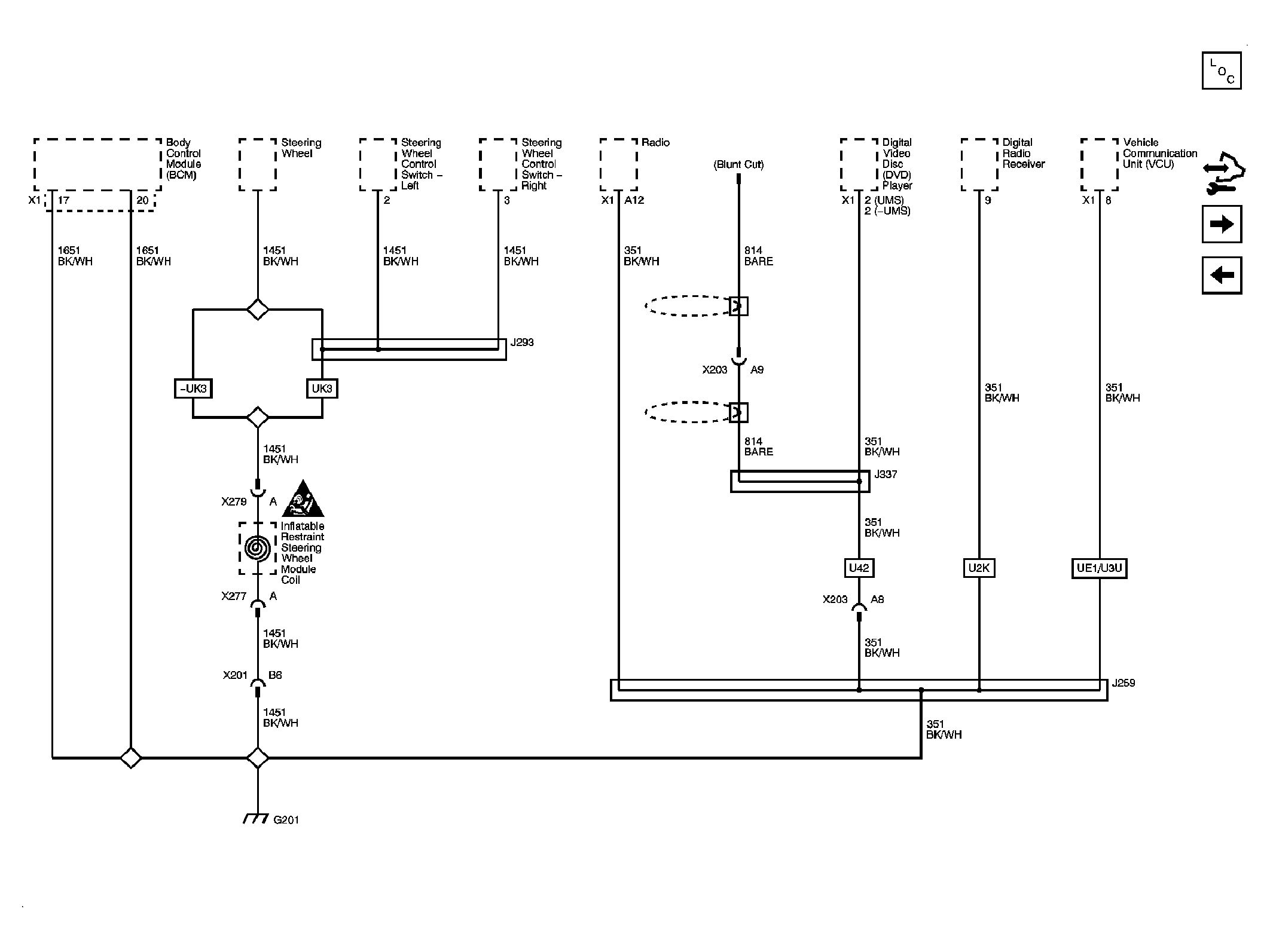

Fig 5: G201

GM1921954

Courtesy of GENERAL MOTORS CORP.

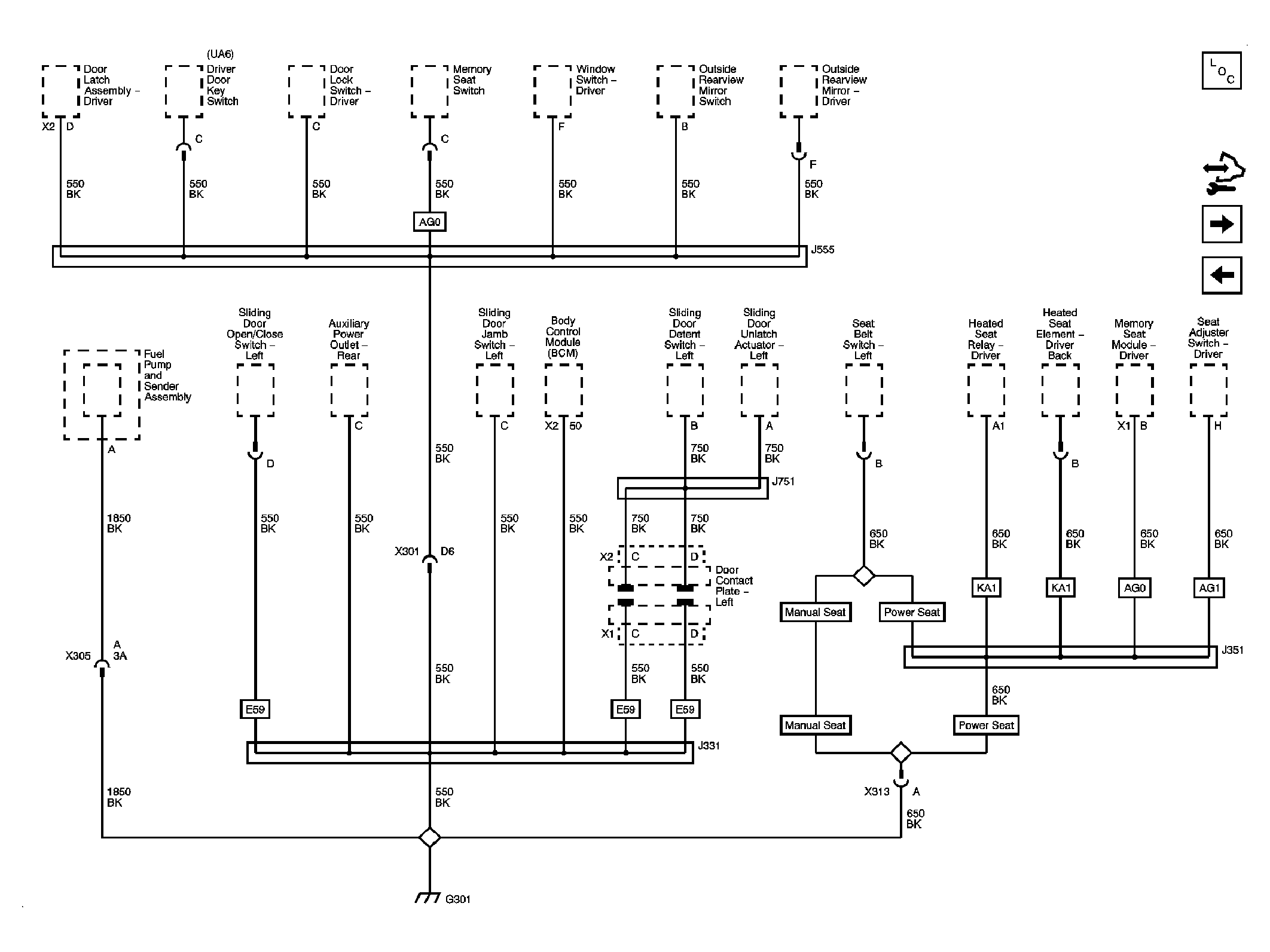

Fig 6: G301

GM1921956

Courtesy of GENERAL MOTORS CORP.

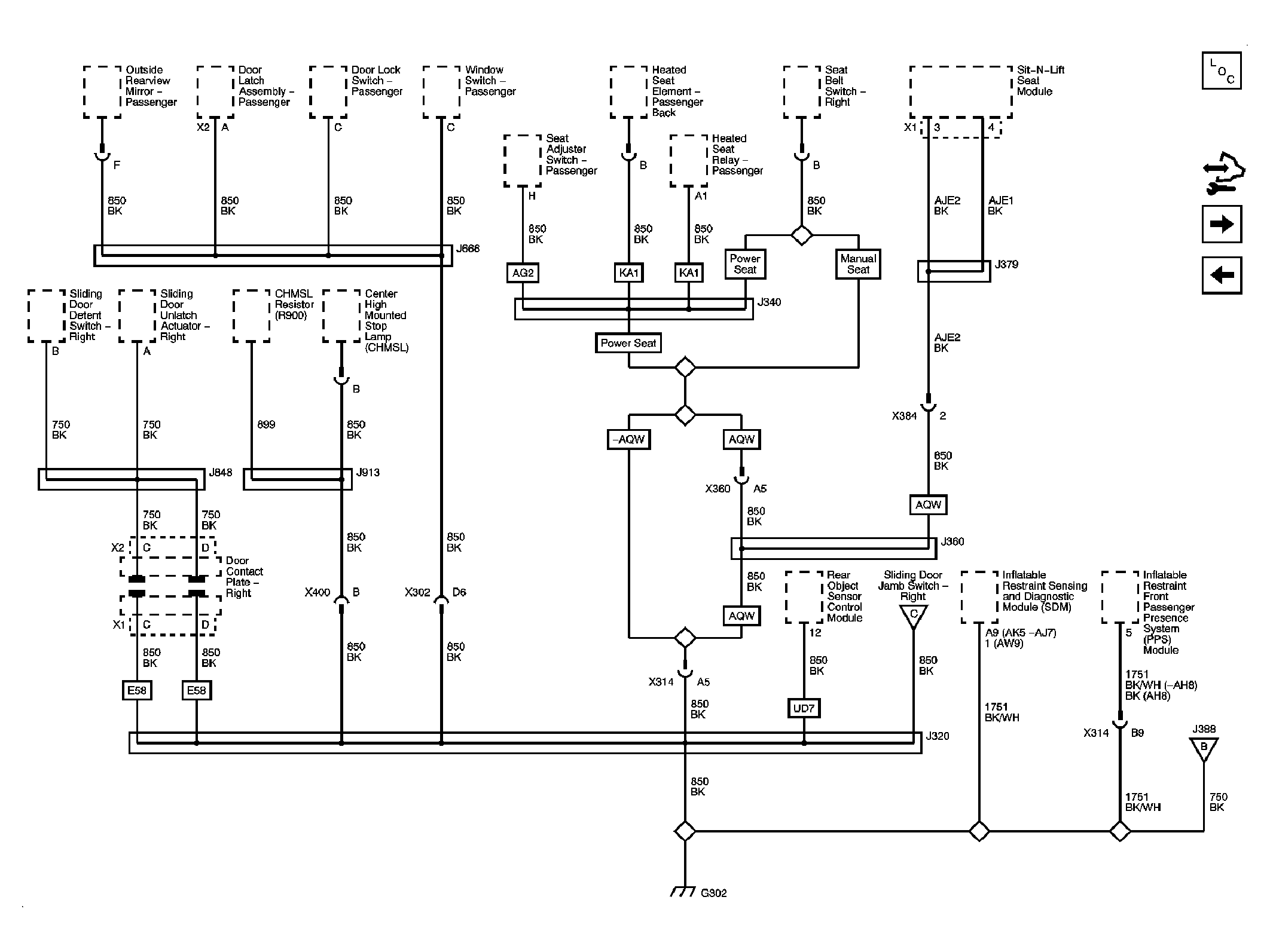

Fig 7: G302 1 of 2

GM1921958

Courtesy of GENERAL MOTORS CORP.

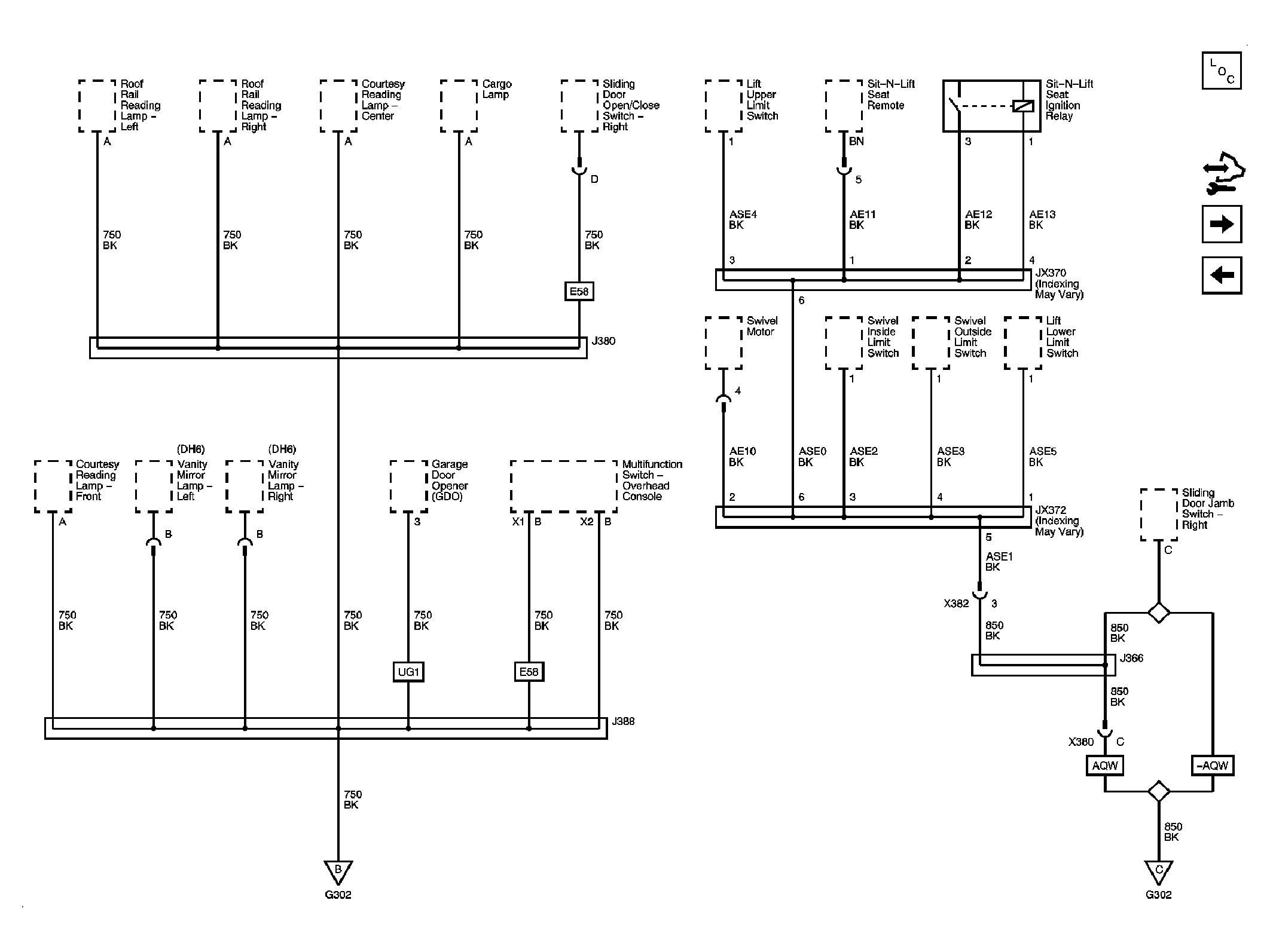

Fig 8: G302 2 of 2

GM1921960

Courtesy of GENERAL MOTORS CORP.

Fig 9: G400

GM1921962

Courtesy of GENERAL MOTORS CORP.

Fig 10: G401

GM1921965

Courtesy of GENERAL MOTORS CORP.
