Instrument Cluster Schematics

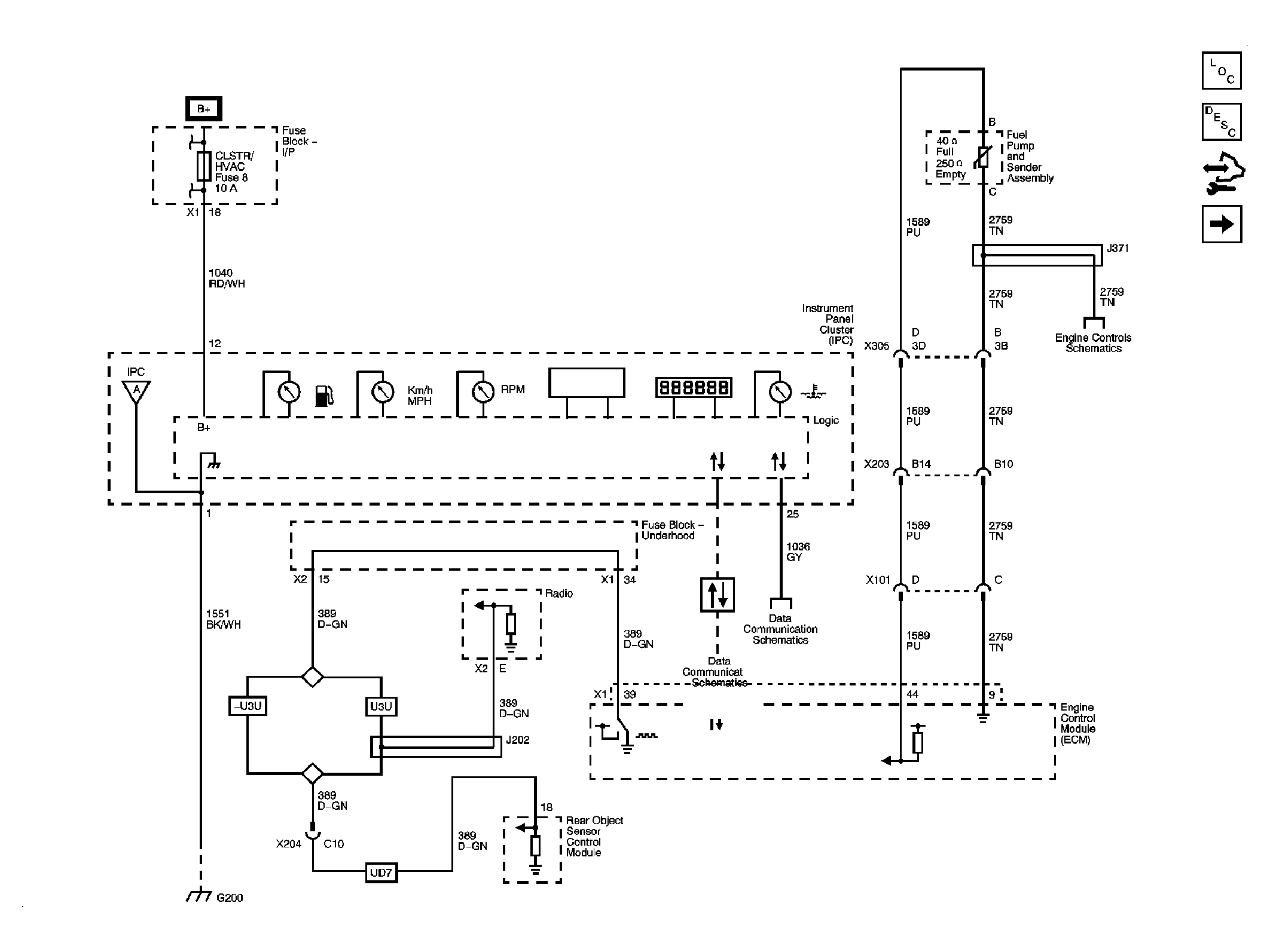

Fig 1: Gages, Ground, and Power
GM1921780Courtesy of GENERAL MOTORS CORP.

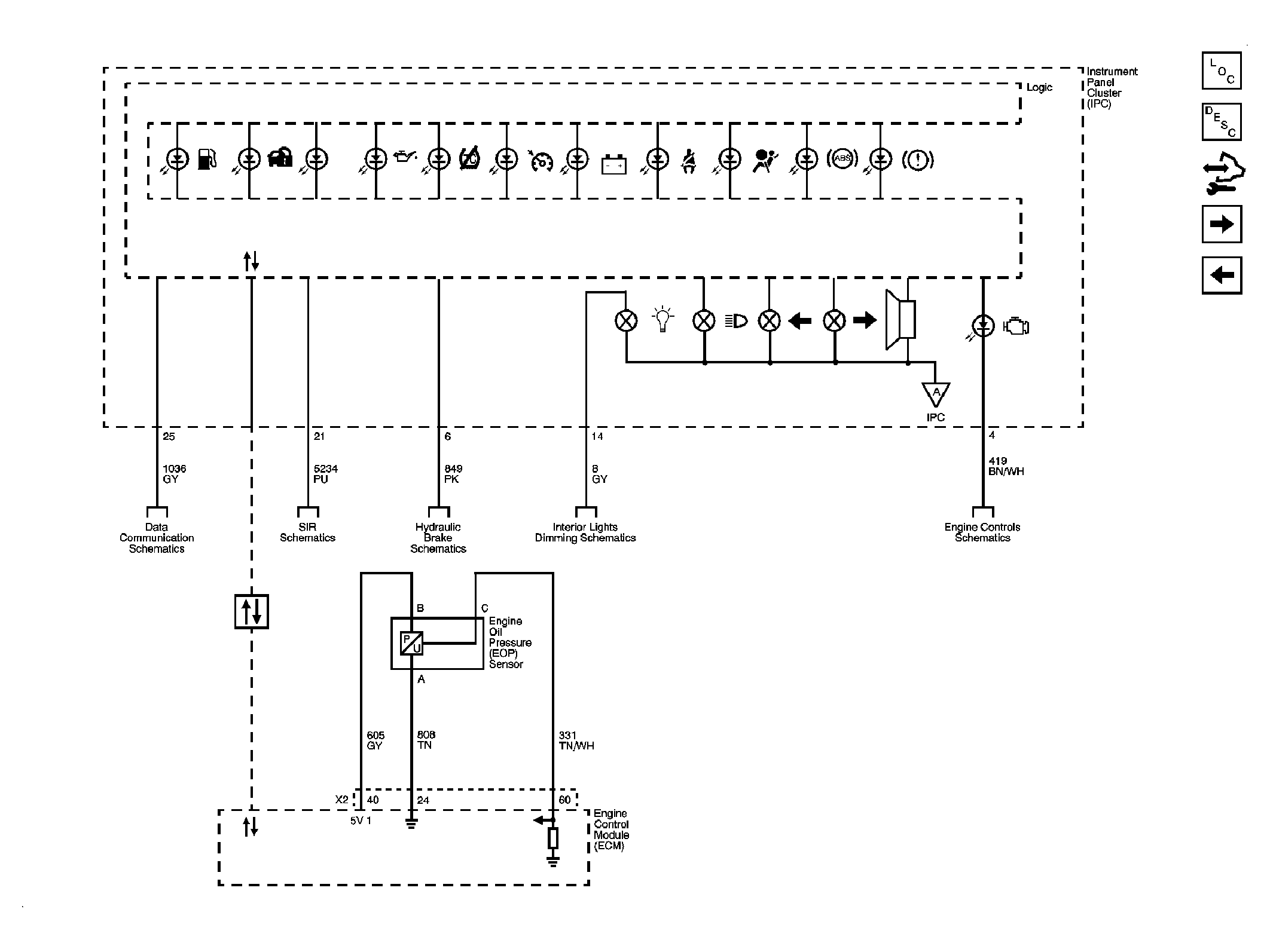

Fig 2: Indicators and Lighting
GM1921784Courtesy of GENERAL MOTORS CORP.
Fig 3: Messages
GM1921787Courtesy of GENERAL MOTORS CORP.
