Rear Seat Schematics

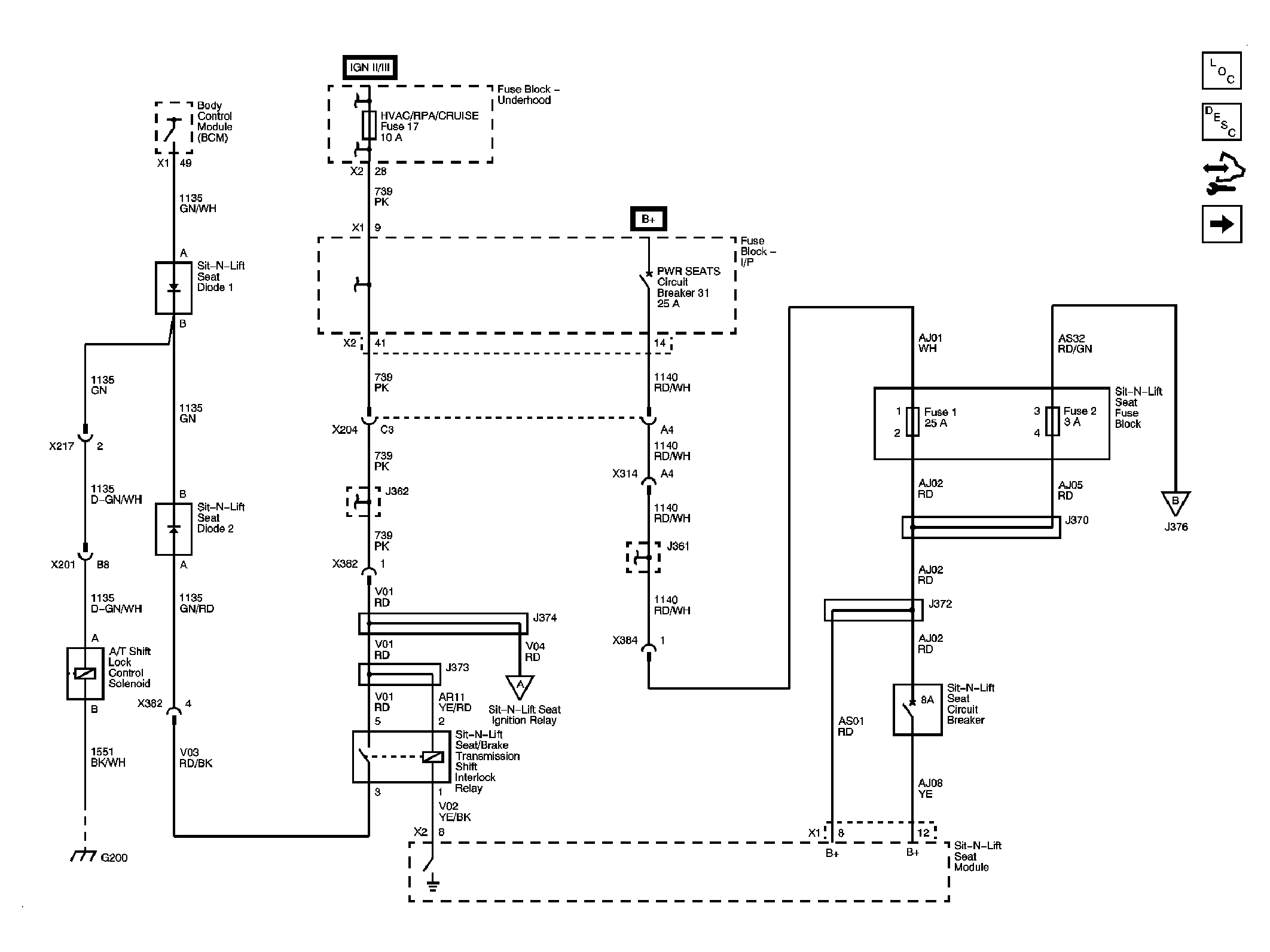

Fig 1: Sit-N-Lift Seat Power and A/T Shift Interlock
GM1921992Courtesy of GENERAL MOTORS CORP.

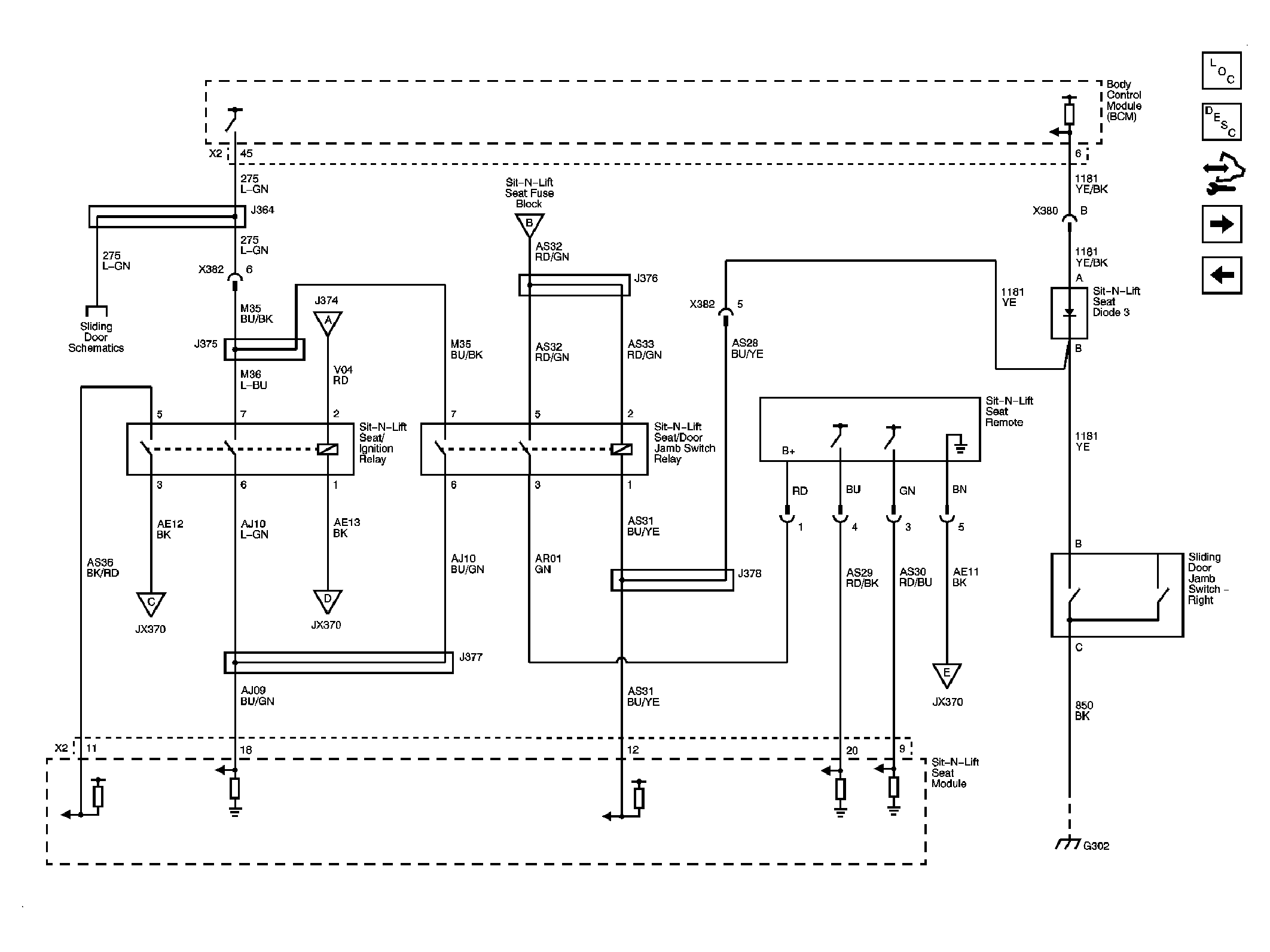

Fig 2: Sit-N-Lift Seat Door and PNP Interlocks, and Remote
GM1921996Courtesy of GENERAL MOTORS CORP.

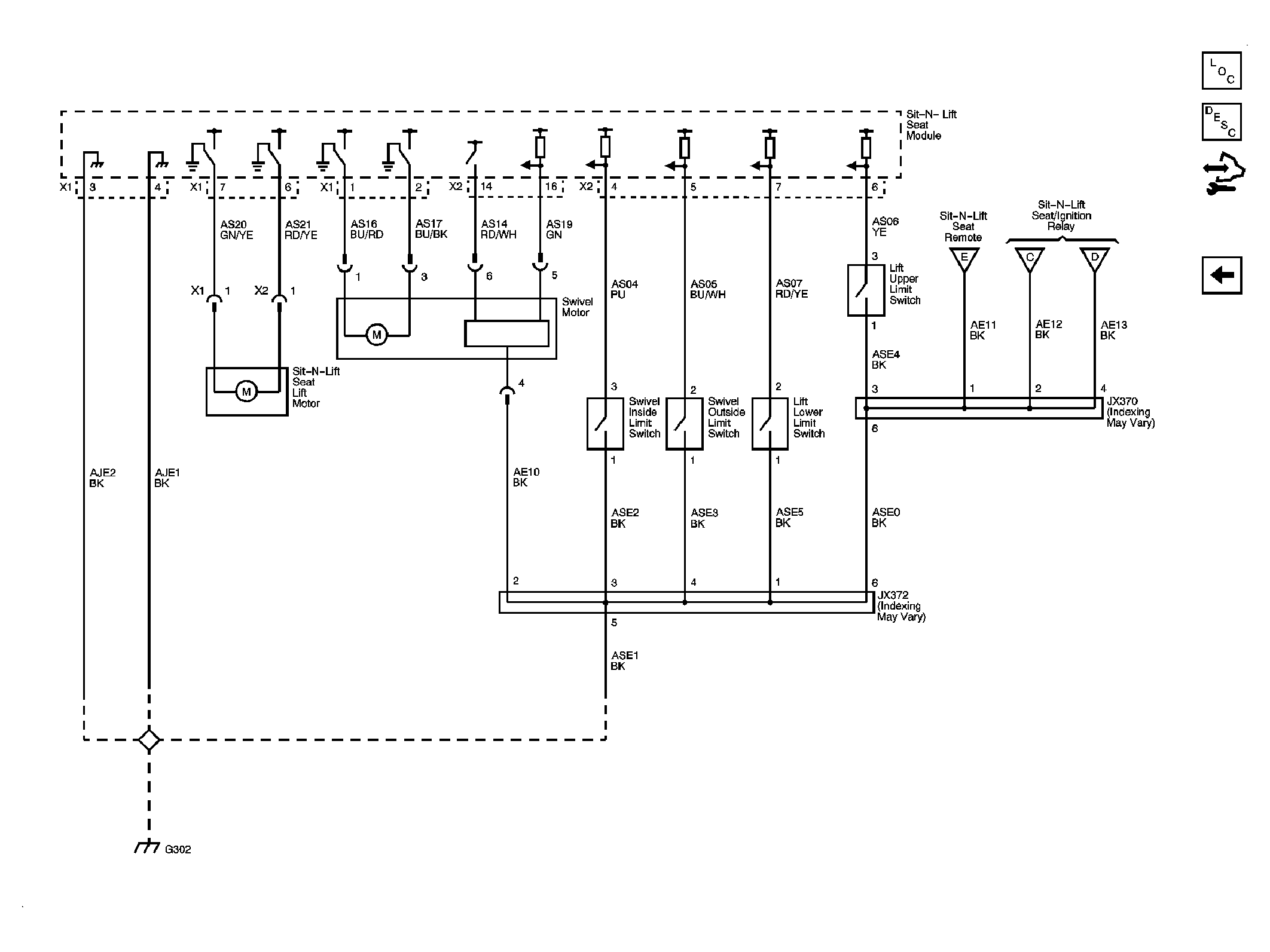

Fig 3: Sit-N-Lift Seat Grounds and Motors Controls
GM1922000Courtesy of GENERAL MOTORS CORP.
