Driver Seat Schematics

Fig 1: Power Seat

GM1921968

Courtesy of GENERAL MOTORS CORP.

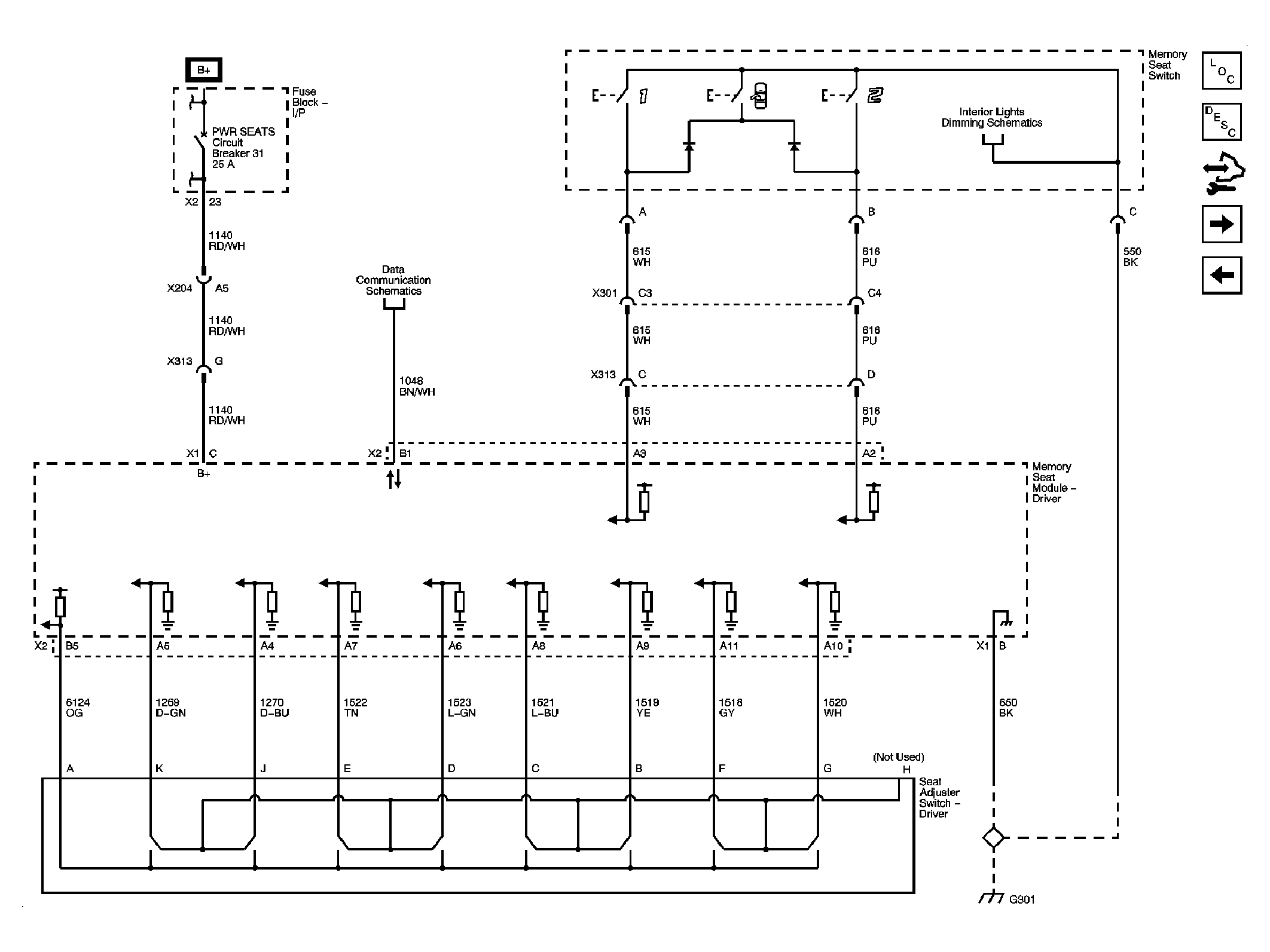

Fig 2: Memory Seat Controls

GM1921970

Courtesy of GENERAL MOTORS CORP.

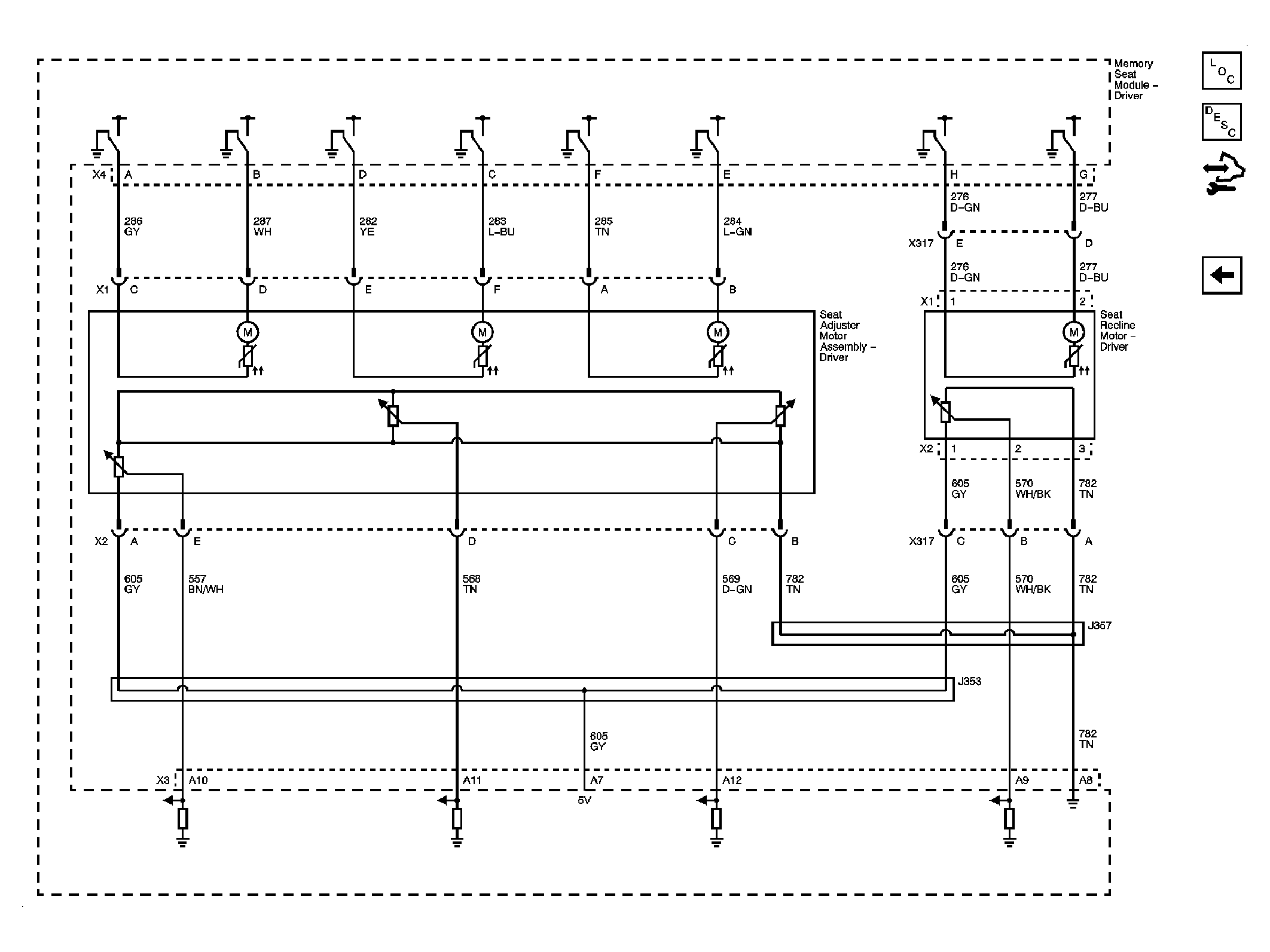

Fig 3: Memory Seat Motors and Sensors

GM1921975

Courtesy of GENERAL MOTORS CORP.
