Sliding Door Schematics

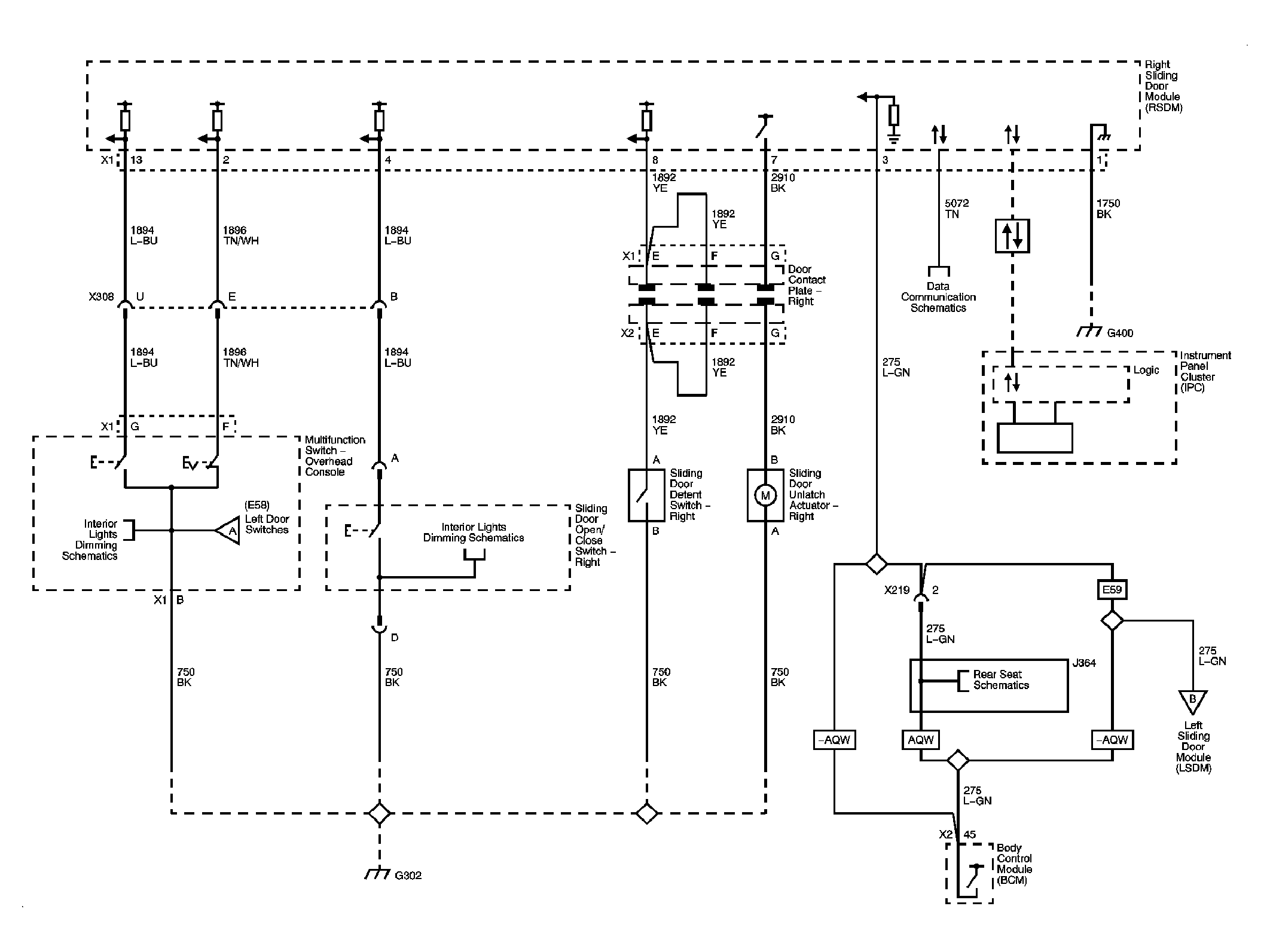

Fig 1: Right Door Controls
GM1921715Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Door Motor
GM1921717Courtesy of GENERAL MOTORS CORP.

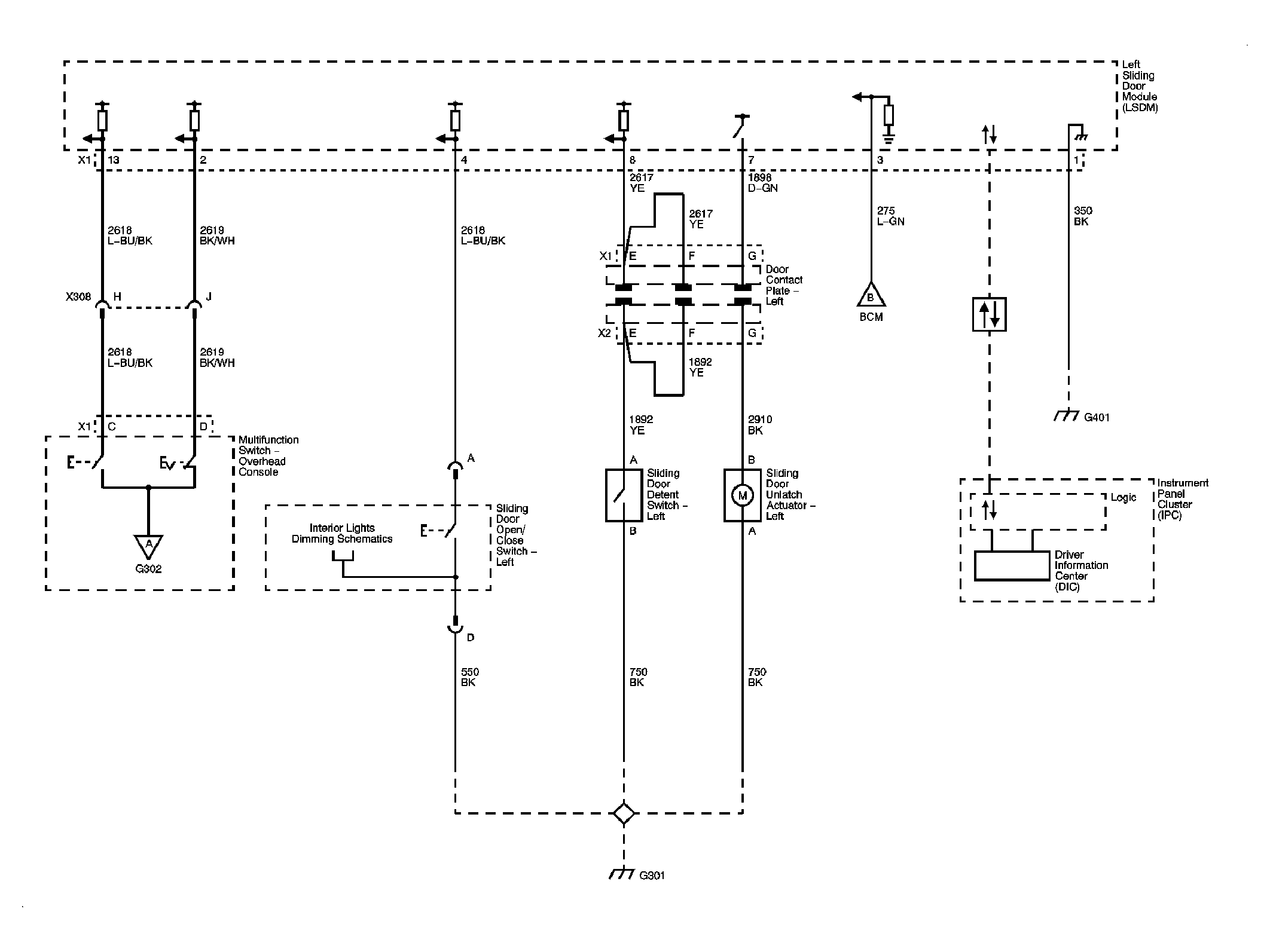

Fig 3: Left Door Controls
GM1921719Courtesy of GENERAL MOTORS CORP.
Fig 4: Left Door Motor
GM1921722Courtesy of GENERAL MOTORS CORP.
