Vibration Analysis - Driveline

Vibration Analysis - Driveline

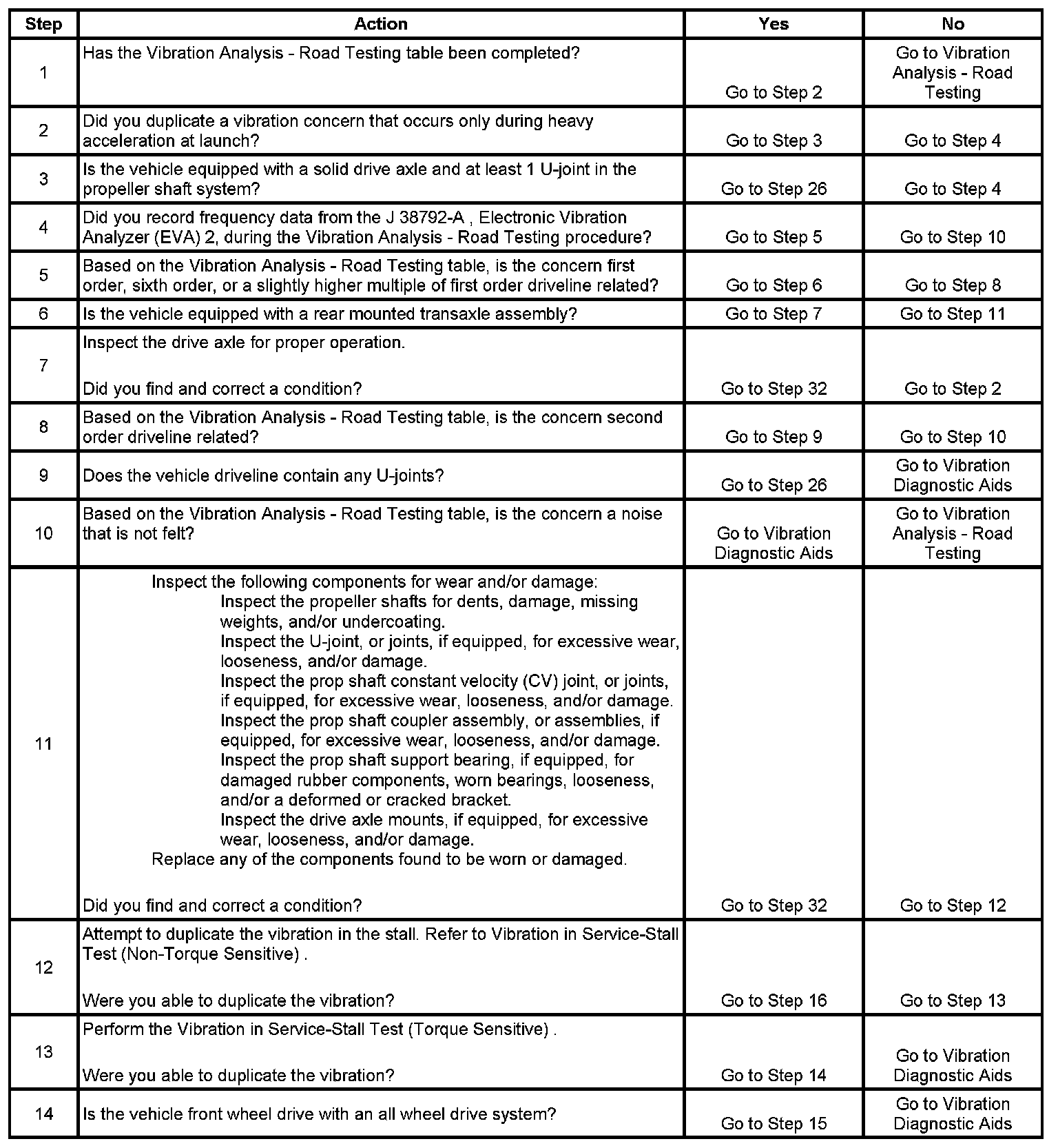

Step 1-14:

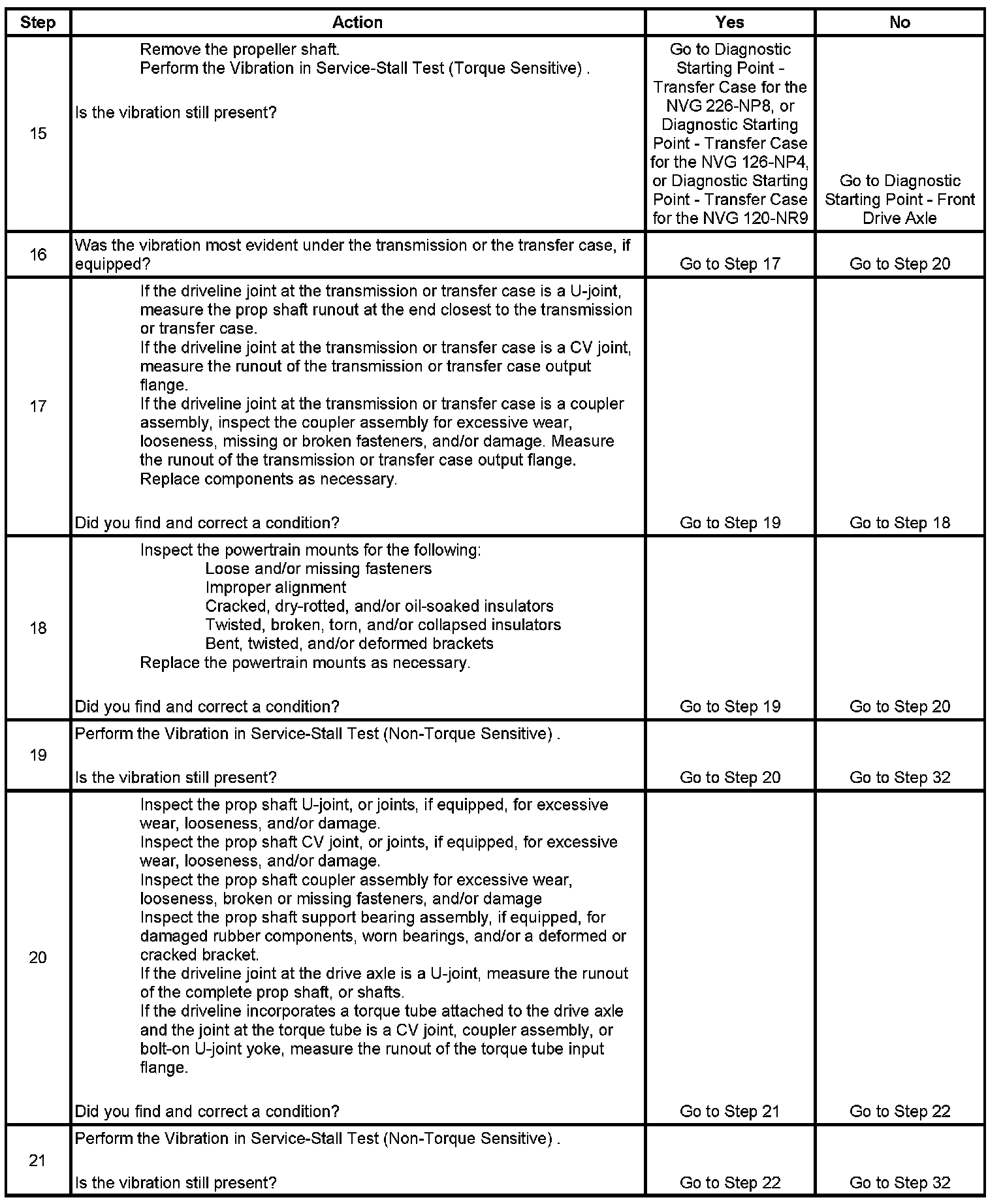

Step 15-21:

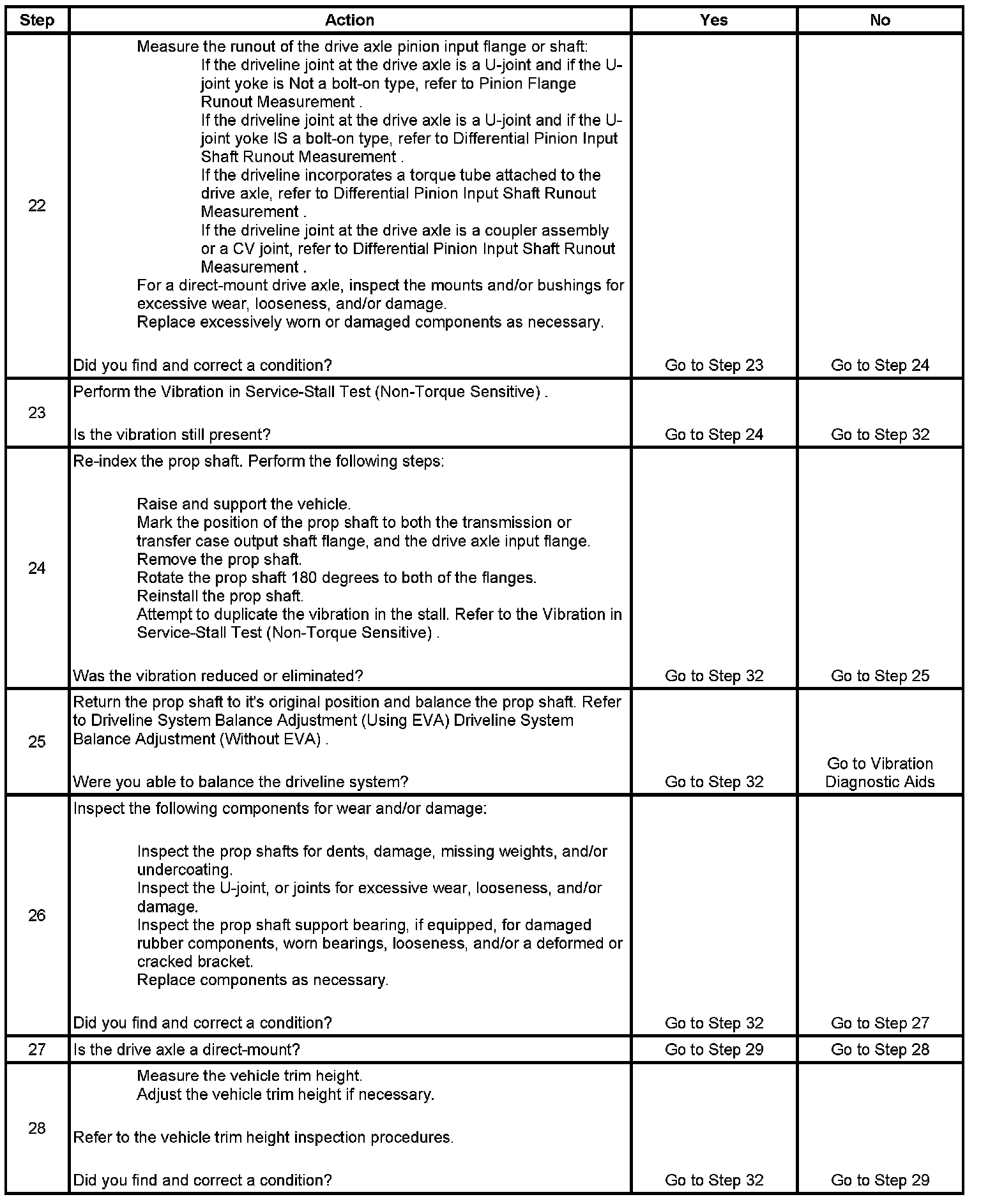

Step 22-28:

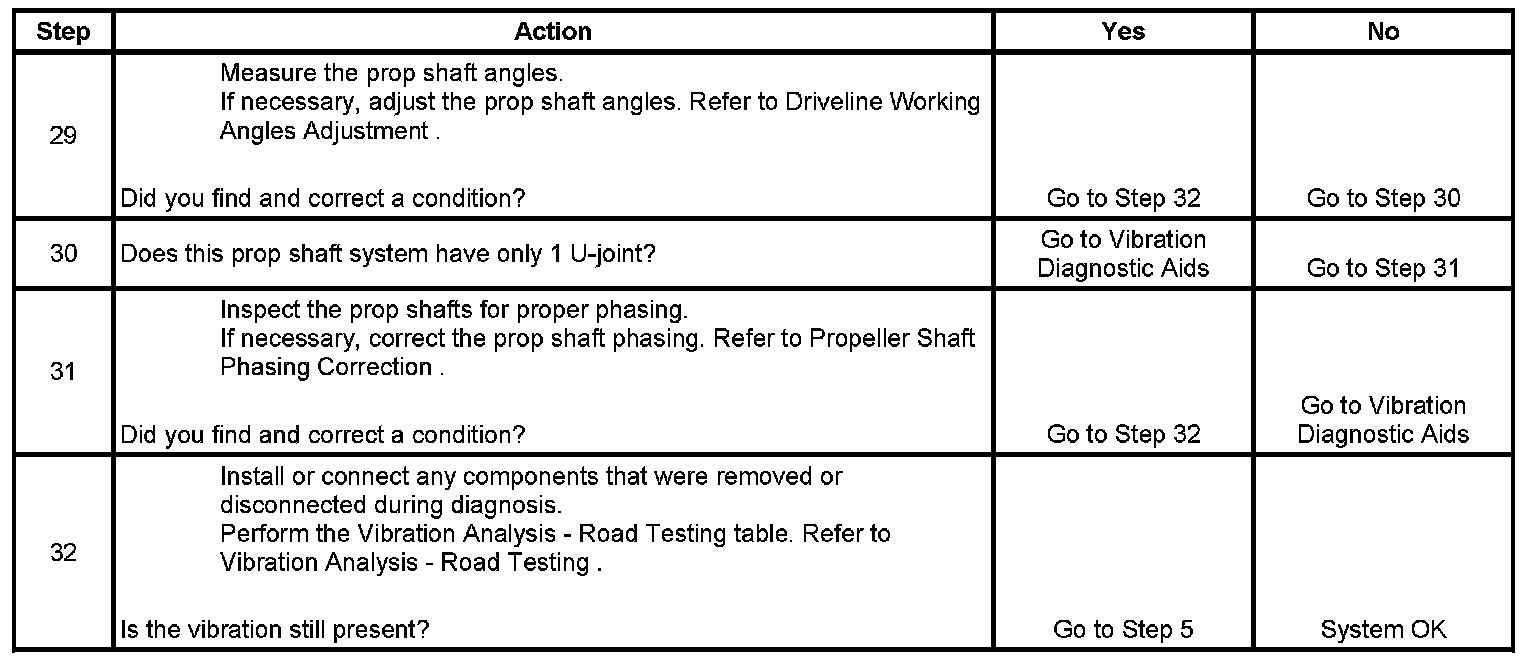

Step 29-32:
