Power Steering Pump Bracket Replacement

Power Steering Pump Bracket Replacement

Removal Procedure





1. Remove the power steering pump. Refer to Power Steering Pump Replacement (4.2L) (Service and Repair)Power Steering Pump Replacement (Except 4.2L) (Service and Repair) .
2. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .

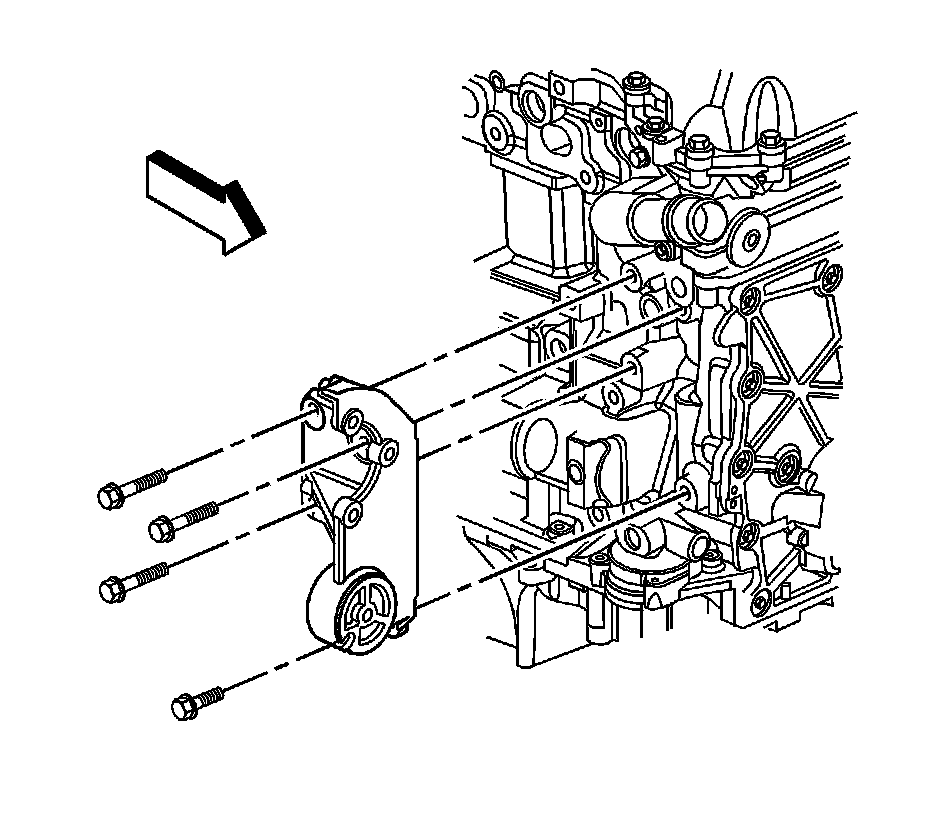

3. Remove the power steering pump bracket mounting bolts.
4. Remove the power steering pump bracket.



Installation Procedure





1. Install the power steering pump bracket.

Notice: Refer to Fastener Notice .

2. Install the power steering pump bracket mounting bolts.

Tighten the power steering pump mounting bolts to 50 N.m (37 lb ft).

3. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
4. Install the power steering pump. Refer to Power Steering Pump Replacement (4.2L) (Service and Repair)Power Steering Pump Replacement (Except 4.2L) (Service and Repair) .
