Air Bag: Diagrams



Component Connector End Views - Continued

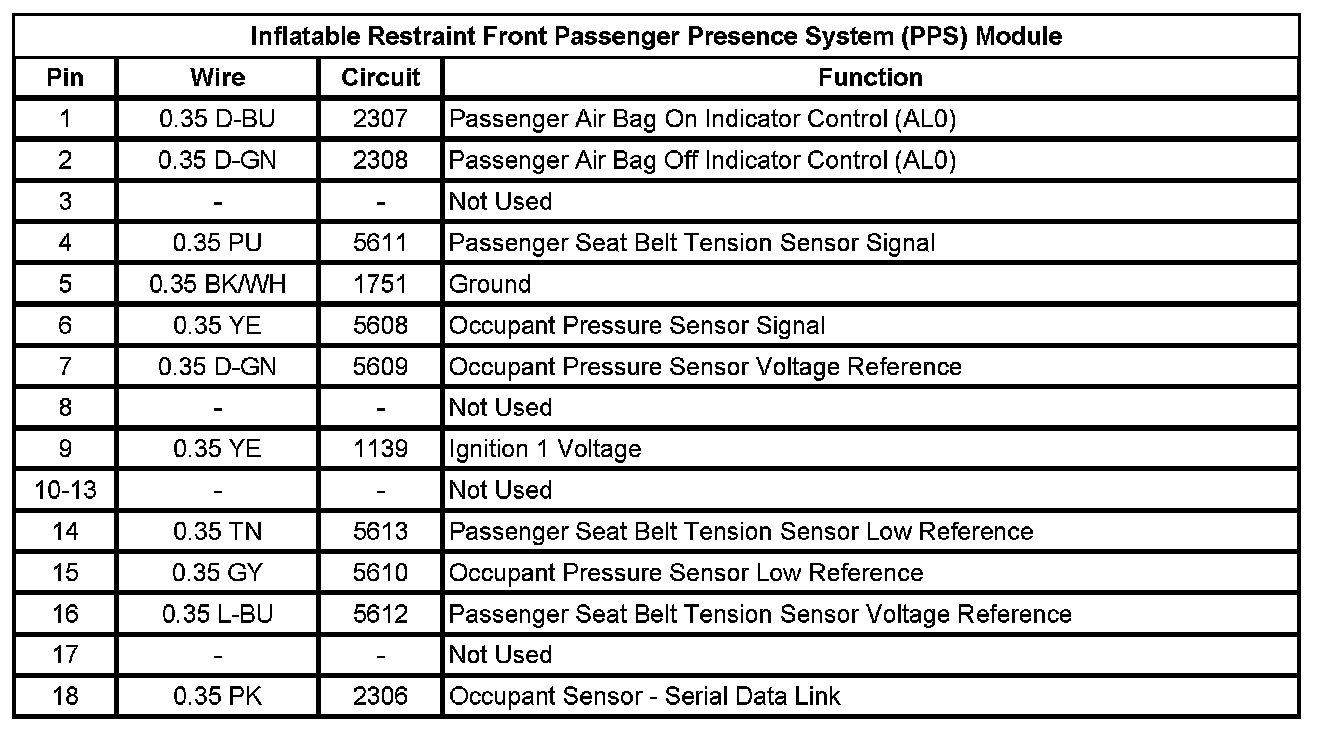

Inflatable Restraint Front Passenger Presence System (PPS) Module














Inflatable Restraint I/P Module














Inflatable Restraint Roof Rail Module - Left (ASF)














Inflatable Restraint Roof Rail Module - Right (ASF)














Inflatable Restraint Steering Wheel Module X1














Inflatable Restraint Steering Wheel Module X2
