Electrical Diagrams

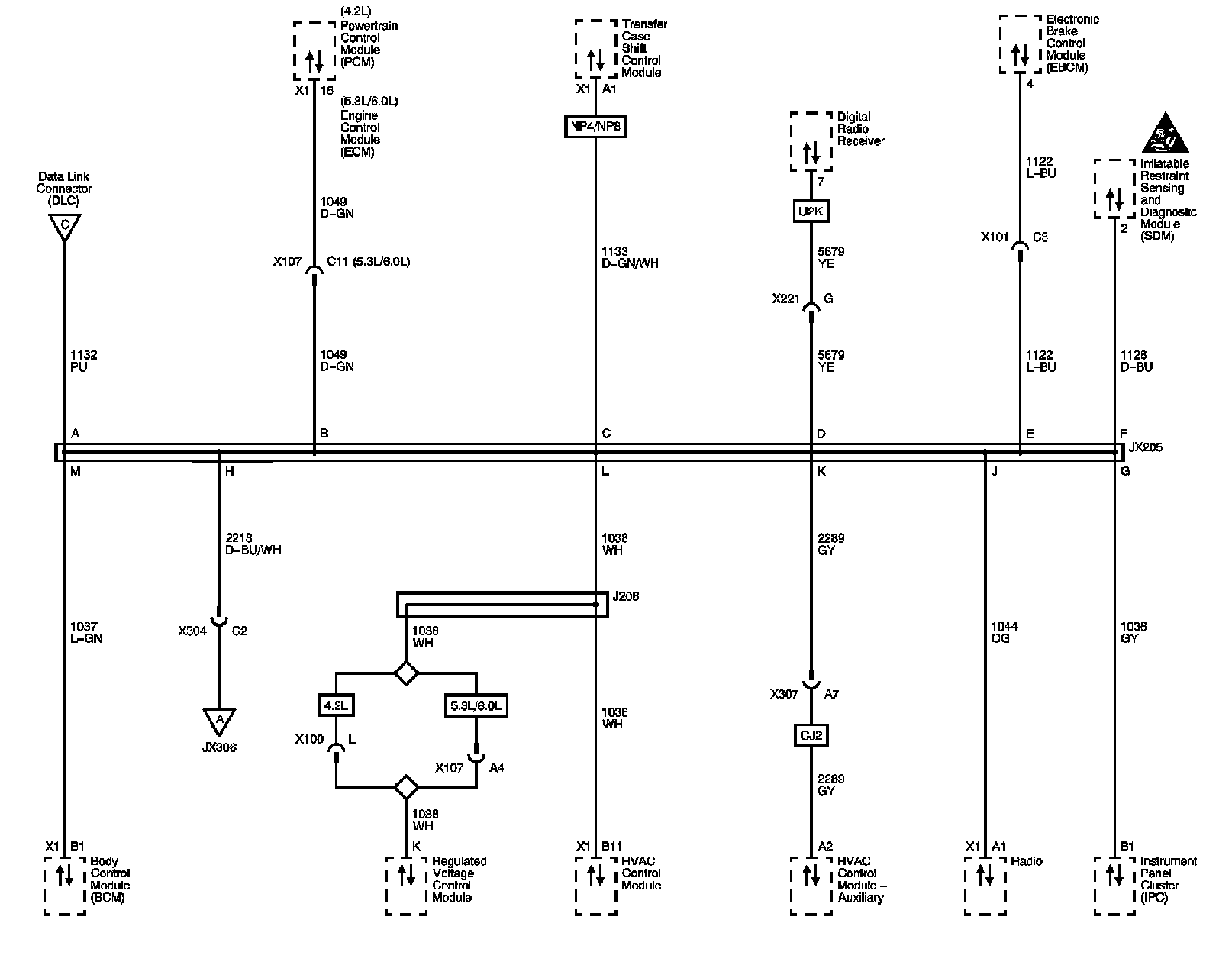

Data Communication Schematics

Power, Ground, and Data Link Connector






SP205






SP306






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
