Power Distribution Diagram 12

Power Distribution Schematics

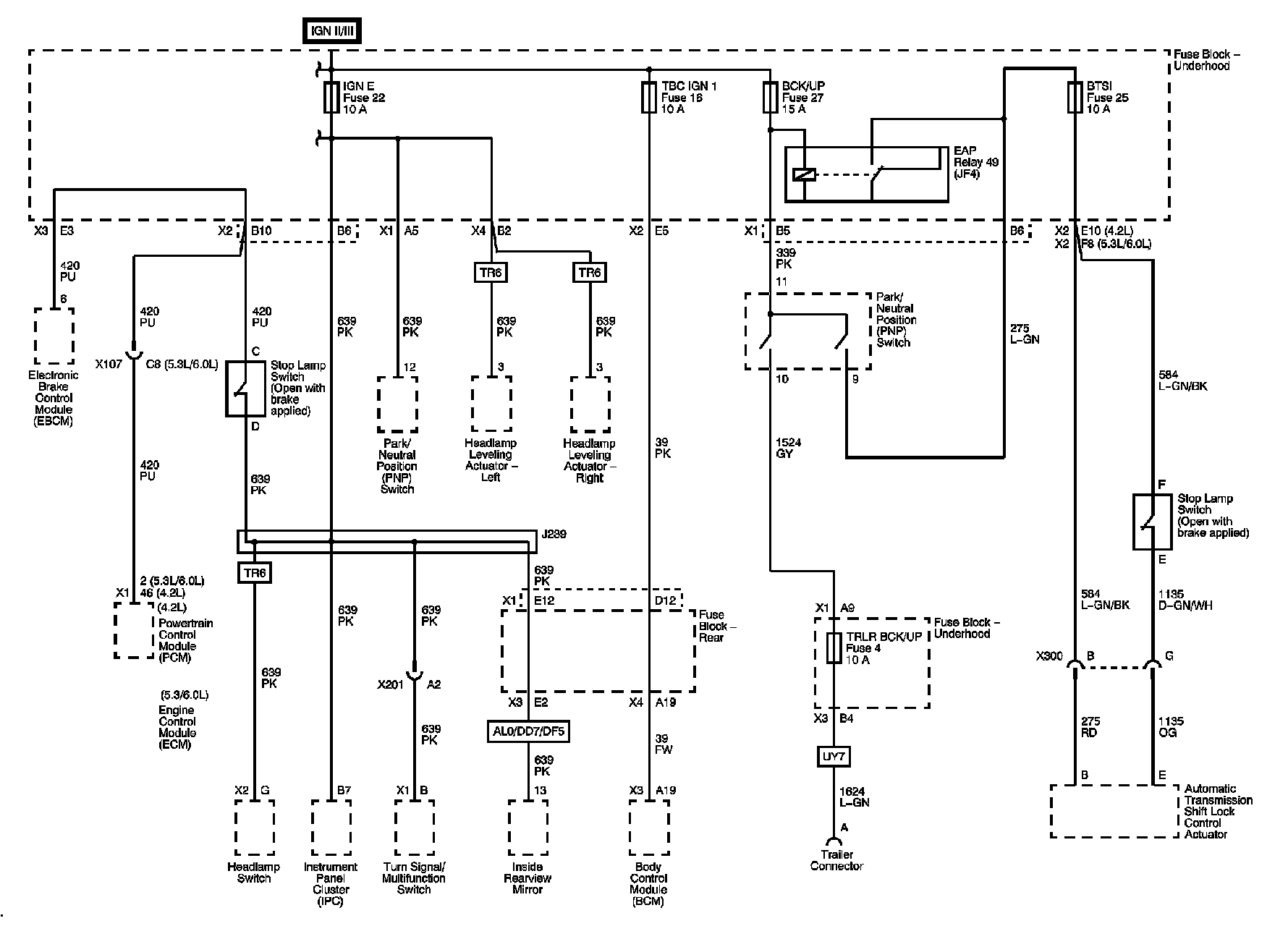

BCK/UP, BTSI, IGN E, TBC IGN 1, and TRLR BCK/UP Fuses

Power Distribution Diagram 12:

Next Diagram: Power Distribution Diagram 13

Previous Diagram: Power Distribution Diagram 11

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
