Left Front Door Harness

Harness Routing Views

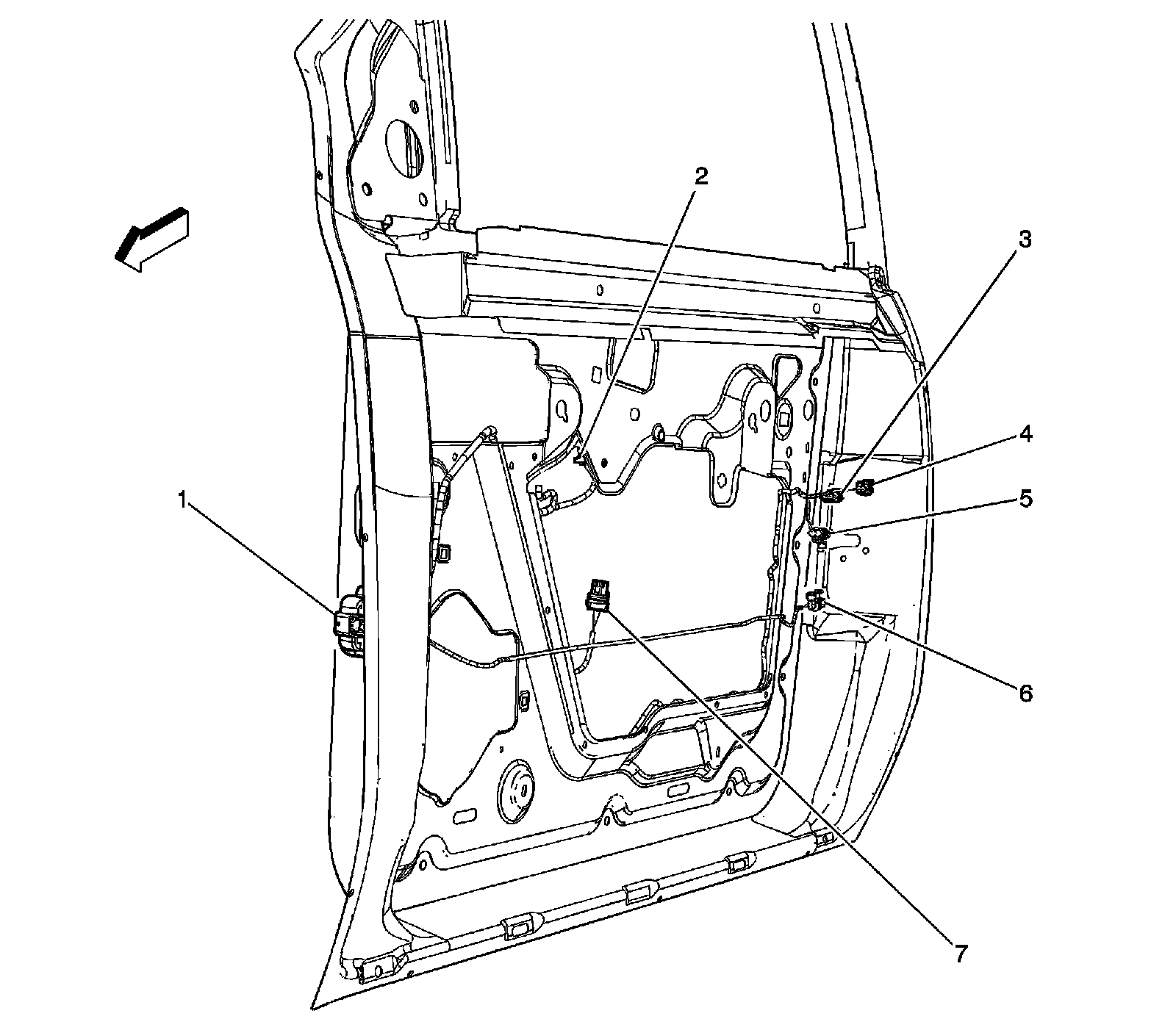

Left Front Door Harness Routing




1 - C500
2 - Driver Door Module (DDM) C2
3 - Door Latch Assembly - Driver C1
4 - Door Latch Assembly - Driver C3 (UA2/UA6)
5 - Door Latch Assembly - Driver C2
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
7 - Window Motor - Driver
