Air Conditioning (A/C) Diagnostics - Pressure Zone B



Air Conditioning (A/C) Diagnostics - Pressure Zone B

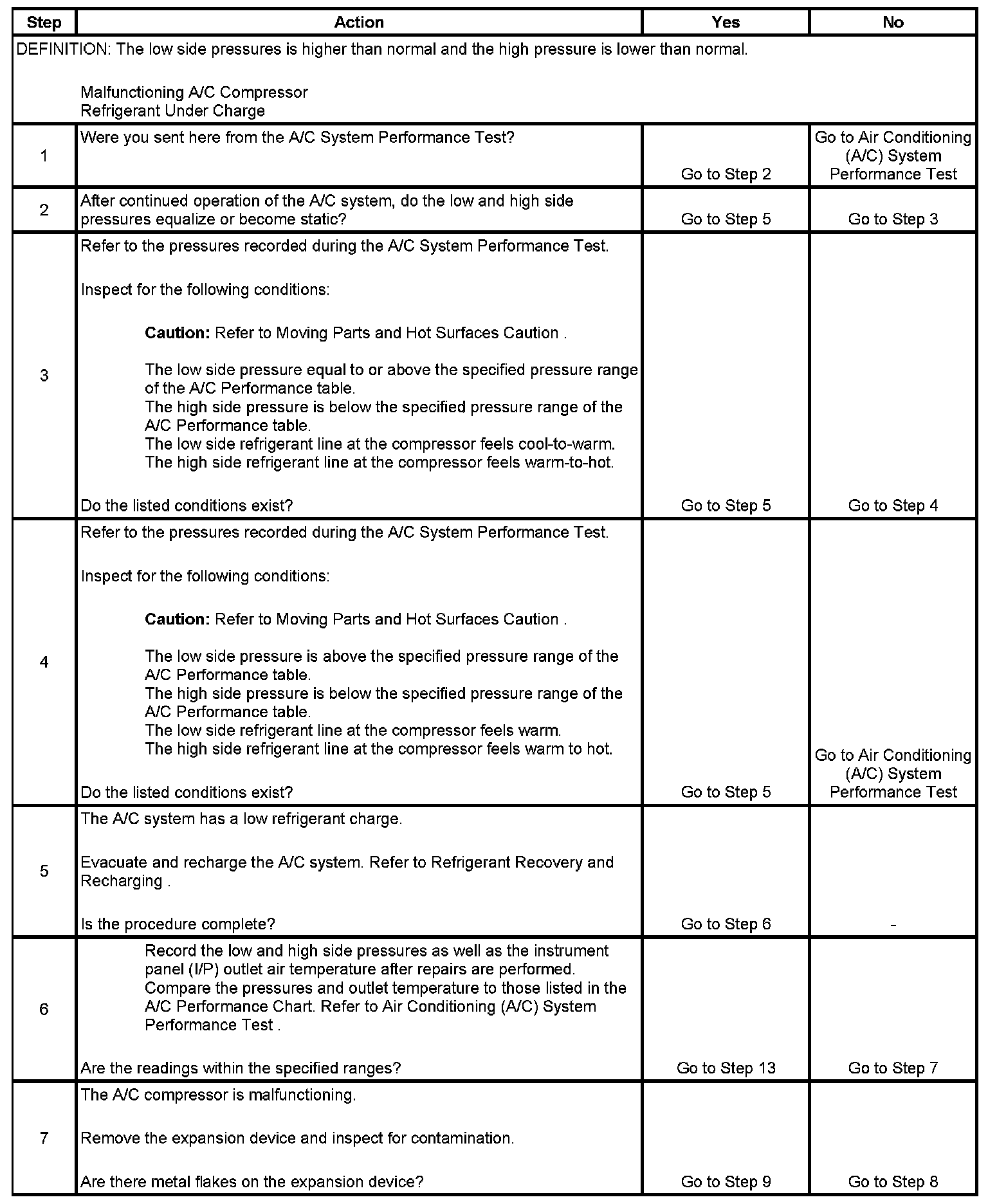

Step 1 - Step 7:

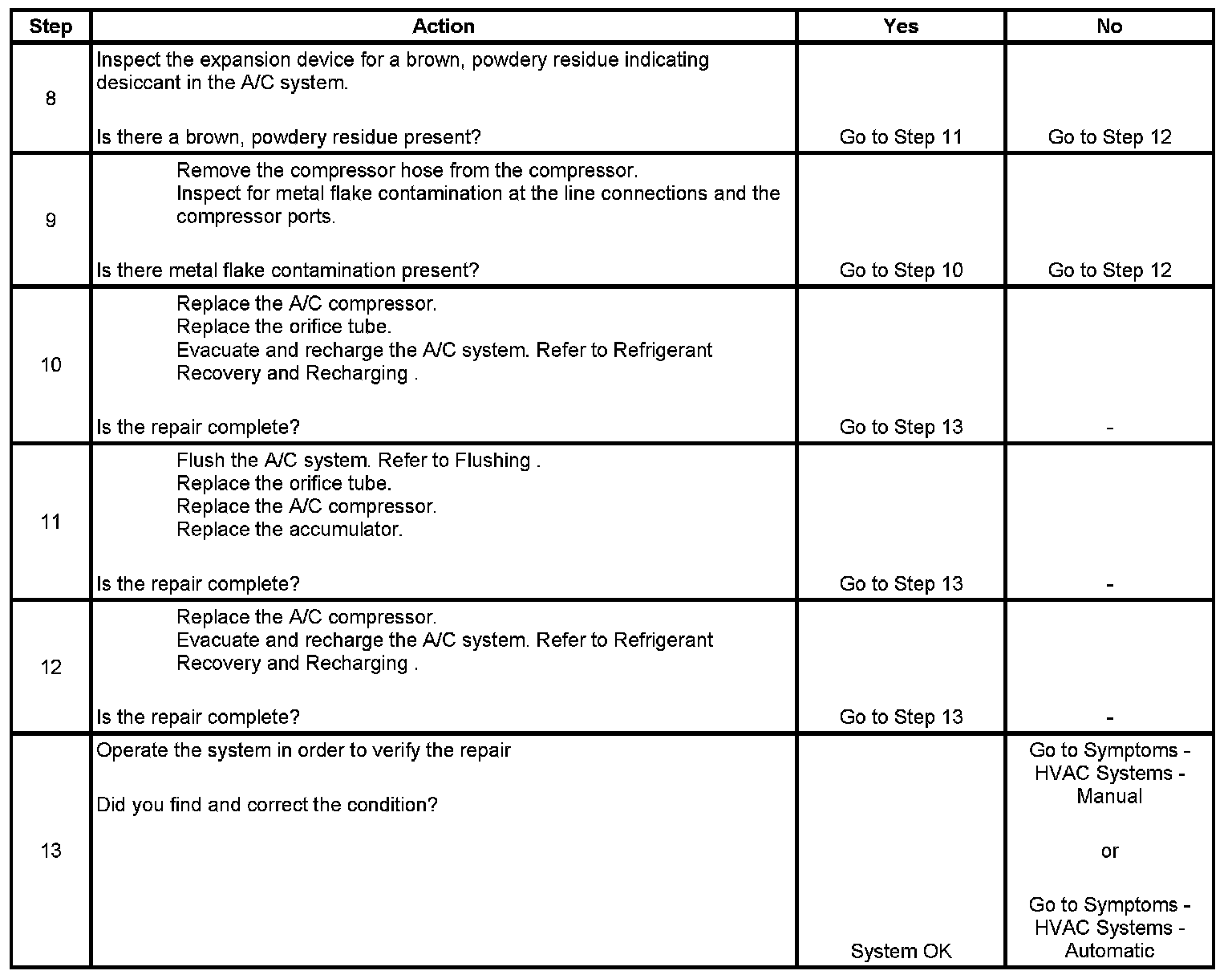

Step 8 - Step 13:
