89. Drive Belt Tensioner Installation



Drive Belt Tensioner Installation

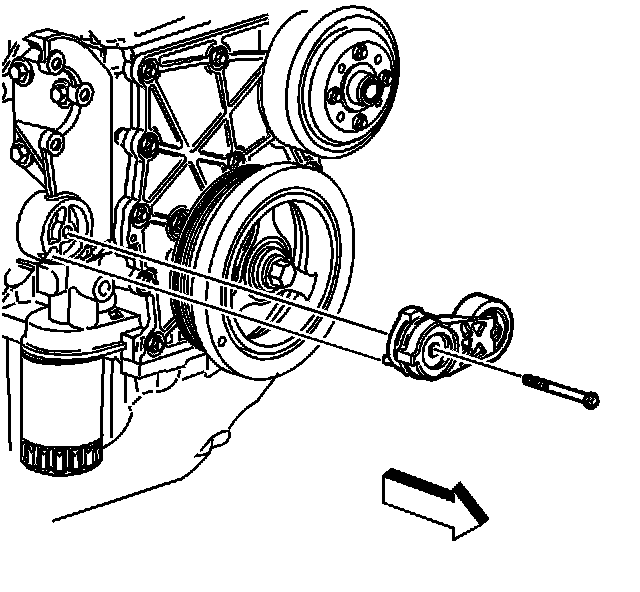

1. Install the drive belt tensioner.

Notice: Refer to Fastener Notice .

2. Install the drive belt tensioner bolt.

Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).
