66. Engine Lift Bracket Installation

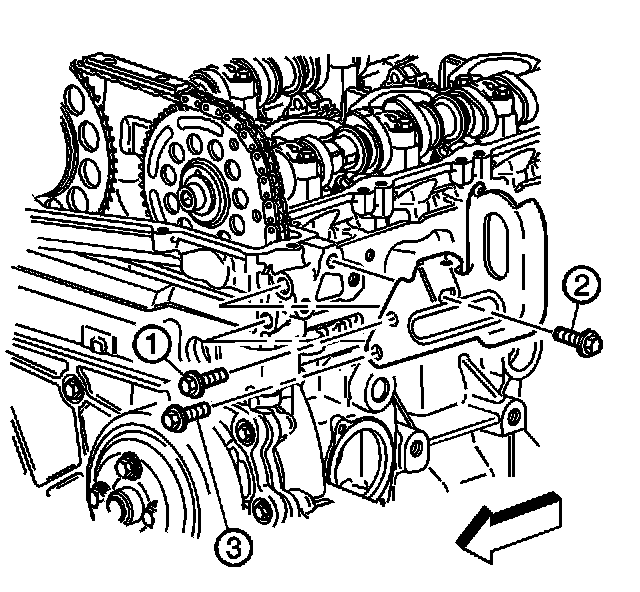

Engine Lift Bracket Installation





1. Install the engine lift bracket.

Notice: Refer to Fastener Notice .

2. Install the engine lift bracket bolts in sequence.

Tighten the engine lift bracket bolts in sequence to 50 N.m (37 lb ft)
