Master Splice List
Master Splice List
Master Electrical Component List

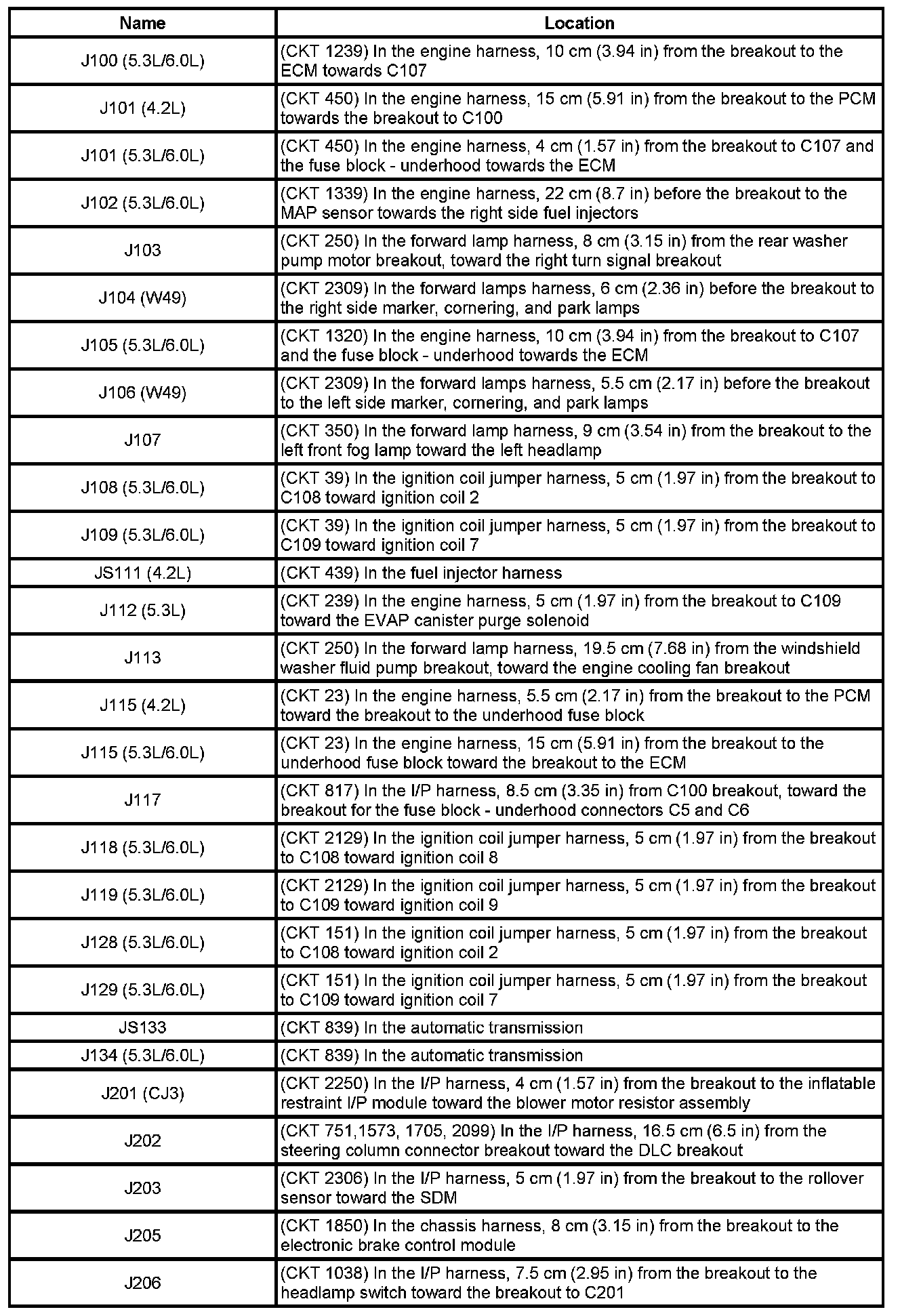

J100 - J206:

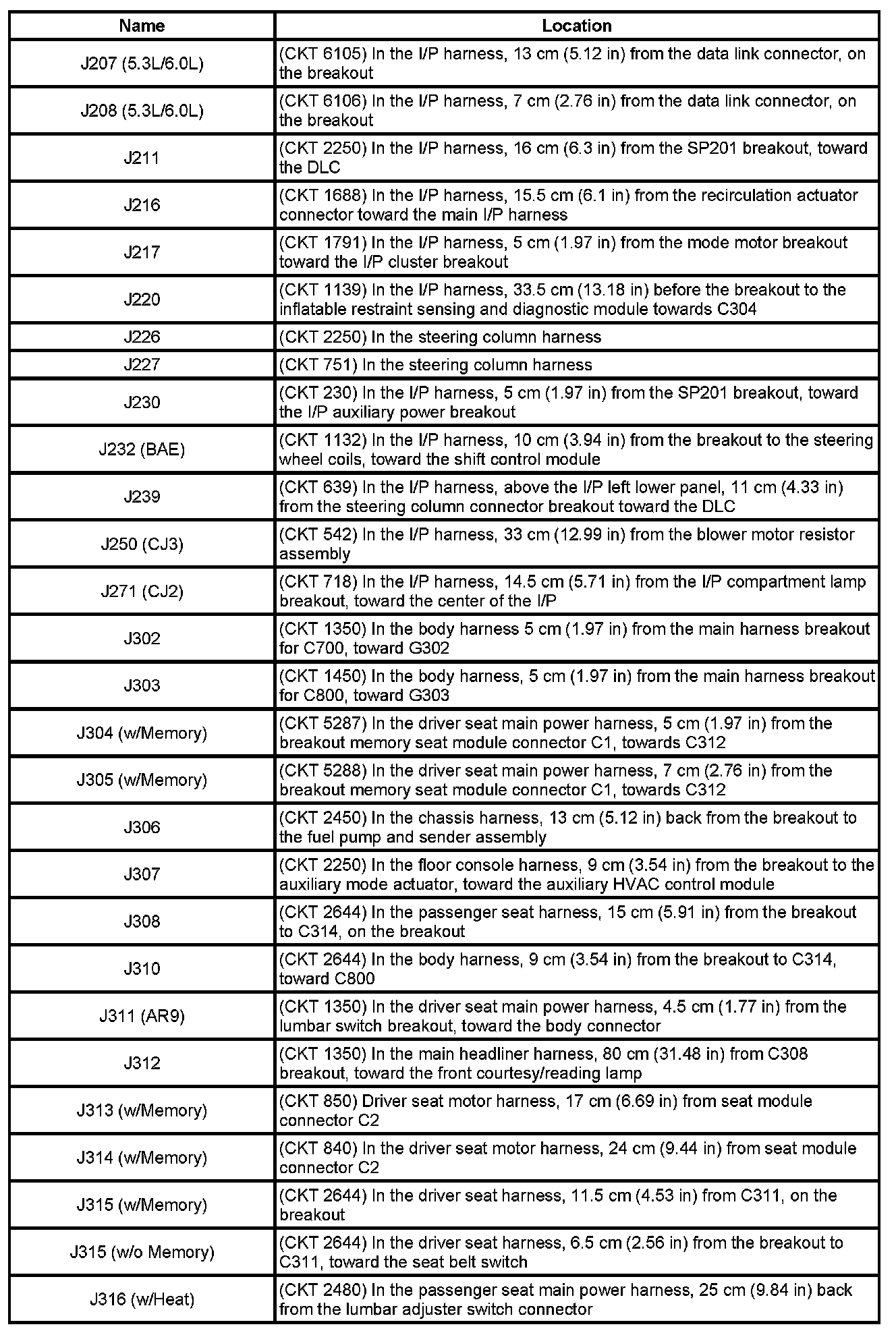

J207 - J316:

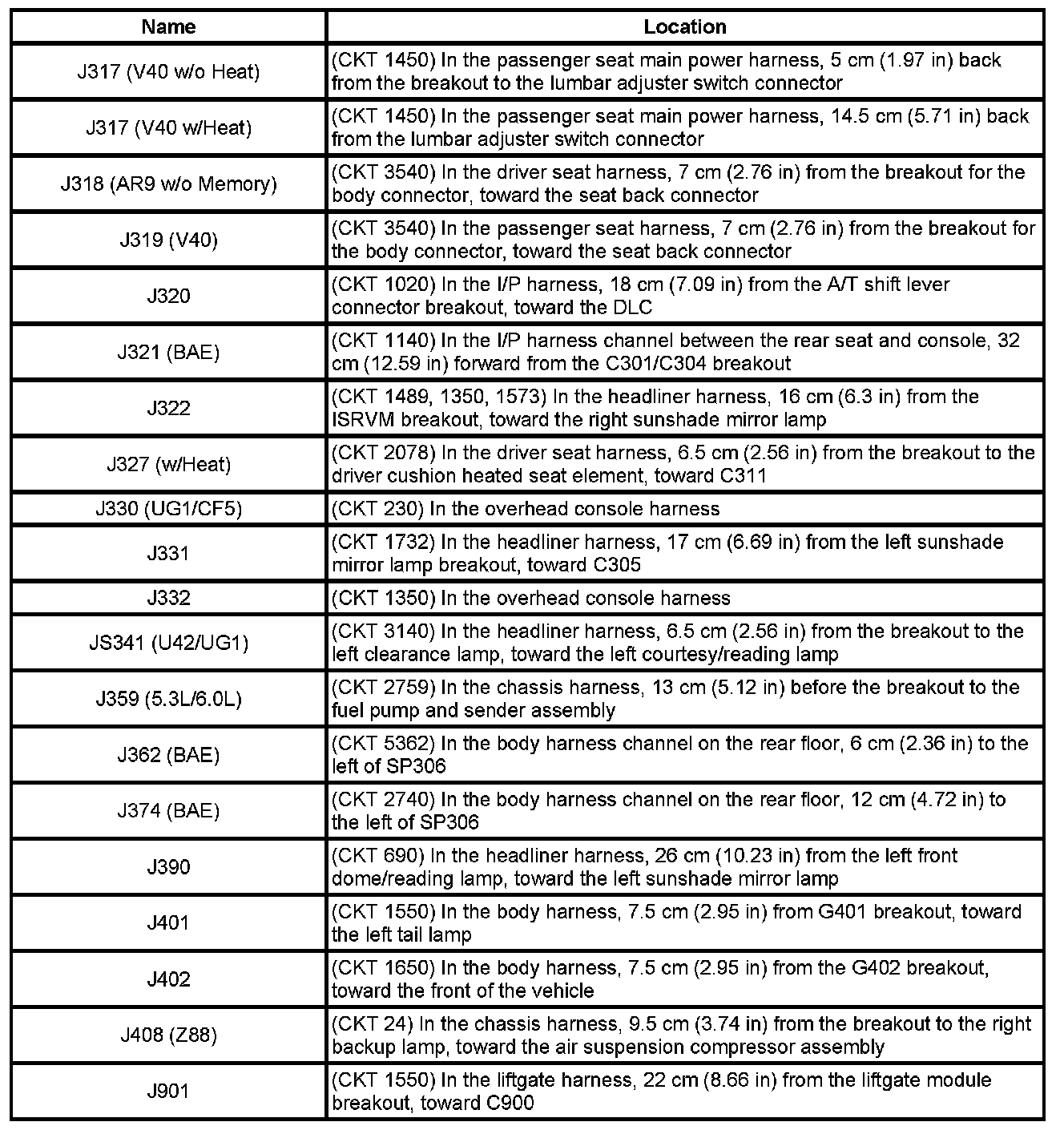

J317 - J901:
JX201 - JX306:
