Master Connector List
Master Electrical Component List
X100 - X105:

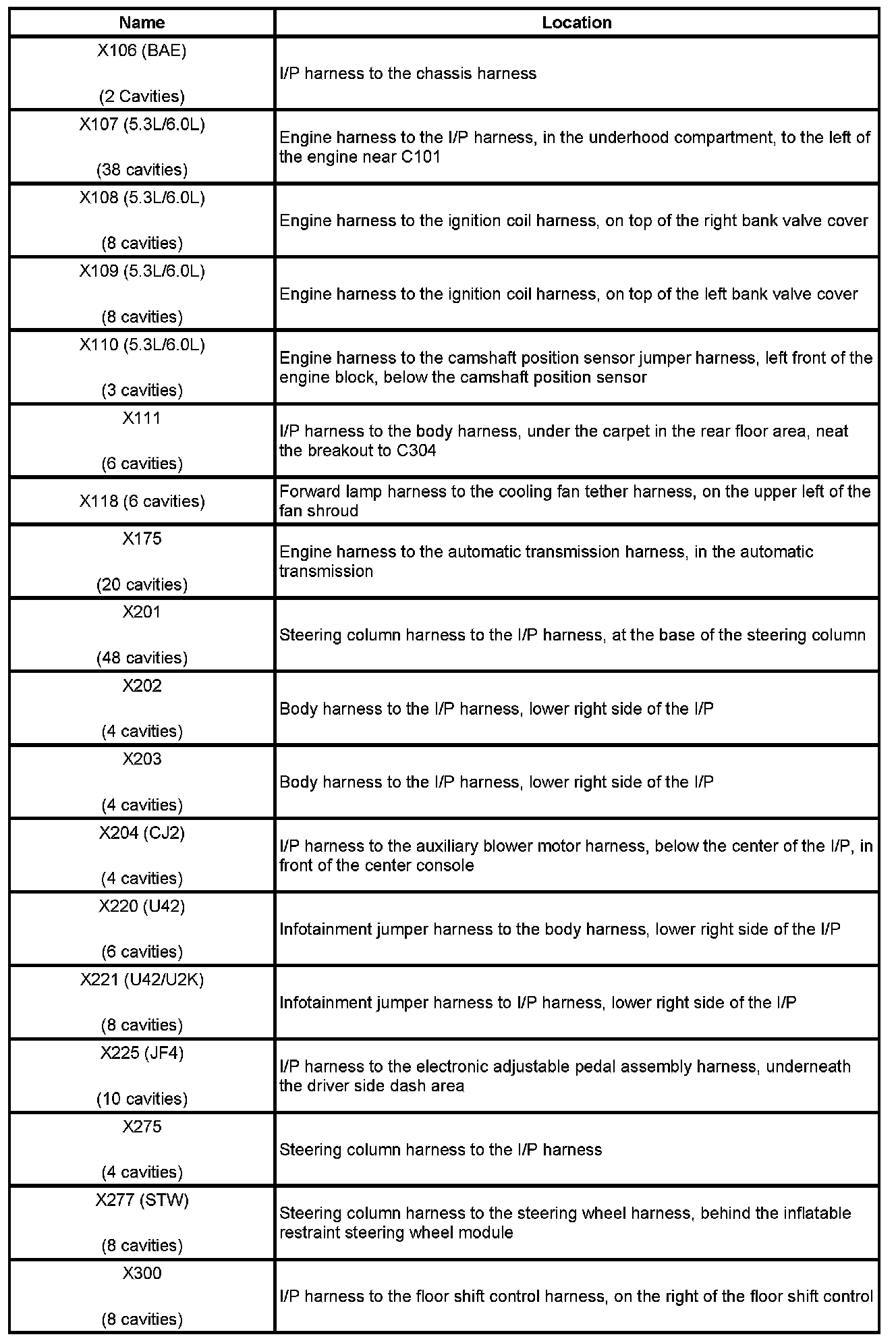

X106 - X300:

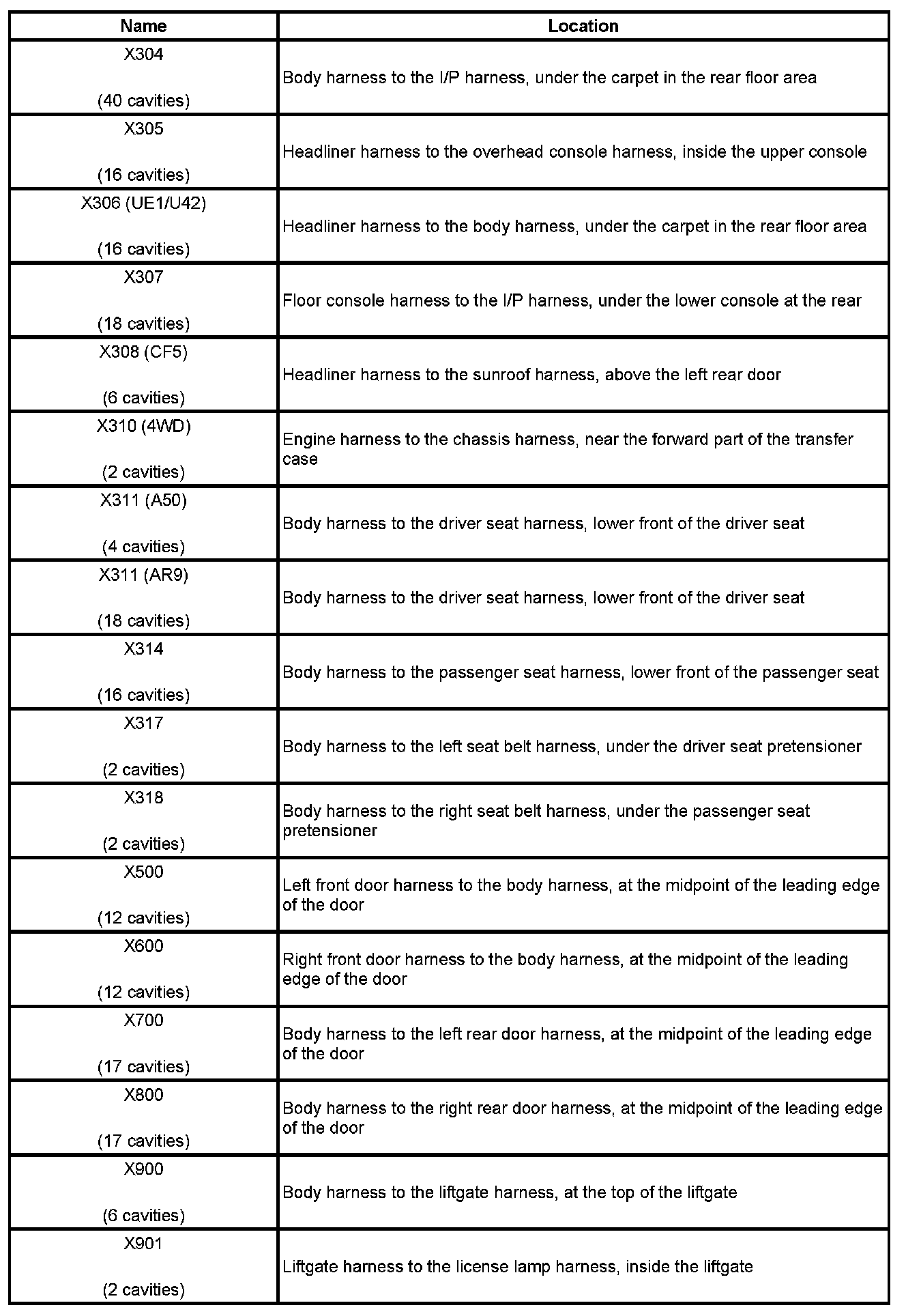

X304 - X901:
X904 - X905:
