Power Seat Switch



Component Connector End Views - Continued

Lumbar Adjuster Switch - Driver (AR9)














Lumbar Adjuster Switch - Passenger (V40)

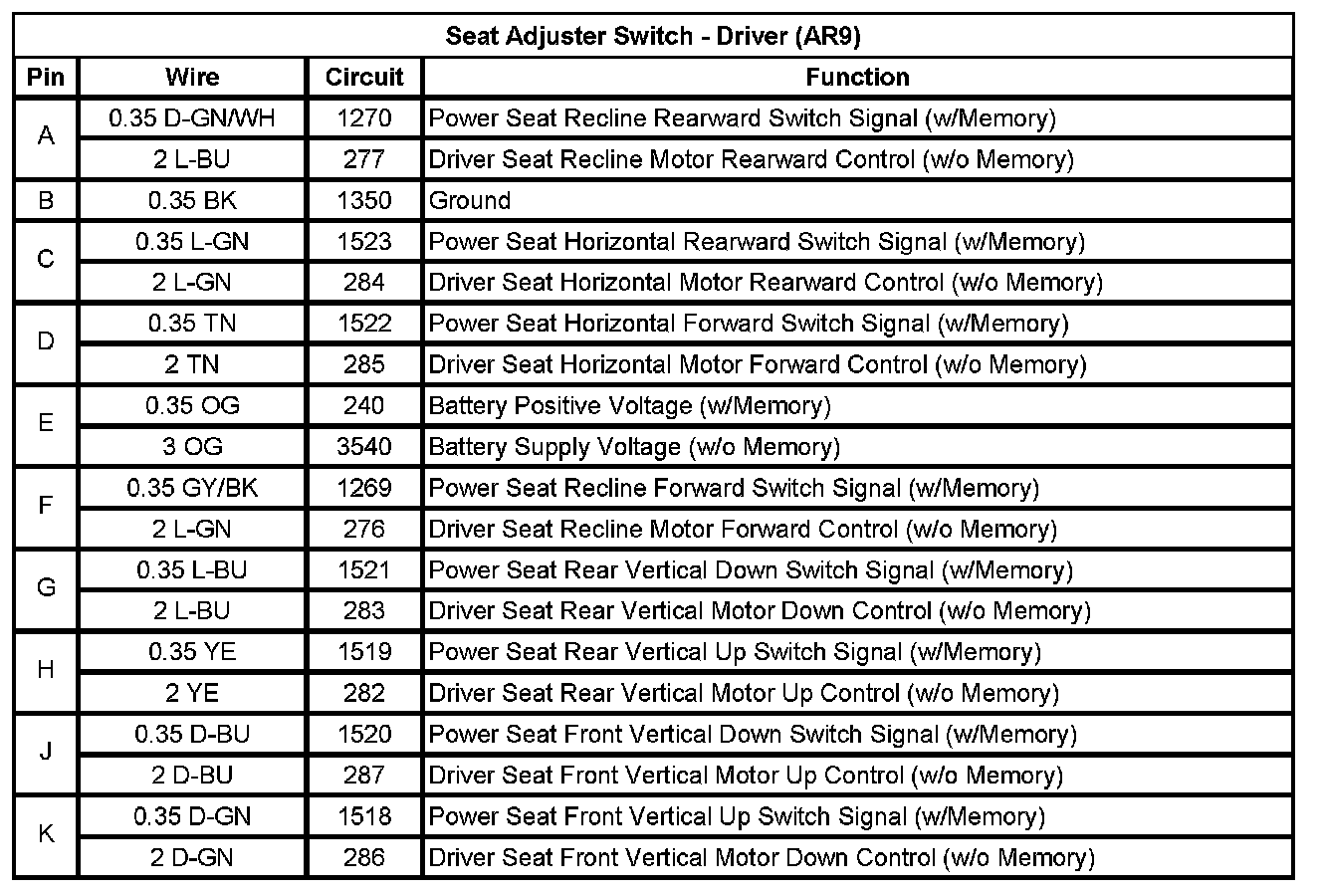

Seat Adjuster Switch - Driver (AR9)














Seat Adjuster Switch - Passenger (V40)
