Home >> Chevrolet >> 2008 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> X500 - X599

X500 - X599

Inline Harness Connector End Views

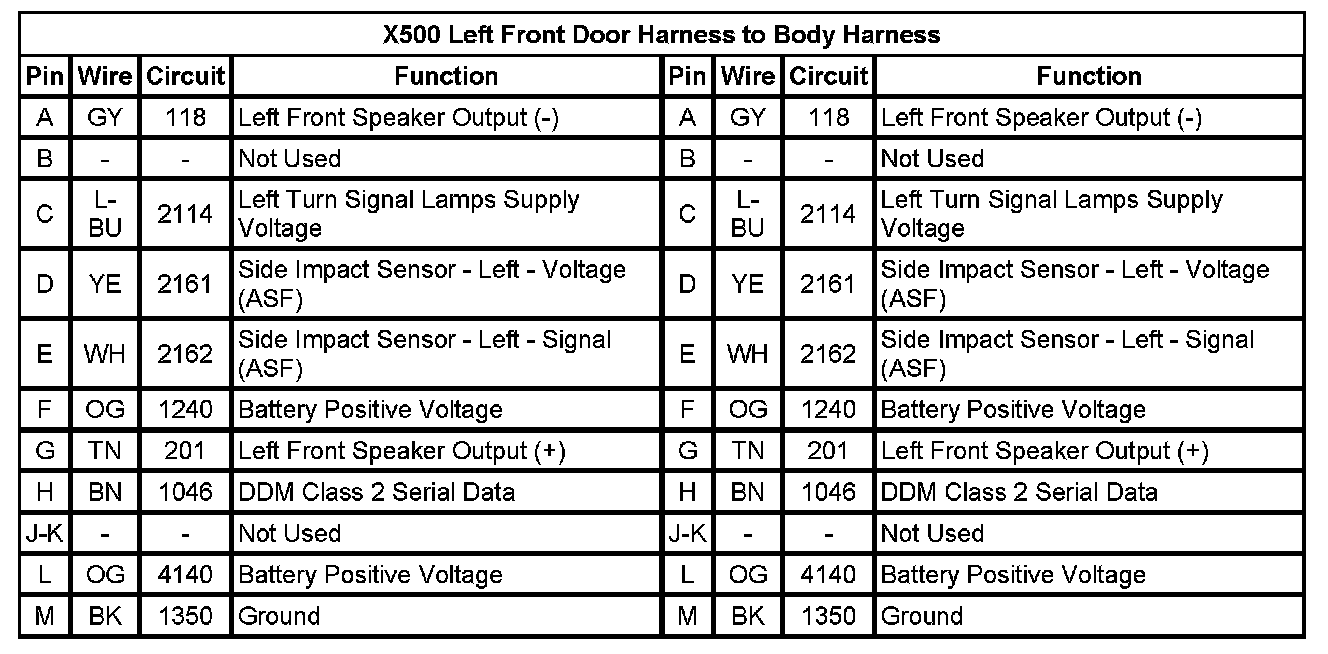

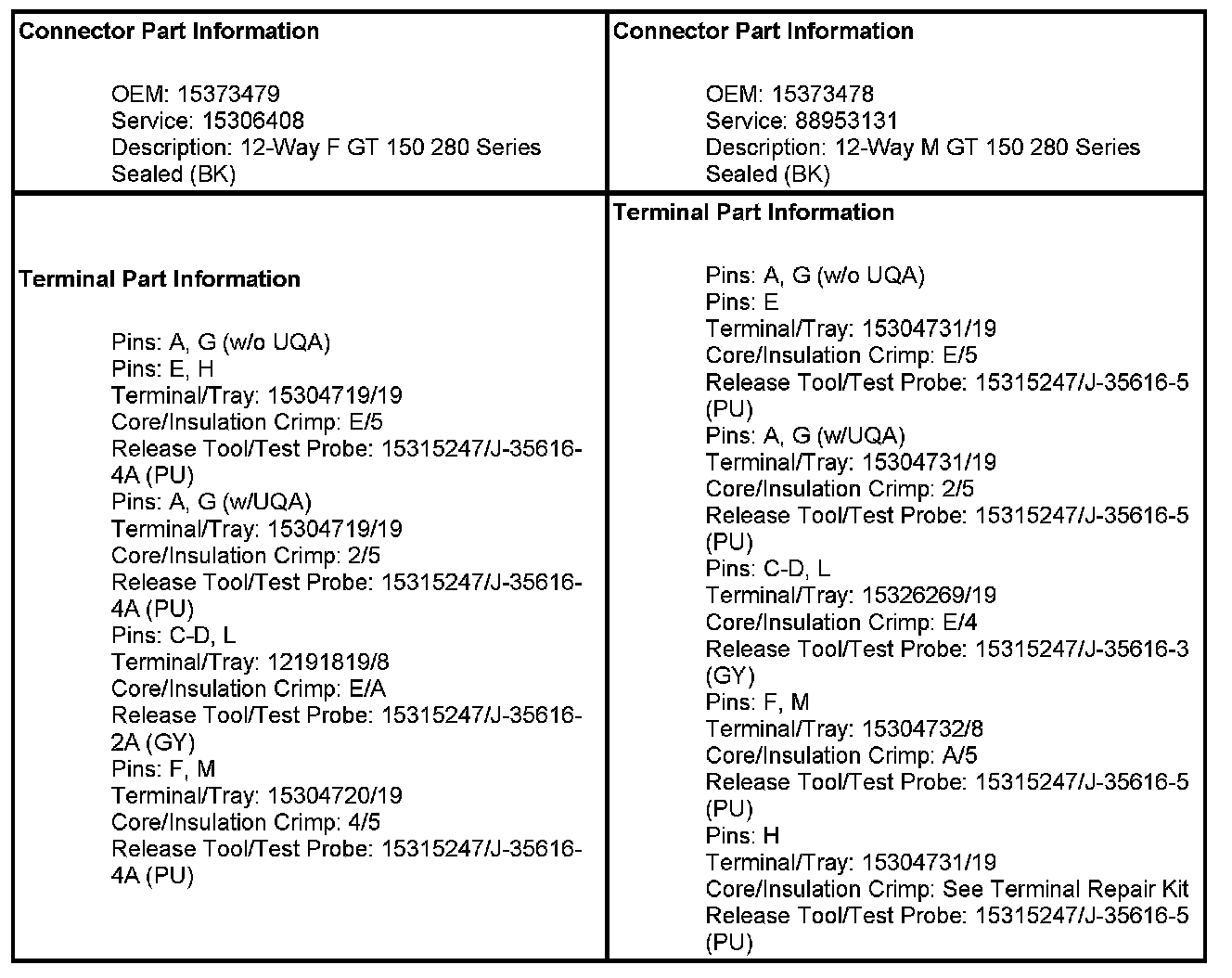

X500 Left Front Door Harness to Body Harness
