X201

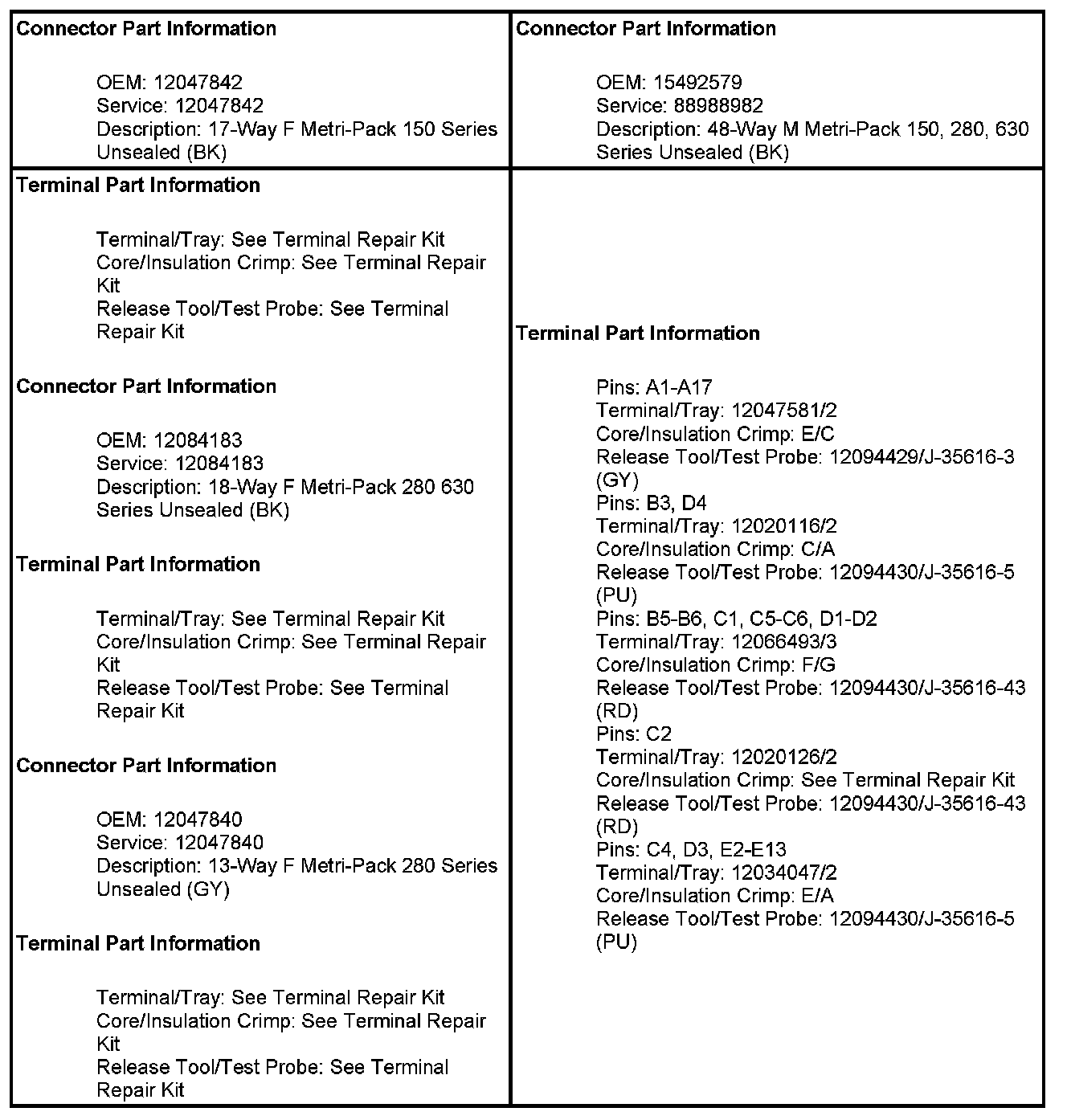

Inline Harness Connector End Views

X201 Steering Column Harness to I/P Harness

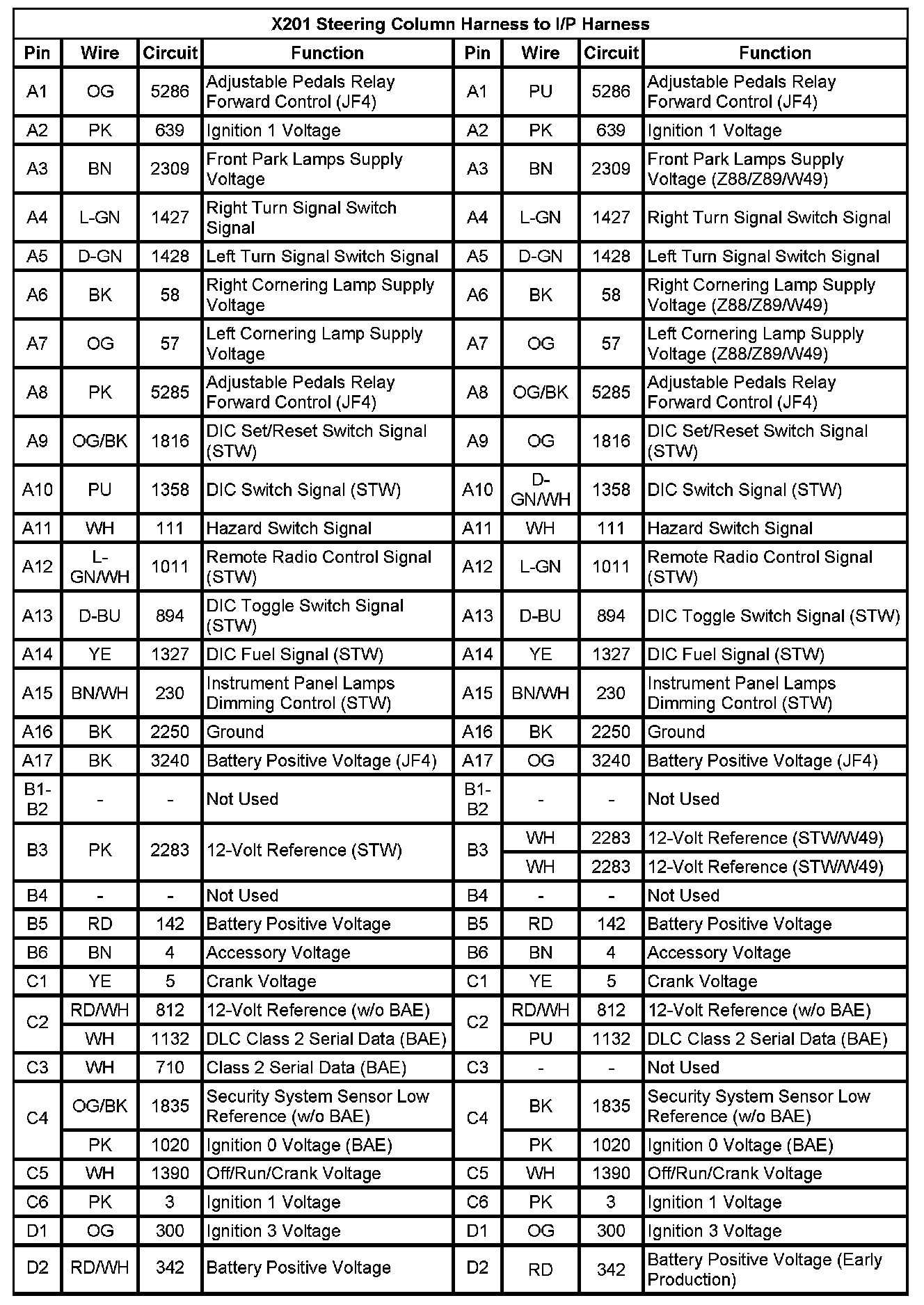

X201 Steering Column Harness To I/P Harness (Pin A1 To D2):

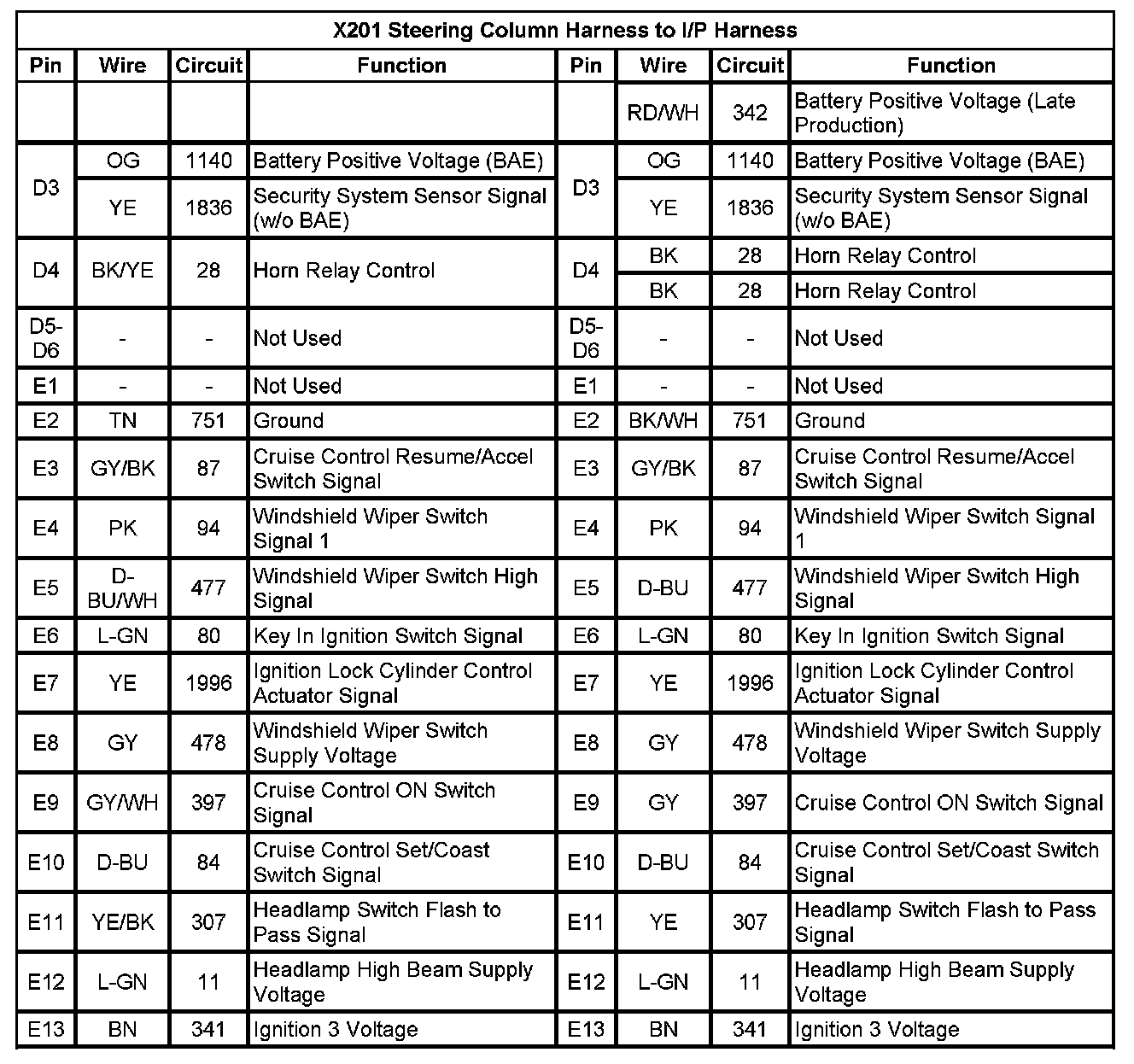

X201 Steering Column Harness To I/P Harness (Pin D3 To E13):
