Instrument Cluster / Carrier



Component Connector End Views - Continued

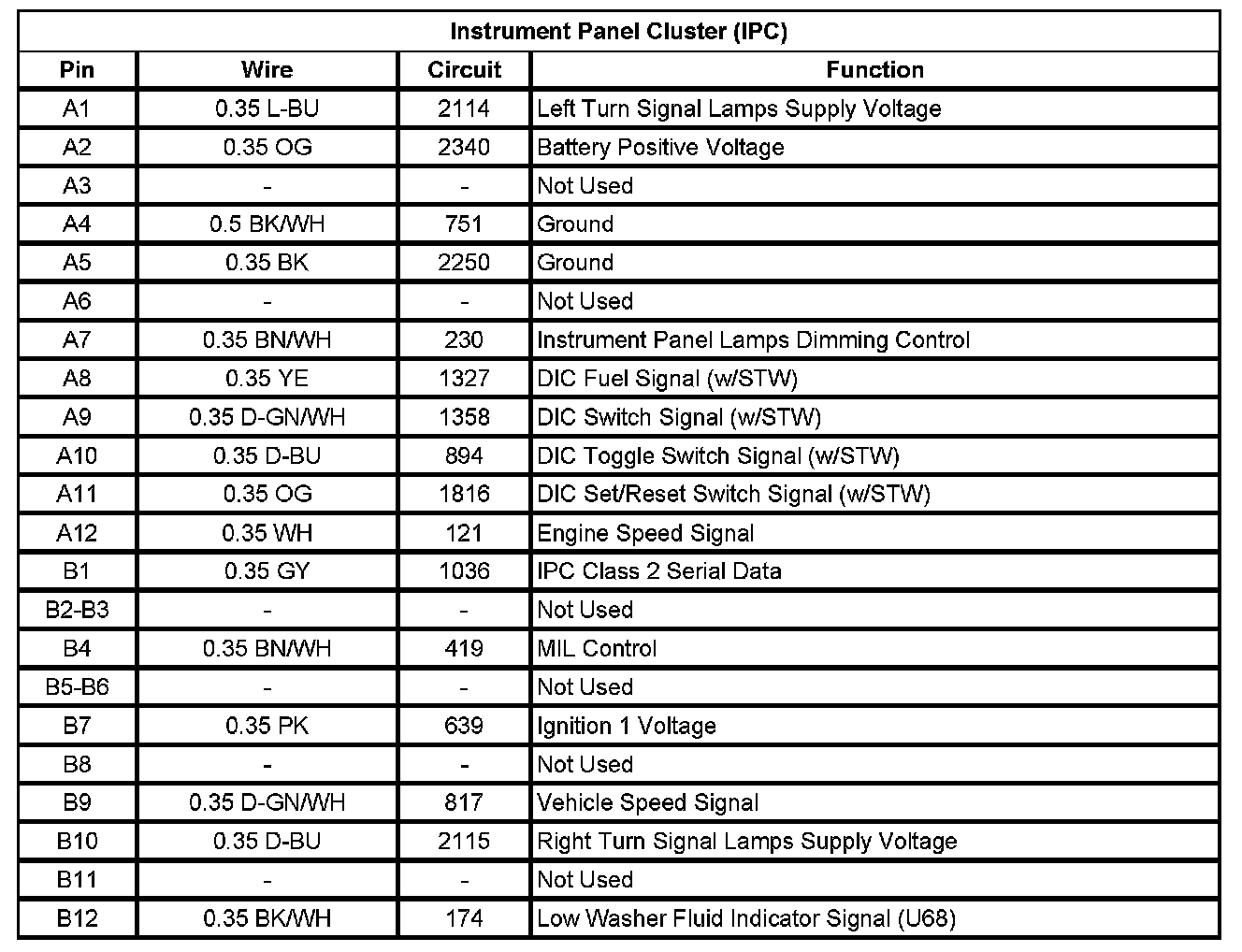

Instrument Panel Cluster (IPC)
