Home >> Chevrolet >> 2008 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams

Radio/Stereo: Diagrams



Component Connector End Views

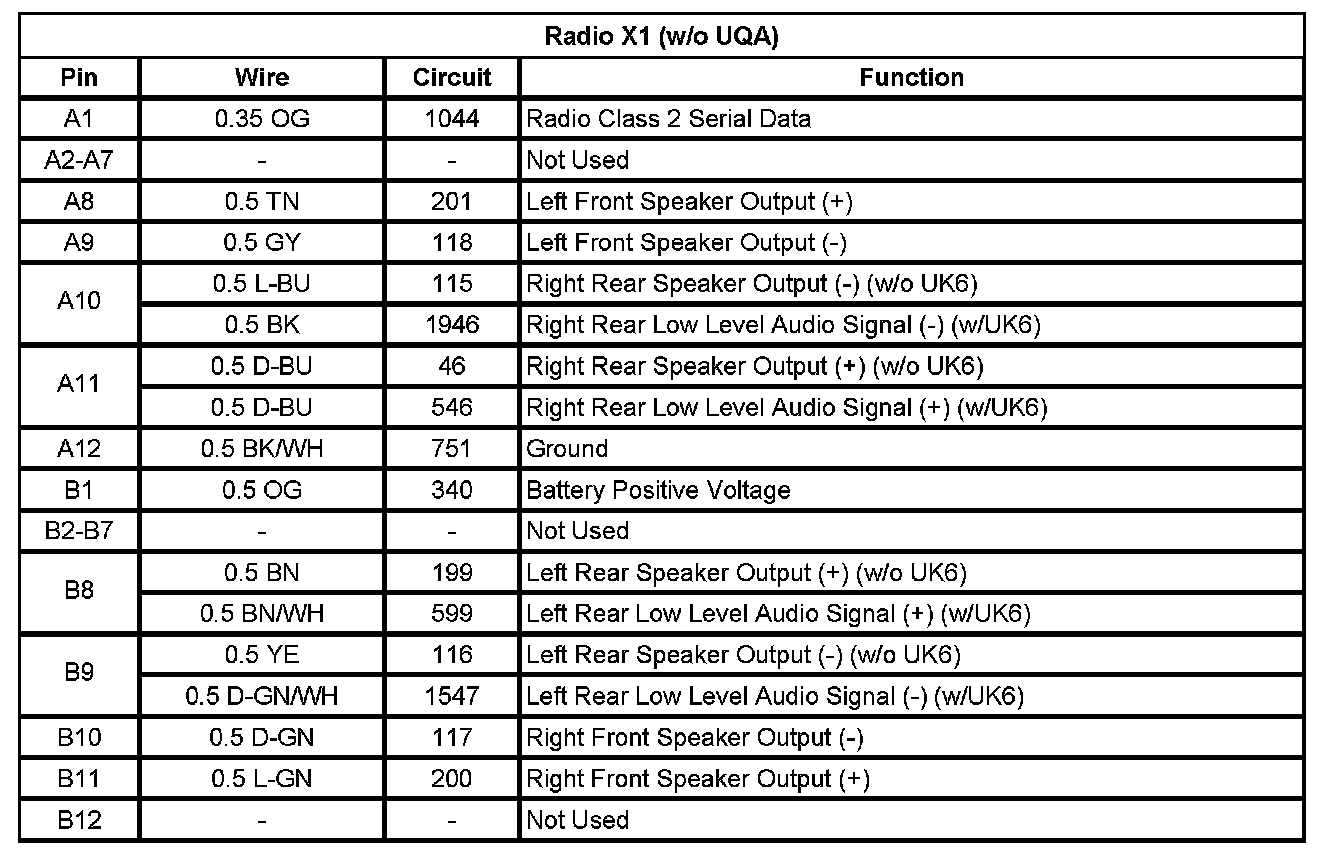

Radio X1 (w/o UQA)

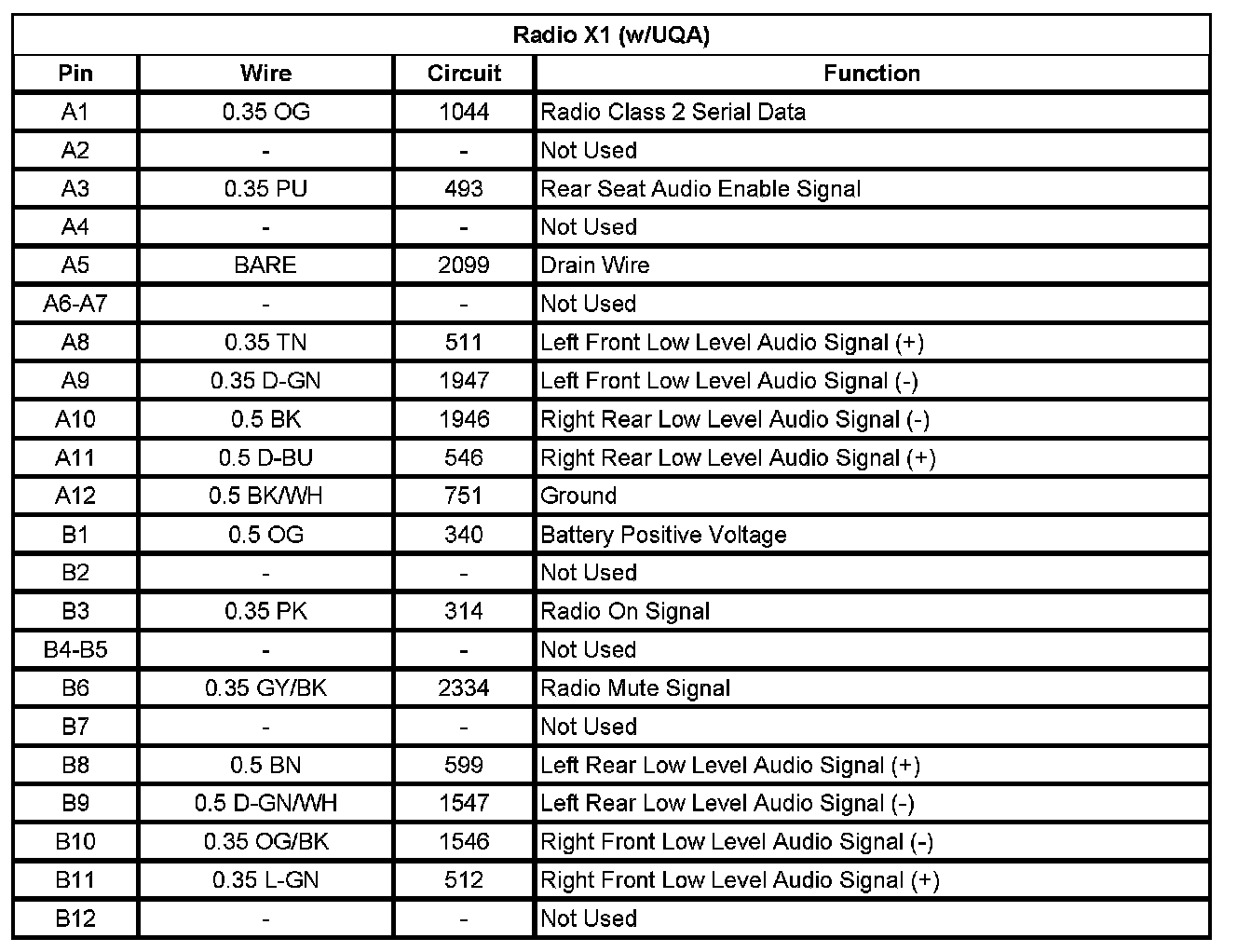

Radio X1 (w/UQA)














Radio X2














Digital Radio Receiver (w/U2K)
