Removal Procedure

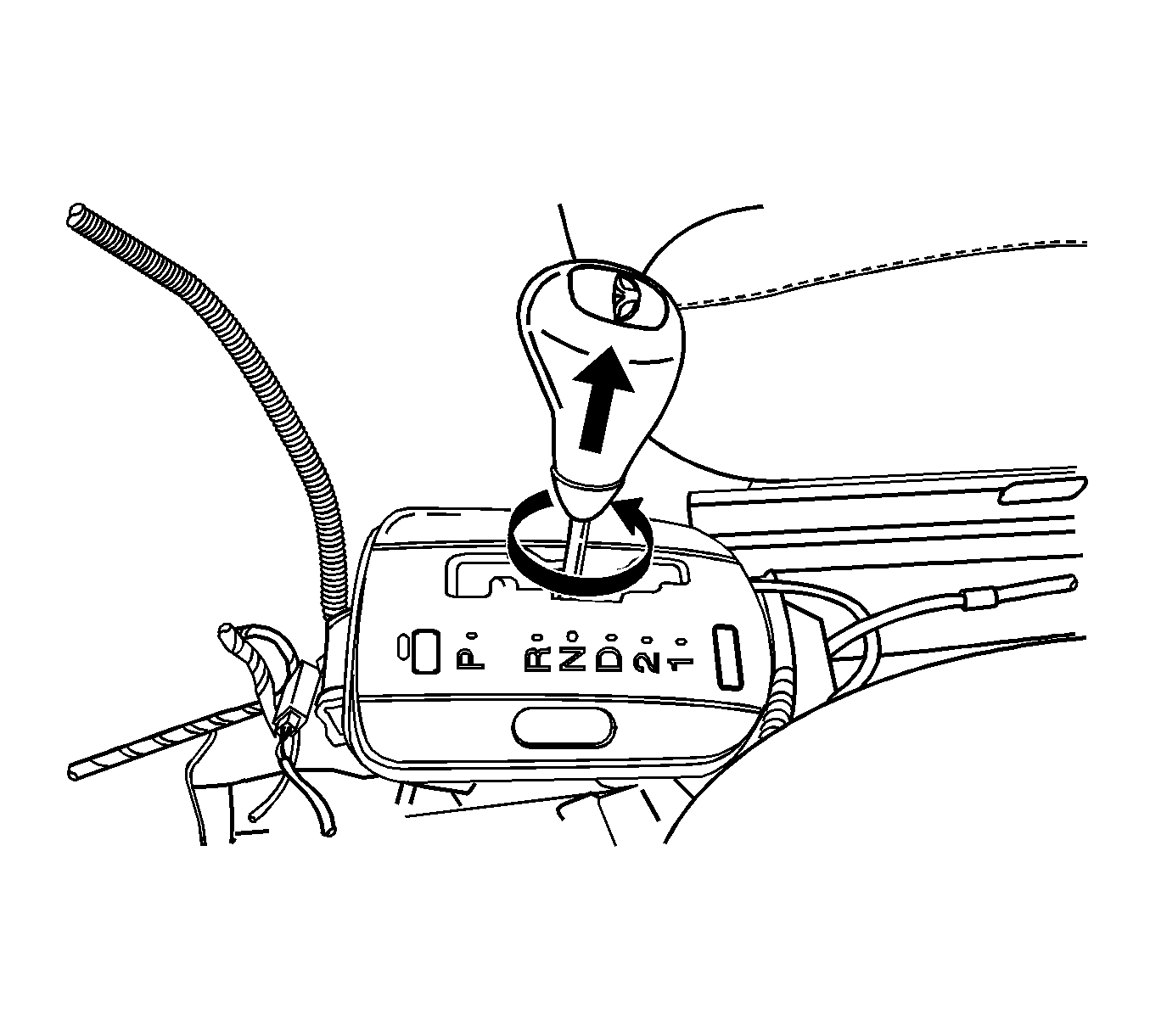

Fig 1: Removing Shift Select Lever Knob

GM1245828

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution .

Disconnect the negative battery cable.
Remove the floor console. Refer to Front Floor Console Replacement .
Remove the shift select lever knob.

Fig 2: Identifying Shift Lever Electrical Connectors

GM1376104

Courtesy of GENERAL MOTORS CORP.

Disconnect the connectors.
Remove the shift select cover from the shift select housing.
