Installation Procedure

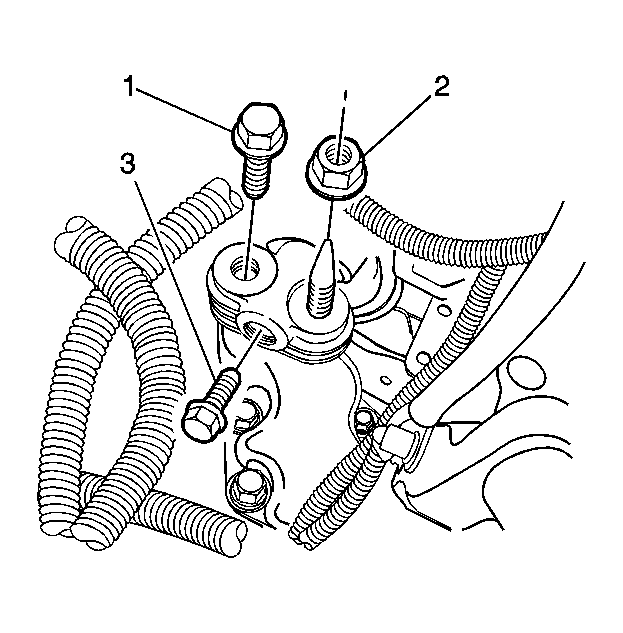

Fig 1: View Of Transaxle Mounting Bracket Cage Bolts And Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the cage bolts (1, 3) and nut (2) to the mounting bracket.
Tighten:
- Tighten the bolt (3) to 110 N.m (81 lb ft) .
- Tighten the bolt (1) to 65 N.m (48 lb ft) .
- Tighten the nut (2) to 65 N.m (48 lb ft) .

Fig 2: View Of Left Transaxle Mounting Bracket And Bolts

Courtesy of GENERAL MOTORS CORP.

Install the left transaxle mounting bolts.
Tighten: Tighten the bolts to 48 N.m (35 lb ft) .

Fig 3: View Of J 28467-B

Courtesy of GENERAL MOTORS CORP.
