Valve Body
The valve body performs the following tasks:
- Generates the line pressure needed for actuating the shift elements
- Actuates the individual shift elements by way of the clutch valves
- Assures limited operation of the automatic transaxle in the event of the electronics failing
- Actuates the lock-up clutch
- Generates the lubricating pressure for the transaxle

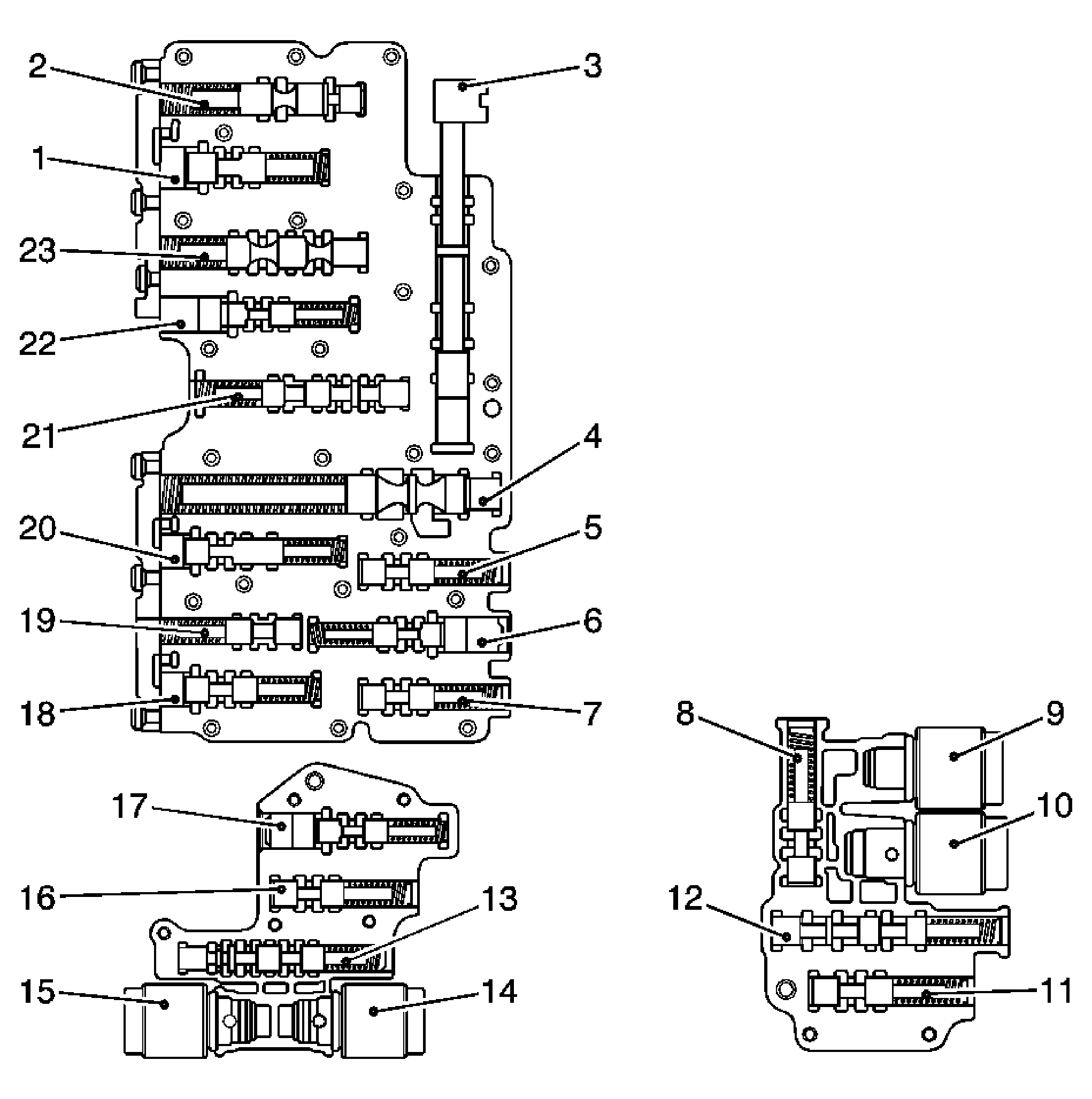

| Callout | Component Name |
|---|---|
| 1 | Lock-up Clutch Valve |
| 2 | Lubrication Valve |
| 3 | Manual Valve |
| 4 | Line Pressure Control Valve |
| 5 | Reduction Valve |
| 6 | Clutch Valve D |
| 7 | Holding Valve D |
| 8 | Converter Shift Valve |
| 9 | Solenoid Valve |
| 10 | Pressure Control Solenoid Valve |
| 11 | Holding Valve F |
| 12 | Selector Valve |
| 13 | Safety Valve |
| 14 | Solenoid Valve |
| 15 | Pressure Control Solenoid Valve |
| 16 | Holding Valve C |
| 17 | Clutch Valve C |
| 18 | Clutch Valve B |
| 19 | Holding Valve B |
| 20 | Clutch Valve E |
| 21 | Holding Valve E |
| 22 | Clutch Valve F |
| 23 | Converter Pressure Valve |
